F2000TSM-TH-M201

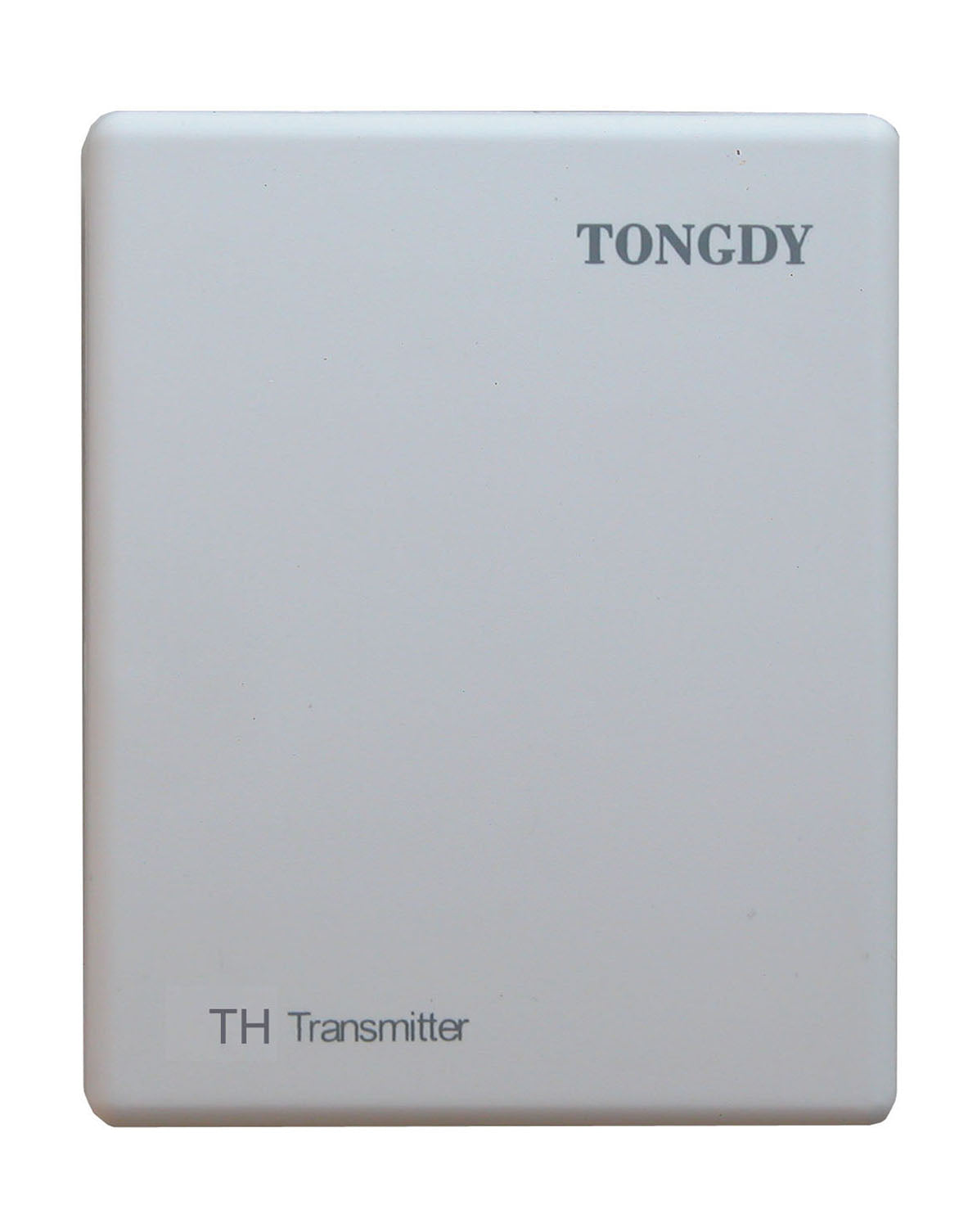

Wall Mount Temperature + RH Transmitter
Accurate real-time measurement with flexible outputs, Modbus communication and compact wall-mount design for easy installation.
Note: All Tongdy monitors and controls ship direct from the factory. Please allow 10-15 business days for shipping and handling.
RS485 interface with Modbus RTU supports seamless system compatibility. Analog outputs (0–10 VDC, 4–20 mA, 0–5 VDC) expand its flexibility. The accompanying mobile app offers data visualization, display, and download functions, complemented by a six-light, three-color indicator that clearly communicates environmental conditions. This transmitter consolidates sensing, recording, and networked monitoring into a single, reliable solution for professional applications.
-
Designed for accurate temperature and relative humidity monitoring
-
Provides up to 2 analog outputs: 0–10 VDC / 4–20 mA / 0–5 VDC for temperature and humidity
-
Automatic humidity correction across the full operating range
-
Supports custom point setup for temperature and humidity adjustments
-
Modbus RS485 communication for building systems integration
-
Compact, simple wall-mount design for easy installation
| Parameters | Temperature | Relative Humidity |
| Sensor |
Digital integrated temperature and humidity sensor |
|
| Measuring range | -20~60℃(-4~140℉) (default) | 0 -100%RH |
| Accuracy | ±0.5℃ | ±4.0%RH (20%-80%RH) |
| Stability | <0.15℃ per year | <0.5%RH per year |
| Storage environment | 0~50℃(32~120℉) / 20~60%RH | |
| Housing/IP Class | PC/ABS fireproof material/ IP40 | |
| Communication |
RS485 (Modbus RTU) |
|
| Analog Output | 0~10VDC(default) or 4~20mA (selectable by jumpers) | |
| Power supply | 24VAC/VDC±10% |
| Net weight /Dimensions |
180g, (W)100mm×(H)80mm×(D)28mm |
| Installation standard | 65mm×65mm or 2”×4”wire box |
| Approval | CE-Approval |
