850032

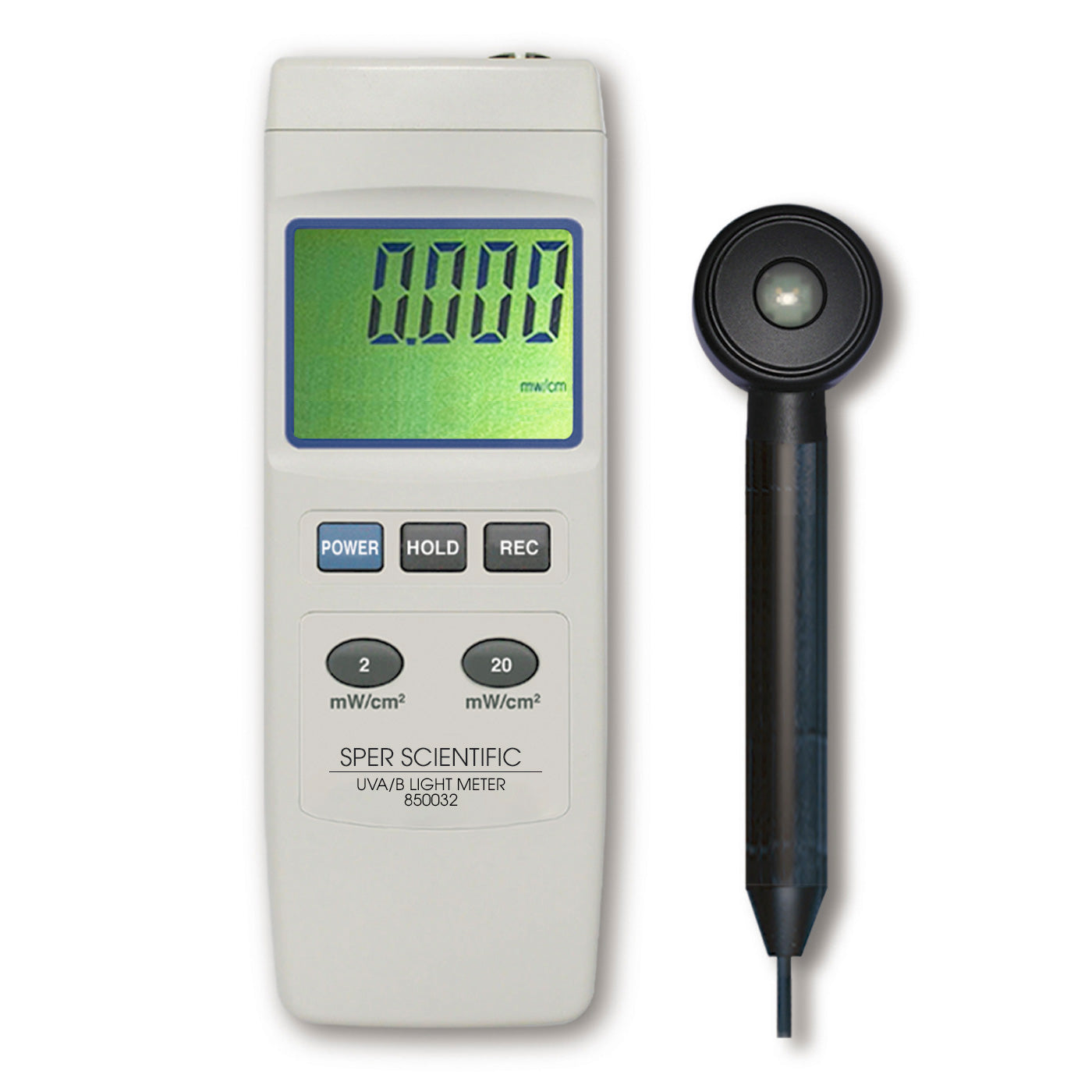

UV Light Meter UVA/UVB
Our UVA/B Light Meter provides accurate and reliable measurements of UVA and UVB irradiance, making it an essential tool for a wide variety of  industrial, environmental and other applications.

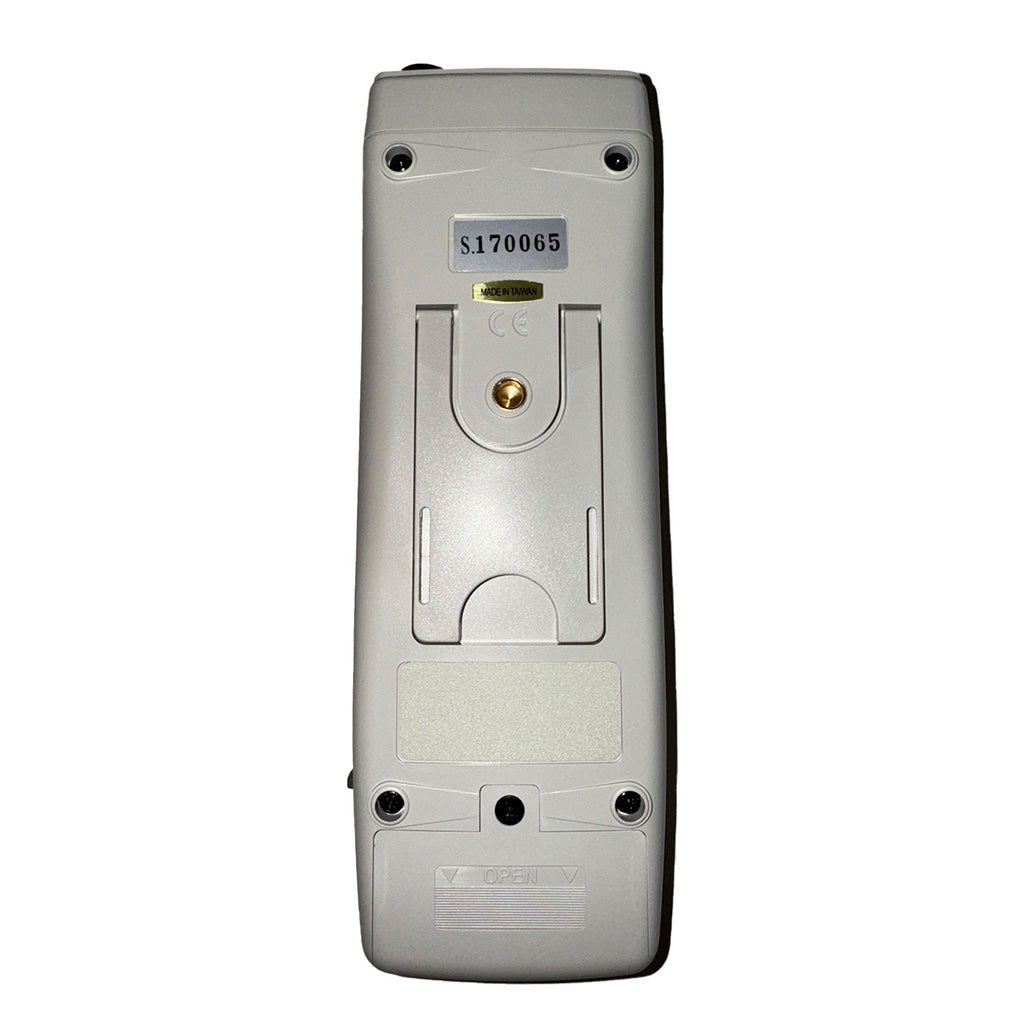

This instrument features a tripod mount, and we recommend using a tripod for the most stable and accurate readings.
The UV Light Meter UVA/UVB is engineered for precise UVA and UVB irradiance measurement within the 260 nm to 390 nm range, enabling accurate and focused readings. It offers two versatile measurement ranges:Â
- 2 mW/cm² and 20 mW/cm²—with high accuracy of ±(4% FS + 2 digits)
- Fine resolutions down to 0.001 mW/cm² for dependable results.
Its large LCD display, data hold feature and memory recall for maximum and minimum values enhance utility. Compact and robust, this device is designed for reliable operation in demanding environments.
-
UVA/UVB Measurement
Specially designed for UVA and UVB irradiance measurement with a UV sensor band pass of 260 nm to 390 nm, ensuring precise and targeted readings. -
Wide Measurement Range
Offers two measurement ranges of 2 mW/cm² and 20 mW/cm², providing versatility for different measurement needs. -
High Accuracy and Resolution
Features high accuracy of ±(4% FS + 2 digits) and resolutions of 0.001 mW/cm² and 0.01 mW/cm², ensuring precise and repeatable measurements. -
User-Friendly Design
Equipped with a large LCD display for easy readout, data hold function, and memory recall for maximum and minimum values. The compact and durable housing allows for easy operation and long-lasting use. -
Advanced Connectivity
Includes an RS232/USB computer interface for data output, enhancing data management and integration with other systems.
Additional Features:
- Auto power off saves battery life
- Manual zero adjustment by push button
- Over range indication ("- - - -")
- Sample time: Approx. 1 second
- Memory recall for maximum and minimum readings

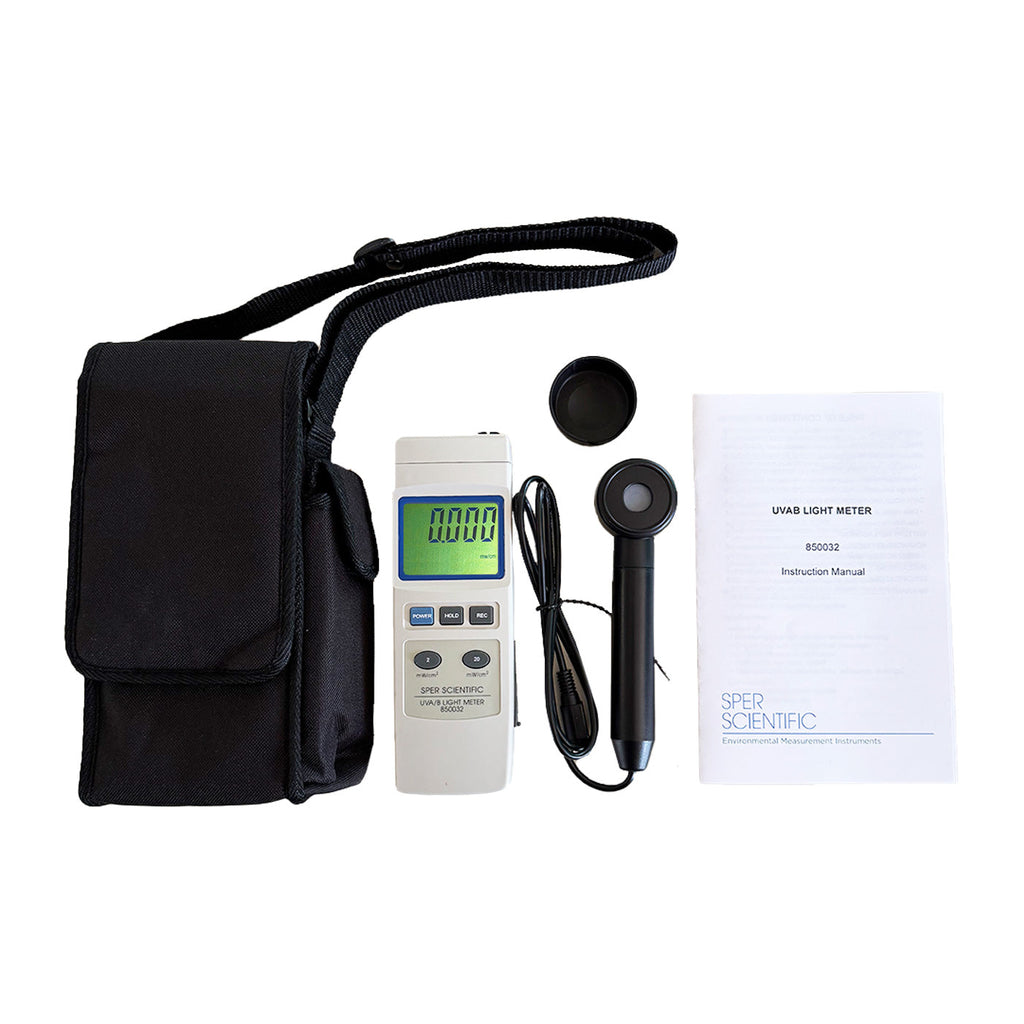

 Accessories Included:
- Instruction Manual: 1 PC

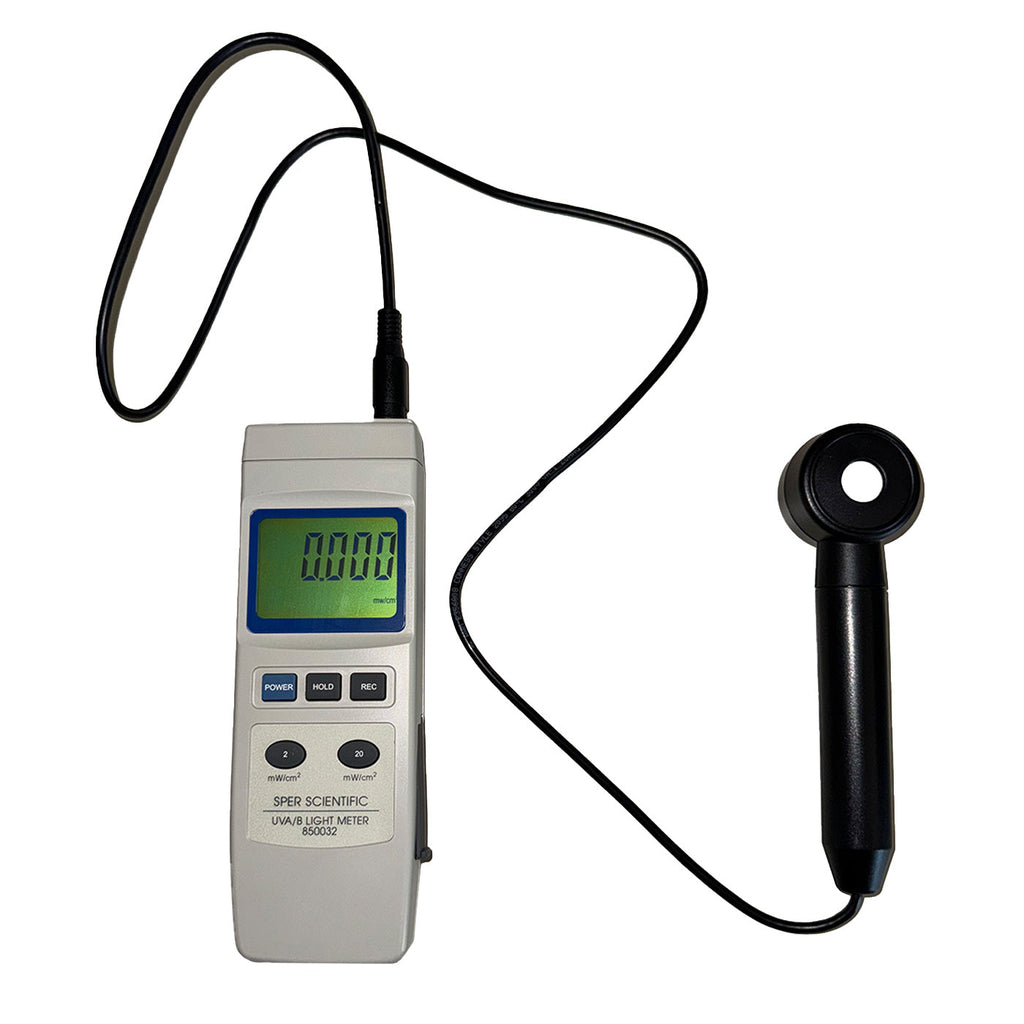

- UV Sensor Probe: 1 PC
Optional Accessories:
- RS232 Cable (UPCB-02)
- USB Cable (USB-01)
- Data Acquisition Software (SW-U801-WIN)
- AC to DC 9V Adapter
- Soft Carrying Case (CA-05A)
- Hard Carrying Case (CA-06)
Applications:
-
Industrial Monitoring
Measure UVA and UVB irradiance in industrial processes. -
Environmental Studies
Assess UV levels in environmental research. -
Healthcare
Monitor UV irradiance in healthcare settings for sterilization and sanitation.
*Certification Option
N.I.S.T. traceable Certificate of Calibration available at additional cost (Select option above).
| Display | LCD size : 51 mm x 37 mm. Maximum indication 1999 counts. |
| Measurement ranges & resolution | Range 1 : 2 mW/cm^2:Â 1.999 mW/cm^2 x 0.001 mW/cm^2 Range 2 : 20 mW/cm^2:Â 19.99 mW/cm^2 x 0.01 mW/cm^2 |
| UV sensor spectrum | Band pass 260 nm to 390 nm. |
| Accuracy | ± ( 4 % FS + 2 dgt ). FS: full scale * Calibration is executed under the UVA light & and compare with the standard UVA light meter * Spec. tested under the environment RF Field Strength less than 3 V/M & frequency less than the30 MHz only |
| Sensor Structure Buttons. Switch | / |
| Sample Time | Approx. 1 sec. |
| Sensor Structure | The exclusive UV photo sensor with the cosine correction filter. |
| Over Range indication | Indication of " ". |
| Operating Temperature | 0 to 50 . ℃ |
| Operating Humidity | Less than 85% R.H. |
| Power Supply | DC 9V battery, 006P , MN 1604 (PP3) or equivalent DC 9V adapter input. @ AC/DC power adapter is optional |
| Power Consumption | Approx. DC 6 mA. |
| Size | Main instrument: 200x68x30 mm (7.9x2.7x1.2 inch ) Sensor probe head: 45 mm dia x 32 mm Sensor probe handle: 125 x 24 mm dia. |
| Circuit | / |
| Spectral response range of sensor | / |
| Memory Recall | / |
| Zero Adj. | / |
| Power off | / |

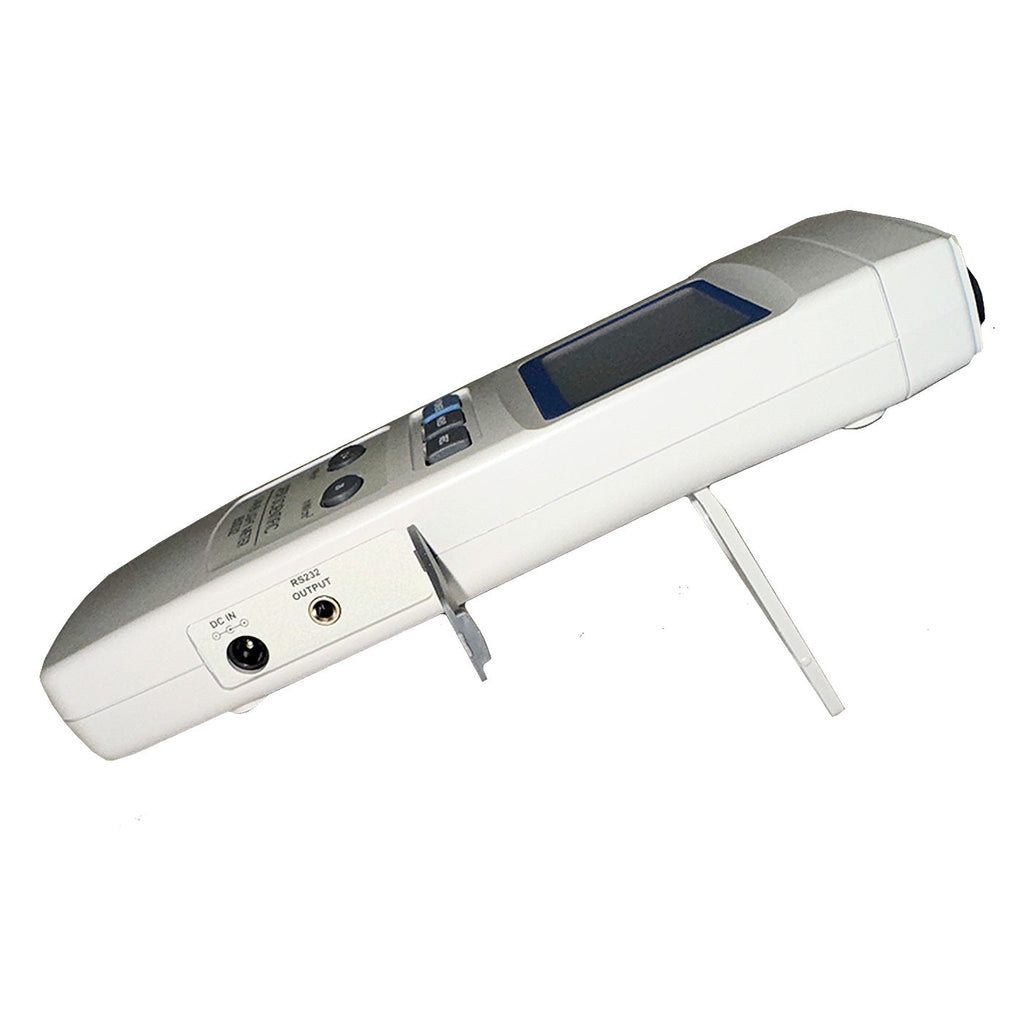

| Data Output | RS 232/USB PC serial interface |
| Power Current | / |
| Weight | 383 g / 0.55 LB (including battery) |
| Applications | / |
| Accessories Included |
Instruction manual: 1 PC |
| Optional accessories |
AC to DC 9V adapter |
