SPSUV-9000 Series Double Beam Spectrophotometer

High-Performance Spectroscopy with Exceptional Stability and Precision.

FREE SHIPPING

Note:
Please allow 2-3 weeks for order processing and delivery on all Sper UV/Visible Light Spectrophotometers and accessories.

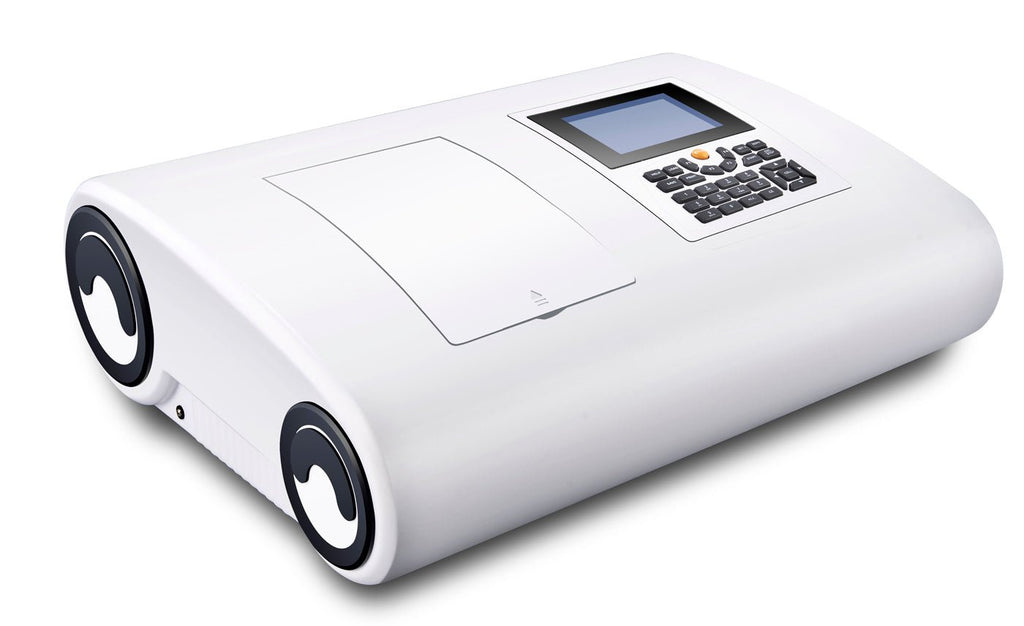

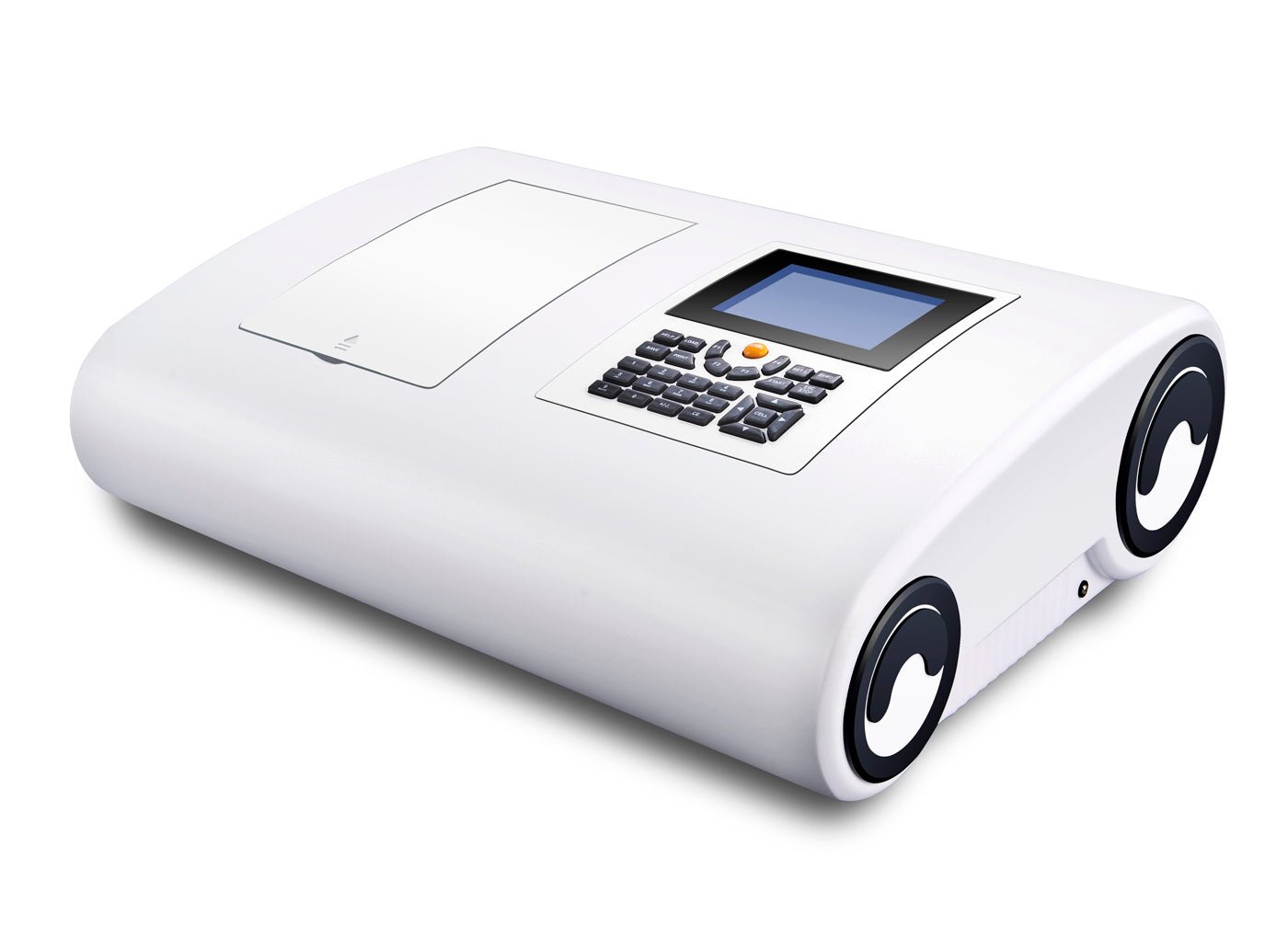

The SPSUV-9000 Series spectrophotometers are advanced double beam instruments featuring a wide-screen interface and a unique long light path design to ensure superior stability, resolution, and accuracy.

Engineered with a 520 mm optical path and housed on a 16 mm die-cast aluminum base, they are ideal for laboratories that demand high-quality and reliable results. Whether used for standard curve analysis, DNA/protein testing, or kinetic studies, the UV-9000 Series offers a versatile and user-friendly experience. All units are calibrated and include a factory calibration report.

Key Features:

  • Double Beam Optical Design
    Minimizes stray light and circuit fluctuations for improved stability and accuracy.

  • Extended 520 mm Light Path
    Enhances resolution and supports bandwidths down to 0.5 nm.

  • 16 mm Die-Cast Aluminum Optical Base
    Provides high mechanical rigidity and long-term optical stability.

  • Advanced Calibration System
    Automatic calibration for wavelength, baseline and dark current ensures consistent performance.

  • Multi-Functional Interface
    Supports wavelength scanning, standard curve, multi-wavelength analysis, kinetics, and DNA/protein testing directly from the unit.

  • PC Software Integration
    USB connectivity with included software allows advanced data analysis and remote control.

  • 6-Inch LCD Display
    Large, integrated screen displays spectra and test data in real time without a PC.

Shipping Weight and Dimensions

SPSUV-9000 Series
37 kg / 81 lb 9.1 oz
84 x 64 x 44cm / 33 1/8" x 25 2/8" x 17 2/8"

Includes:

Spectrophotometer
Factory calibration report
PC software
1cm Glass cuvettes (4)
1cm Quartz cuvettes (2)
Power cord
User’s manual
Dust cover

Model SPSUV-9000 SPSUV-9000A SPSUV-9000S
Optical System Double Beam (1200 Lines/mm Grating)
Wavelength Range 190-1100nm
Bandwidth 1.8nm 1nm 0.5/1/2/4 nm
Wavelength Accuracy ±0.1nm at D2 656.1nm, ±0.3nm at allrange
Wavelength Repeatability 0.1nm
Photometric Accuracy ±0.2%T(0-100%T)
Photometric Repeatability ≤0.1%T(0-100%T)
Photometric Range -0.3-3A, 0-200%T, 0-9999C
Stability ≤0.0005A/h at 250nm, 500nm
Stray Light ≤0.03%Tat 220nm, 360nm
Output USBport & Parallel Port
Display 320*240 Dots LCD
Light Source W Lamp & D2Lamp
Power Requirements AC110/220V, 50/60Hz
