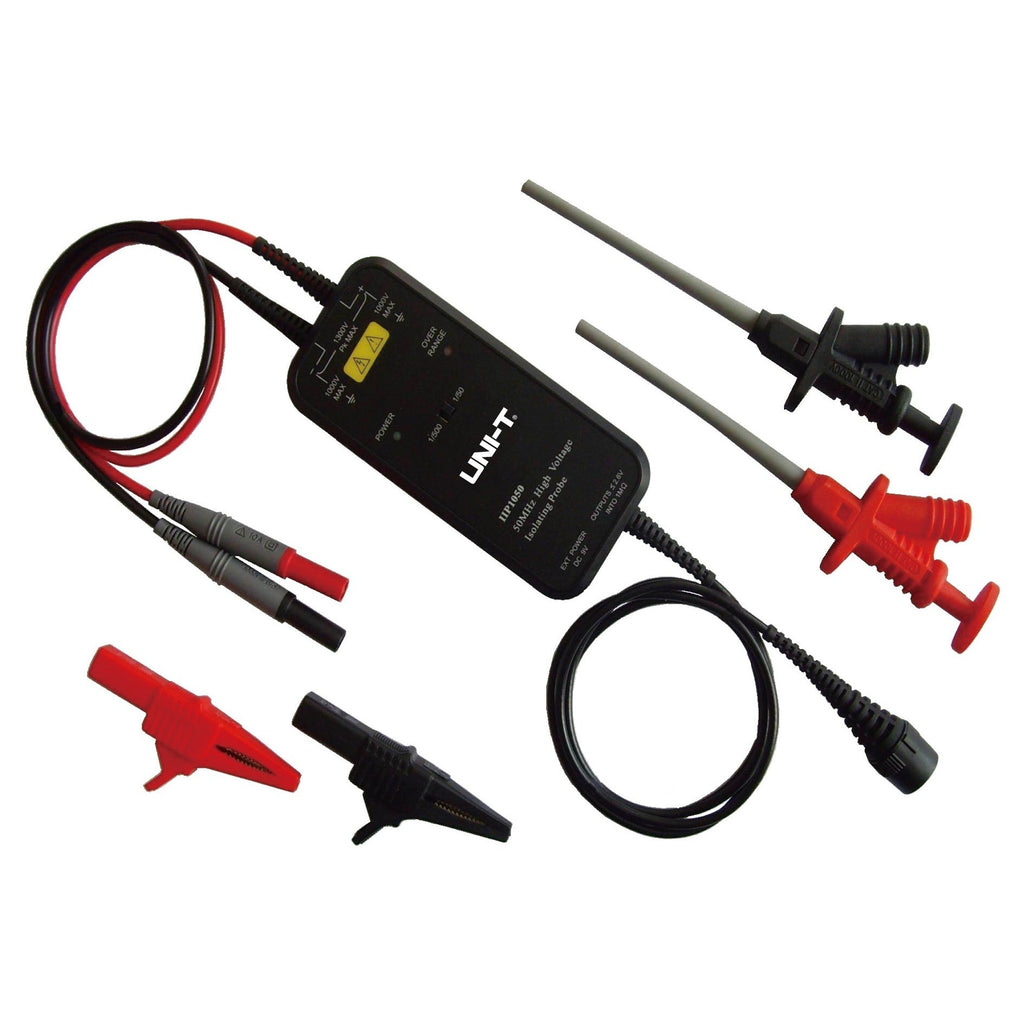

UT-P36 100 MHz 200:1/500:1 Differential Oscilloscope Probe
Uni-Trend US

190500100122X

UT-P36 100 MHz 200:1/500:1 Differential Oscilloscope Probe

Share this Product

Description

100 MHz differential oscilloscope probe (200:1/500:1 attenuation) for safely measuring floating voltages across motor drives, power converters and bridge circuits.

Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.

  • 100MHz Bandwidth — Captures signal content up to 100MHz for accurate waveform measurement.
  • 200:1/500:1 Attenuation — Attenuation ratio suited to the probe measurement range.
  • 560VDC+PeackAC / 5600VDC+Peak AC, Accuracy: 2% Maximum Input Voltage — Rated input voltage for safe operation.
  • Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
CAT Rating CAT I 2800 V / CAT II 1400 V
Weight 160 g
Storage Temperature -10 °C - 45 °C
Bandwidth 100 MHz
Probe Attenuation 200:1, 2000:1
Probe Max Voltage 5600Vpp
Rise Time 3.5ns
Cable Length 30cm input / 90cm output
Input Capacitance 2 pF
Input Resistance 32 MΩ
Operating Temperature 0 °C - 40 °C
Noise ≤ 1.5mVrms (1/200); ≤ 1mVrms (1/2000)
Differential Input Voltage 5600Vpp
Common Mode Voltage 2800Vrms
CMRR ≥ 80 dB DC, ≥ 60 dB 100 Hz, ≥ 50 dB 1 MHz
