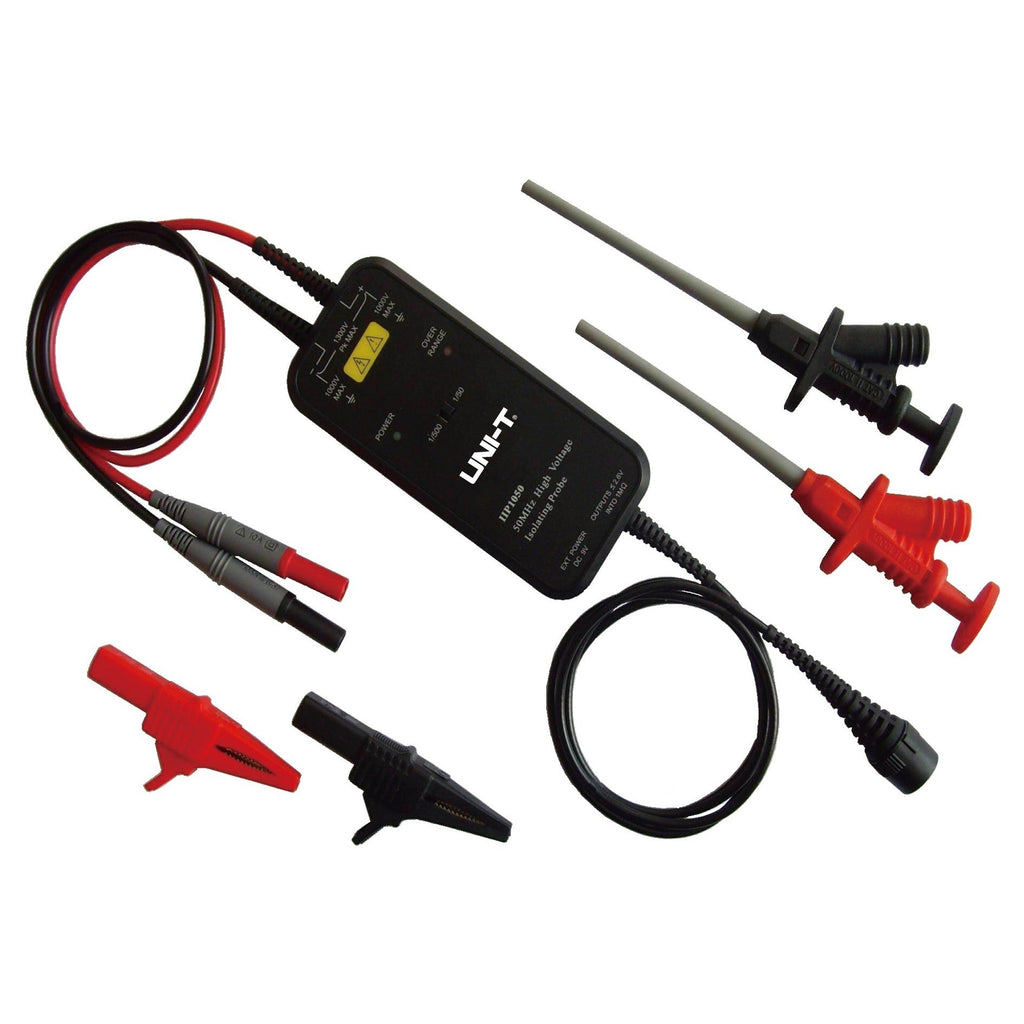

UT-P35 50 MHz 50:1/500:1 Differential Oscilloscope Probe
Uni-Trend US

190500100119X

UT-P35 50 MHz 50:1/500:1 Differential Oscilloscope Probe

Share this Product

Description

50 MHz differential oscilloscope probe (50:1/500:1 attenuation) for safely measuring floating voltages across motor drives, power converters, and bridge circuits.

 Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.

  • 50MHz Bandwidth — Captures signal content up to 50MHz for accurate waveform measurement.
  • 50:1/500:1 Attenuation — Attenuation ratio suited to the probe measurement range.
  • 130VDC+Peak AC / 1300VDC+Peak AC, Accuracy: 2% Maximum Input Voltage — Rated input voltage for safe operation.
  • Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
CAT Rating CAT I 1000 V / CAT II 600 V
Weight 160 g
Storage Temperature -10 °C - 45 °C
Bandwidth 50 MHz
Probe Attenuation 50:1, 500:1
Probe Max Voltage 1300Vpp
Rise Time 7ns
Cable Length 60cm input / 90cm output
Input Capacitance 3.5 pF
Input Resistance 8 MΩ
Operating Temperature 0 °C - 40 °C
Noise ≤ 1.5mVrms (1/50); ≤ 1mVrms (1/500)
Differential Input Voltage 1300Vpp
Common Mode Voltage 1000Vrms
CMRR ≥ 80 dB DC, ≥ 60 dB 100 Hz, ≥ 50 dB 1 MHz
