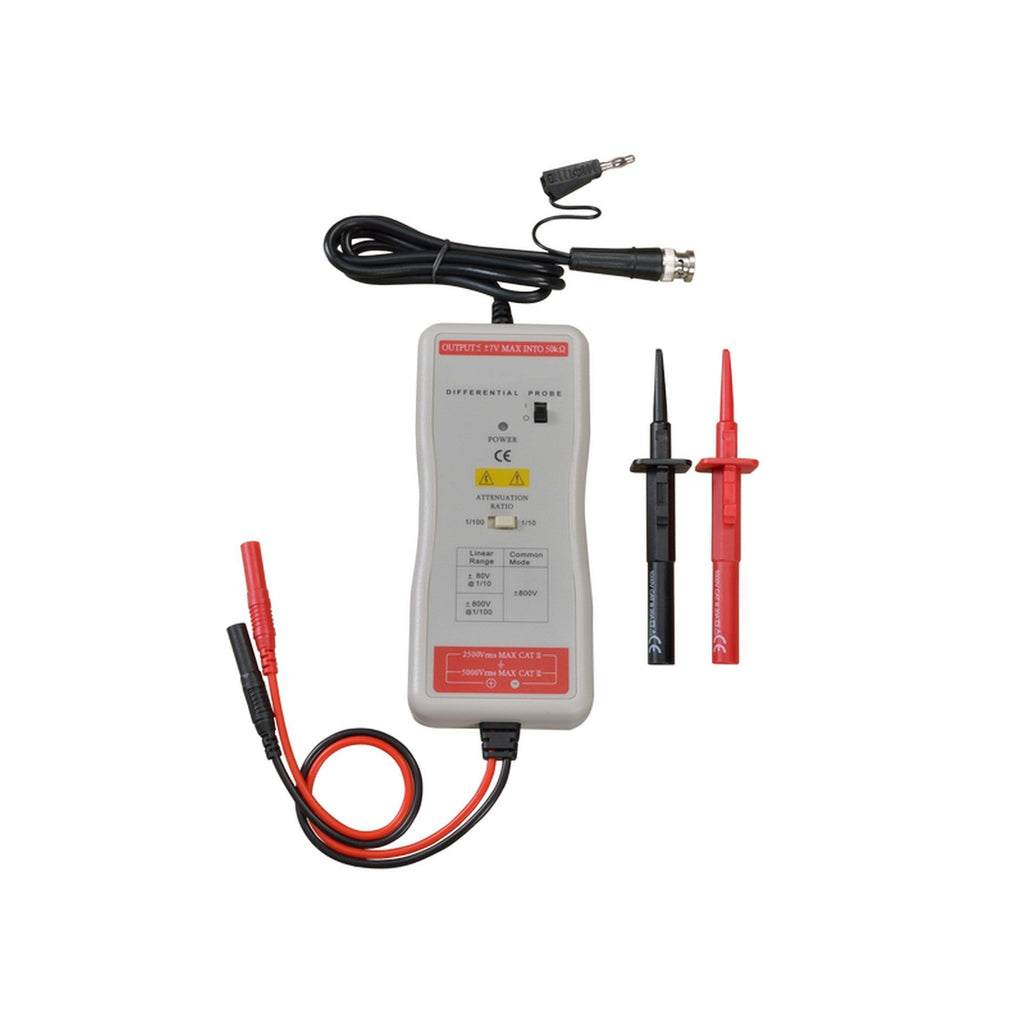

UT-P31 100 MHz 10:1/100:1 Differential Oscilloscope Probe
Uni-Trend US

190500300015

UT-P31 100 MHz 10:1/100:1 Differential Oscilloscope Probe

Share this Product

Description

100 MHz differential oscilloscope probe (10:1/100:1 attenuation) for safely measuring floating voltages across motor drives, power converters and bridge circuits.

Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.

  • 100MHz Bandwidth — Captures signal content up to 100MHz for accurate waveform measurement.
  • 10:1/100:1 Attenuation — Divides the input signal for measuring higher-voltage circuits.
  • 1500Vpp Maximum Input Voltage — Rated input voltage for safe operation.
  • Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
CAT Rating CAT III
Dimensions 69 × 26 × 165 mm
Bandwidth 100 MHz
Probe Attenuation 100:1, 1000:1
Probe Max Voltage 1500Vpp
Rise Time 3.5ns
Input Capacitance 1 pF
Input Impedance 8 MΩ / 1 pF
Operating Temperature 0 °C - 50 °C
Differential Input Voltage 1500Vpp
Common Mode Voltage 5kVrms
CMRR > 80 dB @ 60 Hz, > 60 dB @ 100 Hz, > 50 dB @ 1 MHz
