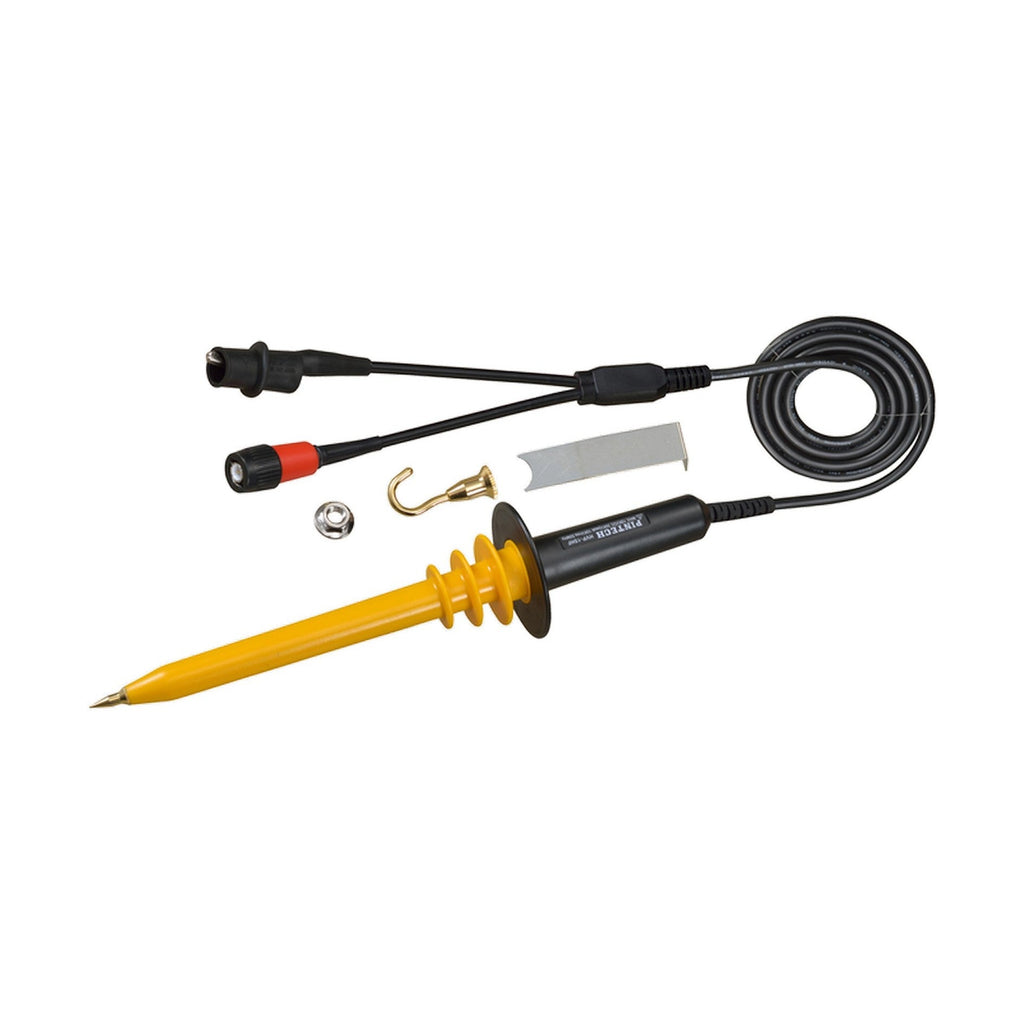

UT-P21 50 MHz 1000:1 High Voltage Oscilloscope Probe
Uni-Trend US

190500300013

UT-P21 50 MHz 1000:1 High Voltage Oscilloscope Probe

Share this Product

Description

40MHz (-3dB) high-voltage passive probe (1000:1 attenuation) for measuring power supply rails, inverters and high-voltage circuits up to several kV.

Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.

  • 40MHz (-3dB) Bandwidth — Captures signal content up to 40MHz for accurate waveform measurement.
  • 1000:1 Attenuation — Attenuation ratio suited to the probe measurement range.
  • DC 15kVrms/AC 10kV Maximum Input Voltage — Rated input voltage for safe operation.
  • Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
Weight 250 g
Dimensions Φ80mm×340mm
Storage Temperature -20 °C - 70 °C
Bandwidth 40 MHz
Probe Attenuation 1000:1
Probe Max Voltage DC 10 kV / AC 7kVrms
Rise Time ≤ 8.8ns
Connector Type BNC
Cable Length 200cm
Input Capacitance 3.0 pF
Input Resistance 100 MΩ
Compensation Range 5 pF-50 pF
Operating Temperature 0 °C - 50 °C
