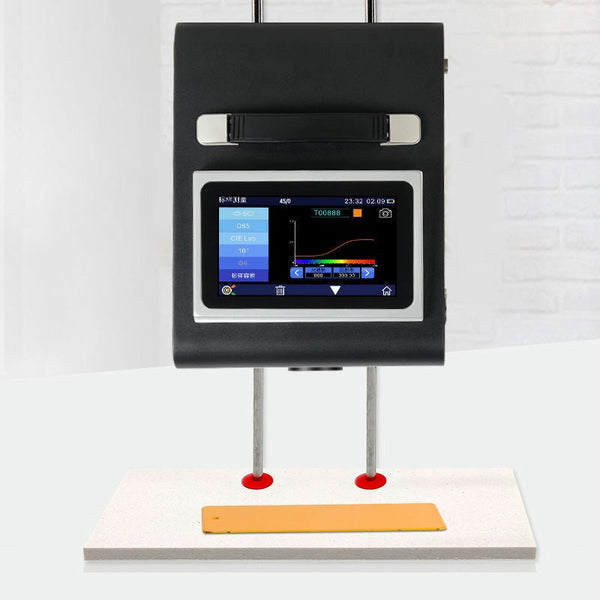

3nh Portable Benchtop Spectrophotometer - front

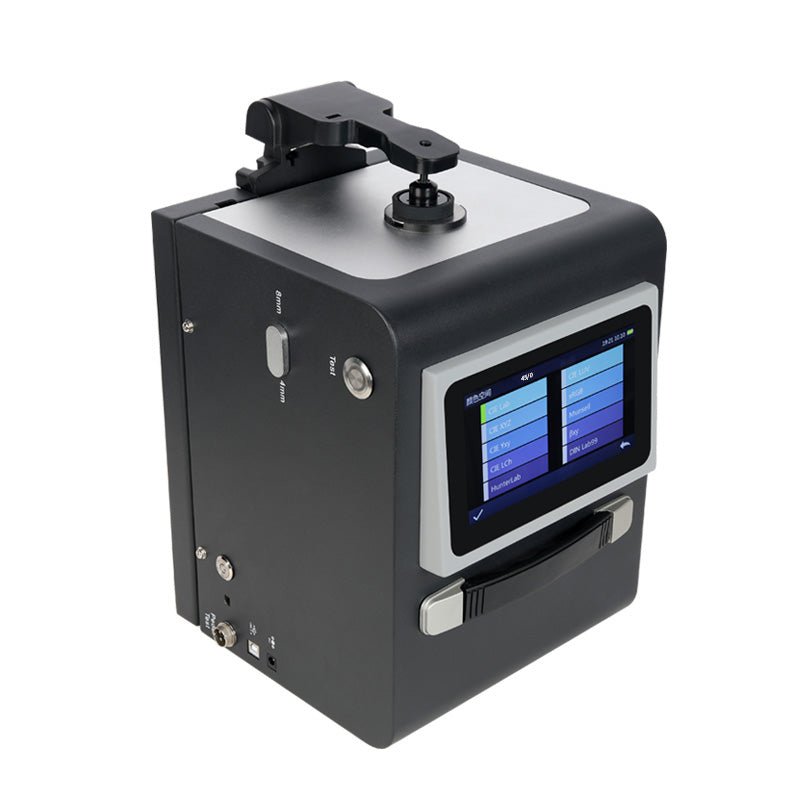

3nh Portable Benchtop Spectrophotometer - side

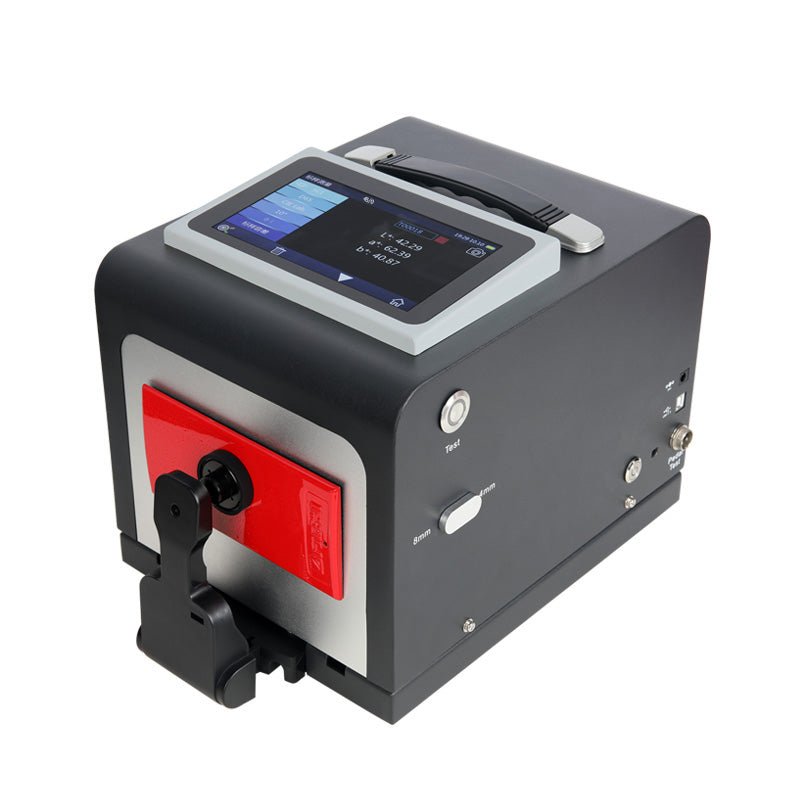

3nh Portable Benchtop Spectrophotometer - controls

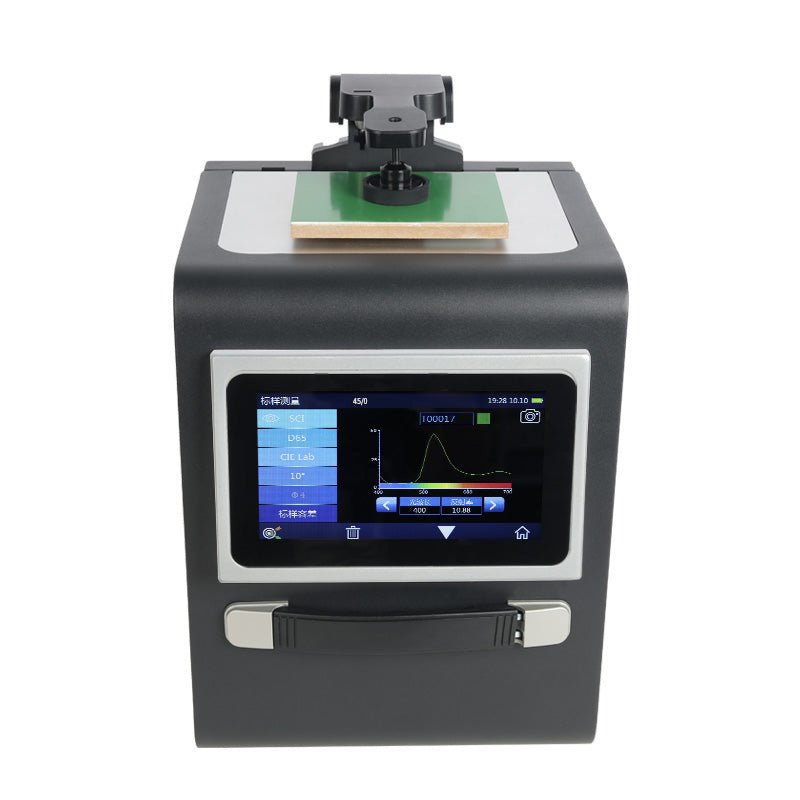

3nh Portable Benchtop Spectrophotometer - color display

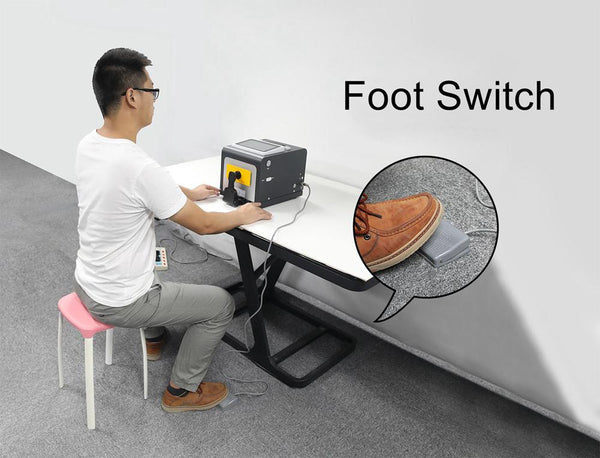

3nh Portable Benchtop Spectrophotometer - foot switch
3nh

TS8450

TS8450 Portable Benchtop Spectrophotometer

The TS8450 from 3nh is a cutting-edge 45/0 Optical Portable Benchtop Spectrophotometer designed for precise color measurement.

Equipped with a 256-pixel dual array CMOS image sensor and an imported white board, the TS8450 prioritizes measurement speed and operational ease. It delivers exceptional repeatability with a ΔE*ab precision within 0.02 and an inner instrument error of just 0.15, making it ideal for laboratory color analysis and transfer.

This versatile spectrophotometer excels in measuring brightness factors and color coordinates for traffic signs, markings and reflective films, adhering to GB 2893 and GB/T 18833 standard colors. Additionally, it allows for customizable rectangular tolerance settings for polygon measurements.

Key Features:

Advanced Light Source Technology: The TS8450 utilizes a combination of full-spectrum LED and UV light sources, ensuring balanced spectral distribution in the visible range while minimizing spectral loss. The specialized UV light source enhances reliability for UV testing.

Comprehensive Color Spaces and Light Sources: This instrument supports multiple color spaces—including CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy and Munsell (C/2)—alongside various observation light sources such as D65, A, C, D50, F2 (CWF), F7 (DLF), F10 (TPL5), F11 (TL84), and F12 (TL83/U30) to accommodate specific measurement conditions.

Verified Calibration: Each TS8450 spectrophotometer undergoes thorough verification and testing before leaving the factory. Measurement data are traceable to the National Metrotechnical Institute, ensuring the reliability and accuracy of test results.

User-Friendly Interface: Featuring a 7-inch industrial-grade HD touch screen, the TS8450 offers a smooth, intuitive user interface that enhances the overall user experience, making operations straightforward and convenient.

Ideal for applications in plastics, electronics, paints, textiles, and ceramics, the TS8450 is also capable of measuring fluorescence samples, making it an essential tool for quality control and color accuracy across various industries.

Note: This item ships direct from the manufacturer. Please allow an additional 3-5 business days for order processing and shipment on all 3nh instruments.

Model TS8450
Optical Geometry 45/0(45 ring-shaped illumination, 0 degree viewing angle)
Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic Enhanced version spectrophotometer, Customized single aperture Φ18/8/4 mm diameter aperture,  used in laboratory accurate analysis and transmission;
Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries; It can be used for fluorescence sample measurement.
It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source, UV light source
Spectrophotometric Mode Flat Grating
Sensors 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0~200%
Measuring Aperture Customized single aperture,MAV:Φ25.4mm/Φ30mm;SAV:Φ8mm/Φ10mm
Specular Component 45/0
Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, DIN Lab99 Munsell (C/2)
Color Difference Formula ΔE*ab,ΔE*uv, ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity
8° Glossiness,555 tone classification
Observer Angle 2°/10°
Illuminant D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time About 1.8s
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method /
Dimension L*W*H=370X240X260mm
Weight About 7.8kg
Battery AC 24V, 3A Power adapter power supply
Illuminant Life Span 5 years, more than 3 million times measurements
Display 7-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth ®5.0, trigger switch interface
Data Storage Standard 1000 Pcs, Sample 30000 Pcs
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture)
Optional Accessory Micro Printer, Foot Switch, Rotating Bracket
Notes Technical parameters are for reference only and may be subject to change.
