30 Amp Analog Multimeter is Designed Specifically for Automotive Use.
The Sanwa TA55 is a portable analog multi-tester that comes with a color-matching scale and high DC current measurement for automotive applications.

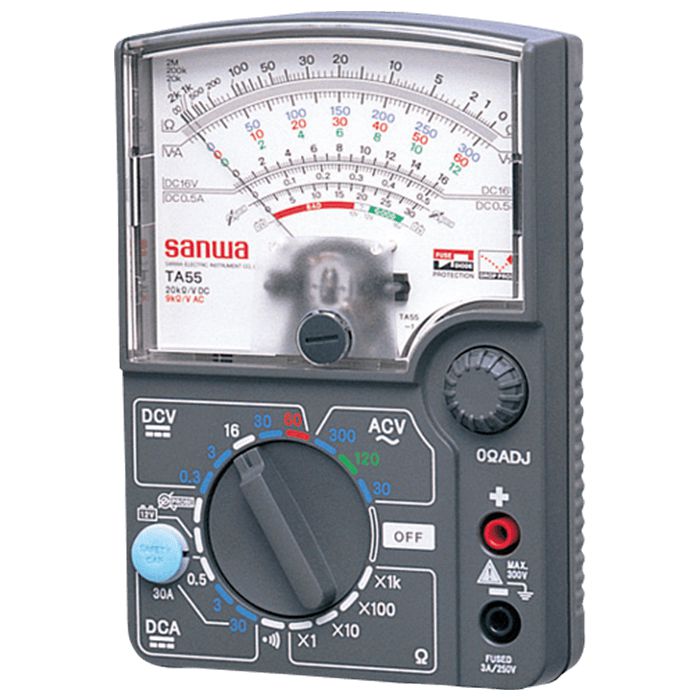

The TA55 multimeter is a taut-band type meter with an easy color matching scale and measurement ranges for DCV, DCA, & ACV measurements. The TA55 can measure DC current of up to 30 Amperes or 300 Amperes DC using an optional CL33DC clamp. The device can measure a maximum of 60 Volts DC and 300 Volts AC making it perfect for measuring home electrical outlets and electric appliances. Measuring resistances of up to 2MΩ and continuity test with a buzzer that sounds at less than approximately 70Ω is also possible with a TA-55 analog multi-tester. Â
The device has a protective casing that provides protection against drop shocks and has a (250V / 3A) breaking capacity (300A) fast-blow fuse for protecting the internal circuity of this instrument.

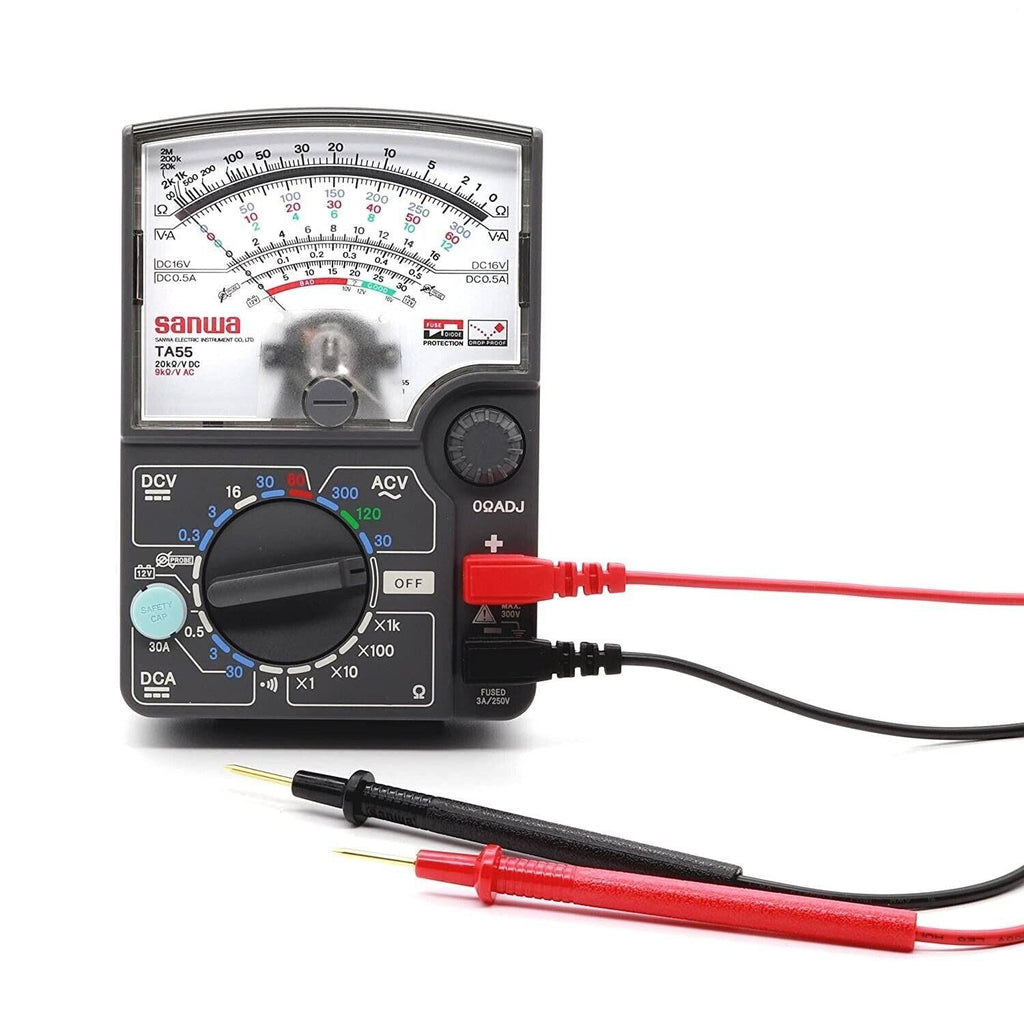

Includes meter, one set of test leads and instruction manual.
- 30A range for automotive
- Color matching scale
- Continuity check buzzer

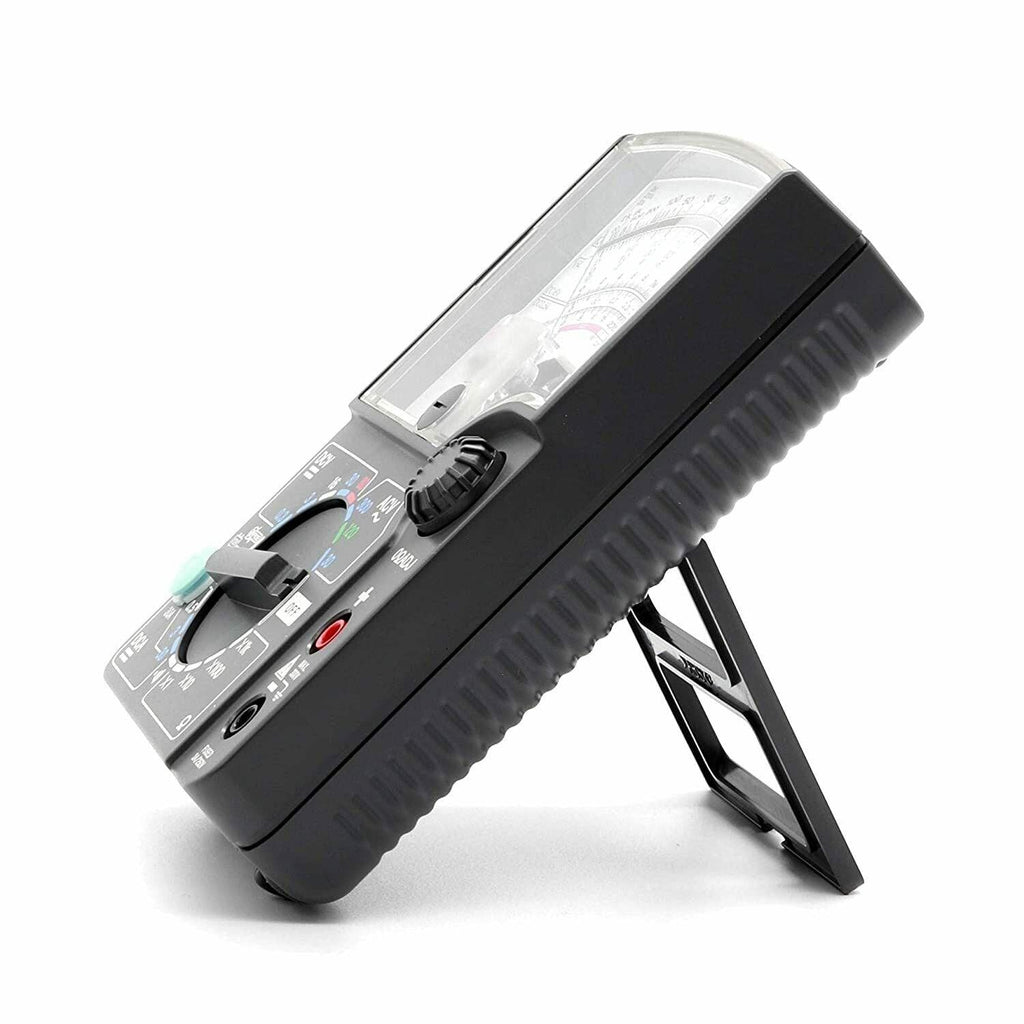

- Tilt-stand
- Measurable up to DC30A / DC300A with optional clamp probe (#CL33DC)
Specifications
Function |
Range |
Tolerance |
DCV |
0.3/3/16/30/60V(20kΩ/V) |
±3% of full scale |
ACV |
30/120/300V(9kΩ/V) |
±4% of full scale |
DCA |
0.5/3/30A |
±5% of full scale |
Resistance |
2k/20k/200k/2MΩ |
±3% of arc |
Continuity |
≦ approx. 70Ω: Beep sounds. Open circuit voltage: approx.3V |
Battery check |
For 12V automobile battery |
Frequency characteristic |
40Hz to 5kHz: frequency response within ±3% |
Battery |
R6P(AA battery)1.5Vx2 |
Built-in fuse |
F0020 Φ6.4x30mm 3A/250V 300A Glass fuse |
Size/Mass |
H142×W97×D38mm/Approx. 300g |
|
*The value in ( )at DCV and ACV is input resistance |
