SP-18D | Analog Multimeter with Built-In Case

Share this Product

Description

A convenient multimeter with it's own built-in, shock resistant case.

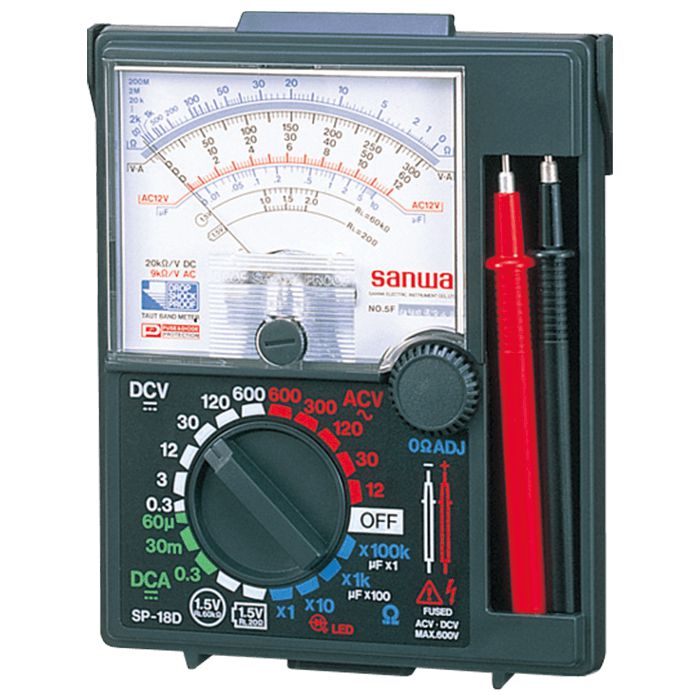

The Sanwa SP18D is a portable analog multimeter that can measure resistance up to 200MΩ. This device is designed for measurement of low-voltage circuits, small communications equipment, home electric appliances, voltage of lump line, and measurement of various types of batteries. This device can measure both AC and DC voltages with an accuracy of 3% of full scale. It can also measure resistances of up to 200MΩ, and capacitance with a range of 0.01μF～1000μF.

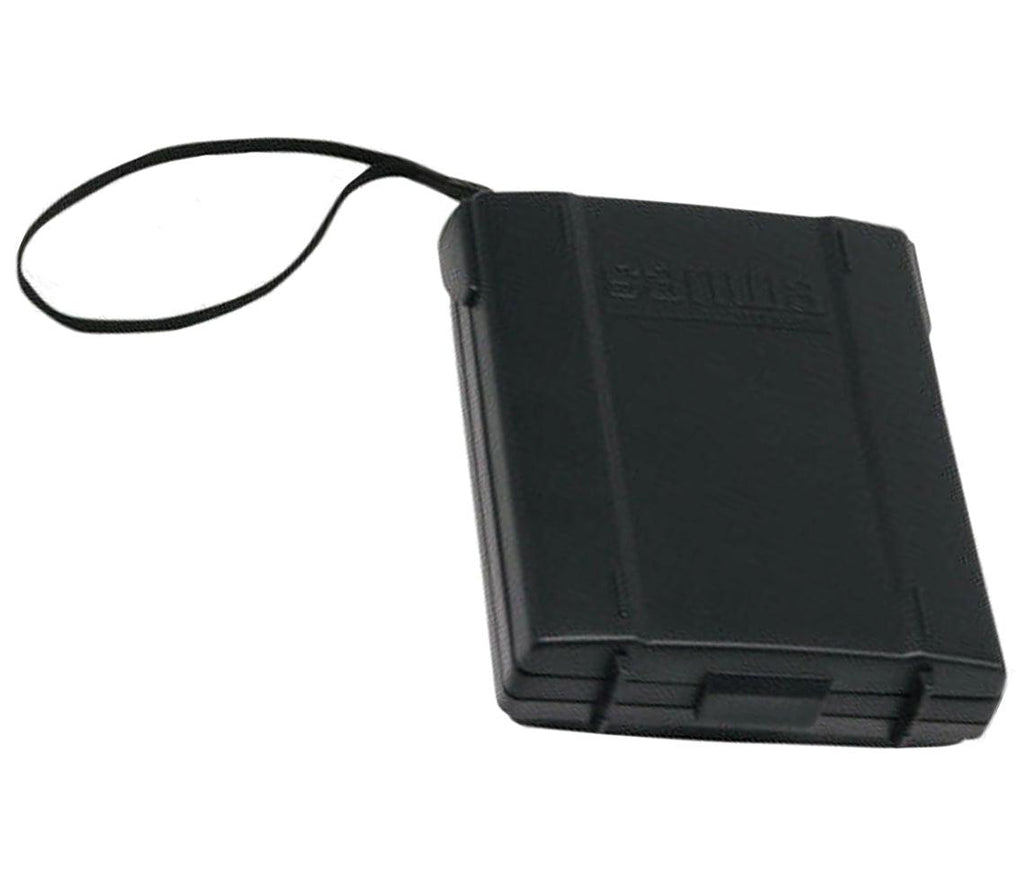

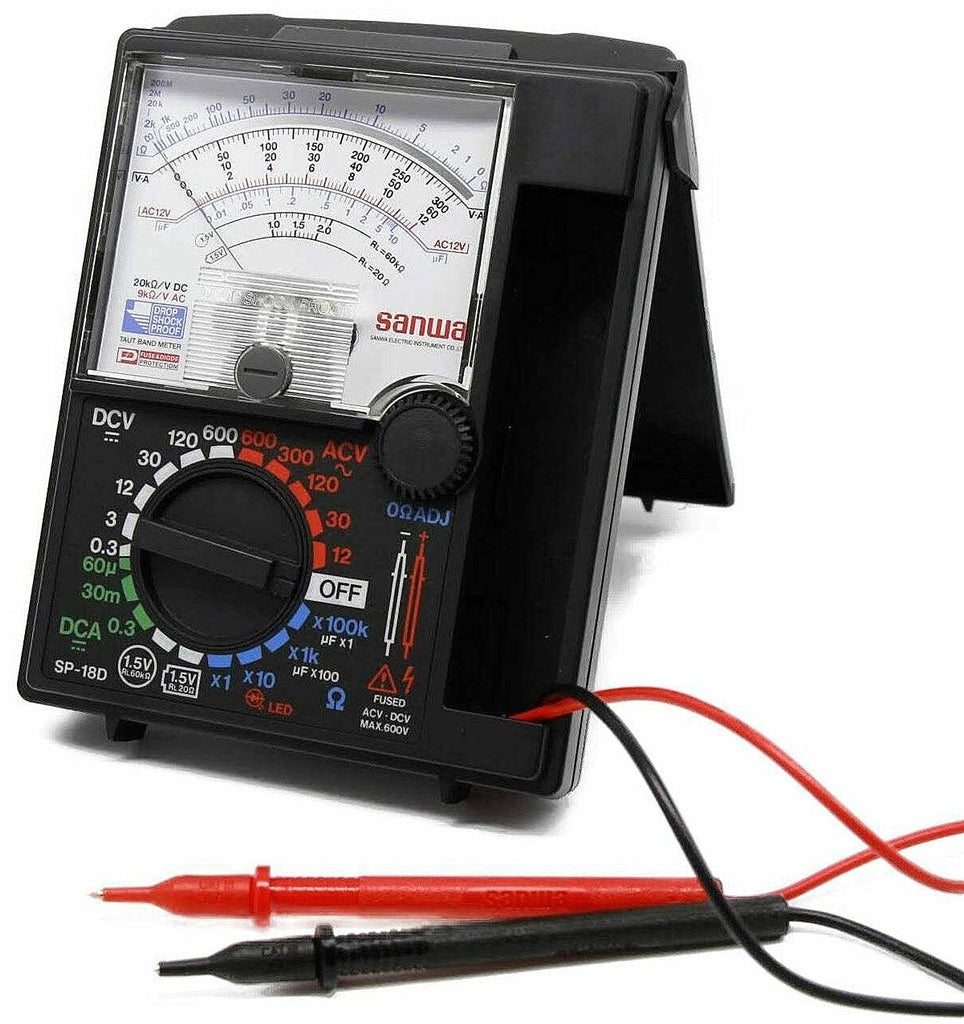

The SP-18D has a protective folding body cover that protects it against drop shocks. The test-leads come with removable protection pin covers rated at CAT III 300V when covered, and CAT II 600V uncovered. The circuit is protected by fuse even when voltage of up to AC 250 V is impressed on each range for 5 seconds.

Meter comes with test leads (attached), instruction manual and a hand strap.

  • Drop shock proof meter
  • Low power ohm (3V) measurement up to 200MΩ
  • Capacitance measurement 0.01μF～1000μF
  • LED check by 3V terminal voltage at resistance range
  • Battery check
  • Protective body cover
  • ±3.0% of full scale
    Specifications
    Function Range Tolerance
    DCV 0.3（5kΩ）/3/12/30/120/600V（20kΩ/V) ±3% of full scale
    ACV 12/30/120/300/600V（9kΩ/V) ±3% of full scale
    DCA 60μ/30m/0.3A ±3% of full scale
    Resistance 2k/20k/2M/200MΩ ±3% of arc
    (200MΩ:
    ±5% of arc)
    Battery check 1.5V/1.5V button battery ̶
    Capacitance 1000μF Approximate value
    Frequency characteristic AC12V range 30Hz to 70kHz, AC30V range 30Hz to 20kHz: frequency response within ±3%
    Battery R6P(AA battery) 1.5Vx2
    Built-in fuse F0301 Φ5x20mm 0.5A/250V 300A Glass fuse
    Size/Mass H159.5×W129×D41.5mm/Approx. 320g
    Test lead length/Pin tip Length Approx. 0.9m/19mm
    *The value in （　）at DCV and ACV is input resistance
