SE300 | Digital Rotational Tachometer - Non-Contact - Sanwa-America.com
Sanwa

SE300

SE300 | Digital Rotational Tachometer - Non-Contact

Share this Product

Description

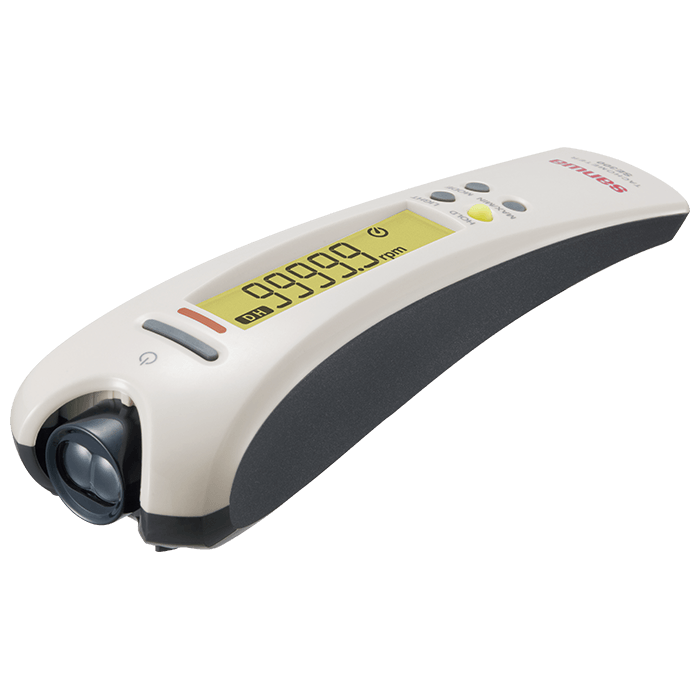

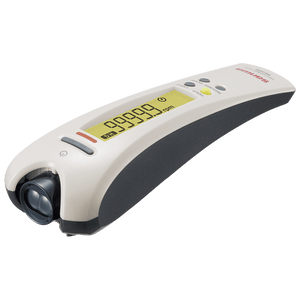

This instrument is a non-contact, handheld type digital tachometer designed for measuring the speeds of rotating objects such as motors and fans.

  • Contact measurement requires the optional Contact Measurement Attachment Kit (ENC-3)
  • Non-contact measurement - attach the reflective sticker (provided with the instrument ) on the rotating object
  • Various measurement mode (rpm, rps, ms, count, m/min, and m/s)
  • Data hold, MIN/MAX hold
  • Backlit LCD Display
  • Auto power save

Specifications

Display 99999
Sampling Approx. 1 sec (rpm, rps, cycle, m/min, m/s)
Approx. 0.1 sec (count)
Reflection detection distance ç´„50 to 500 mm
Power supply R6P/LR6 1.5V×2
Battery life Approx. 28 hours
Dimensions/mass H210×W60×D50 mm/Approx. 218 g
Measurement Mode Non-Contact Measurement Contact Measurement
(with *ENC-3)		 Accuracy
rpm 30.0～99999 30.0～19999 ±(0.03%+1)
rps 0.50～1600.0 0.50～333.00
ms 0.600～1999.0 3.000～1999.0
count 0～99999 0～99999
m/min - 3.0～1999.0
m/s - 0.05～33.00
