Sper Scientific
*Certification Option
N.I.S.T. traceable Certificate of Compliance available at additional cost (Select option above). Please note that meter certification requires approximately 2-3 weeks additional lead time for delivery.
840064

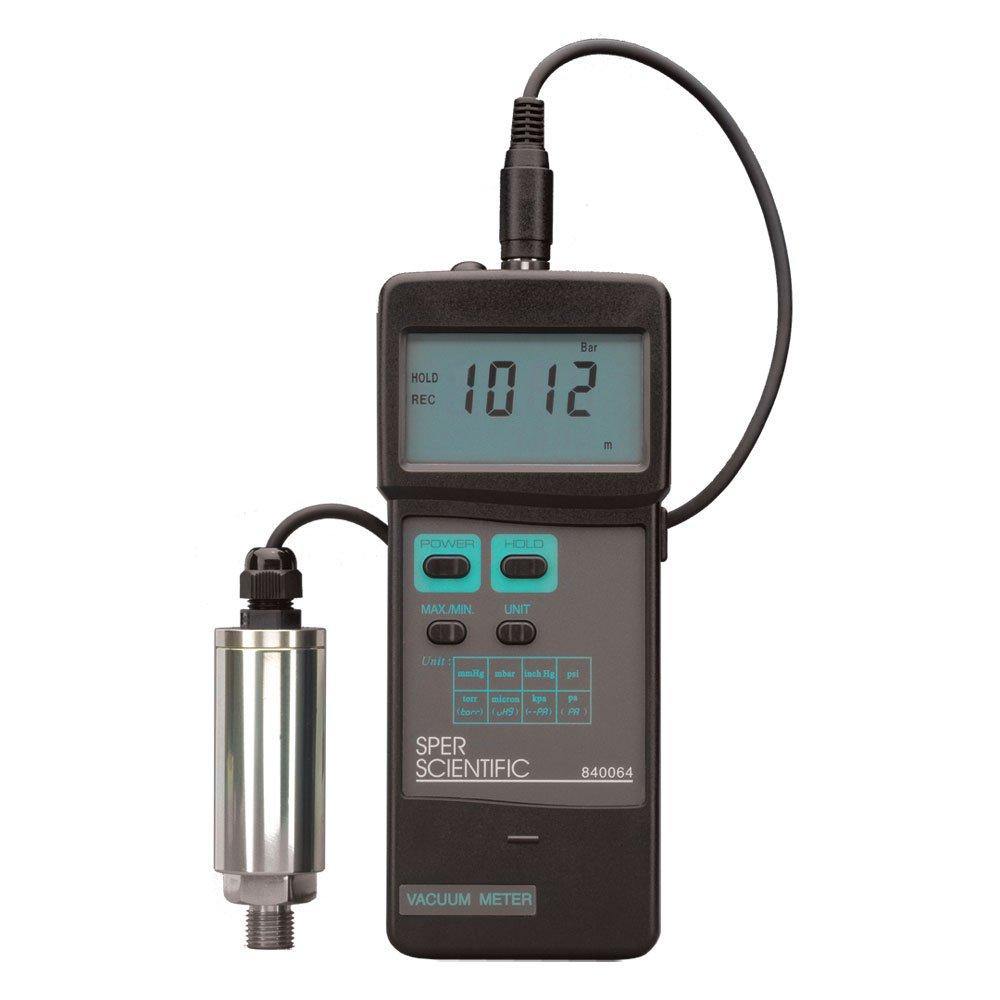

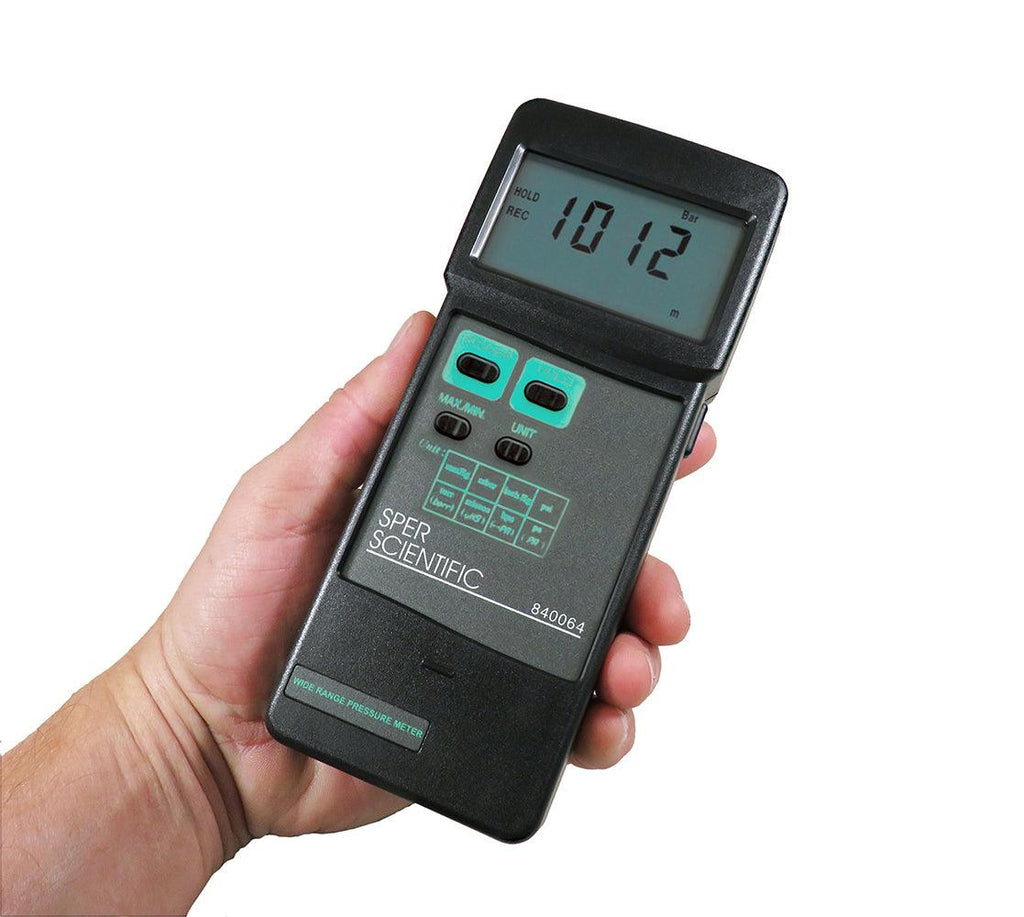

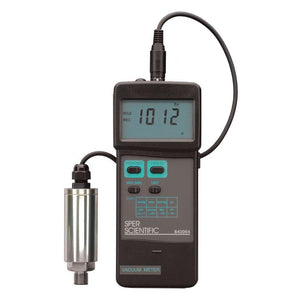

Portable Handheld Vacuum Meter
Portable meter for absolute vacuum pressure measurements.
This meter is used in hospital labs, crystal growing, solvent recovery, distillation, and rotary evaporation. Also used in HVAC, automotive and other industrial applications. Includes a detachable heavy-duty probe with ¼ PS connector for liquid, air, oil and gas.

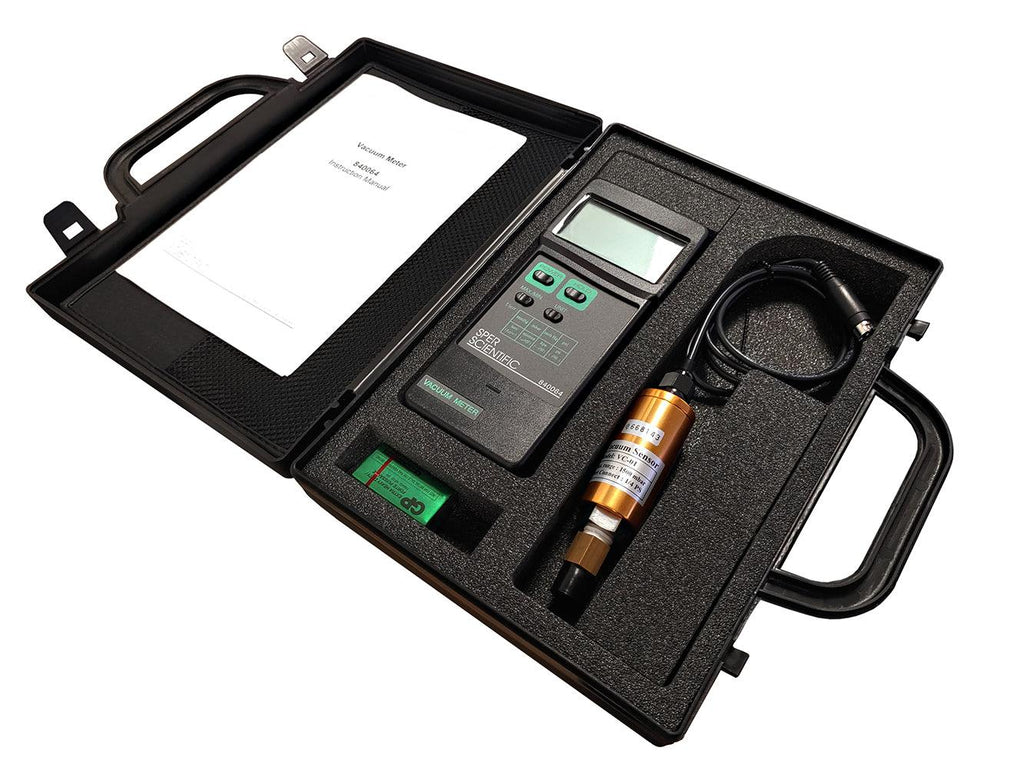

Features a large display with eight units of measure, min/max, hold, low battery indicator, and auto power off. Comes ready to use in a foam-lined, hard-shell carrying case, with 9V battery and instructions.
Dimensions: 7" × 3" × 1½" (180 × 75 × 35 mm), probe cord: 49” (125 cm)
Weight: Meter 8 oz (220 g), Probe 6 oz (170 g)
*Certification OptionN.I.S.T. traceable Certificate of Compliance available at additional cost (Select option above). Please note that meter certification requires approximately 2-3 weeks additional lead time for delivery.
| Unit | Max Range | Resolution | Accuracy |
|---|---|---|---|
| mbar | 1500 mbar | 1 mbar | ± 1% FS (23 ± 5°C) including linearity, hysteresis & repeatability |
| Kpa | 150.0 Kpa | 0.1 Kpa | |
| Pa | 150,000 Pa | 100 Pa | |
| torr | 1125 torr | 1 torr | |
| mm Hg | 1125 mm Hg | 1 mm Hg | |
| micron | 1,125,000 micron | 1000 micron | |
| In Hg | 44.30 inch Hg | 0.02 inch Hg | |
| PSI | 21.75 psi | 0.01 psi |
