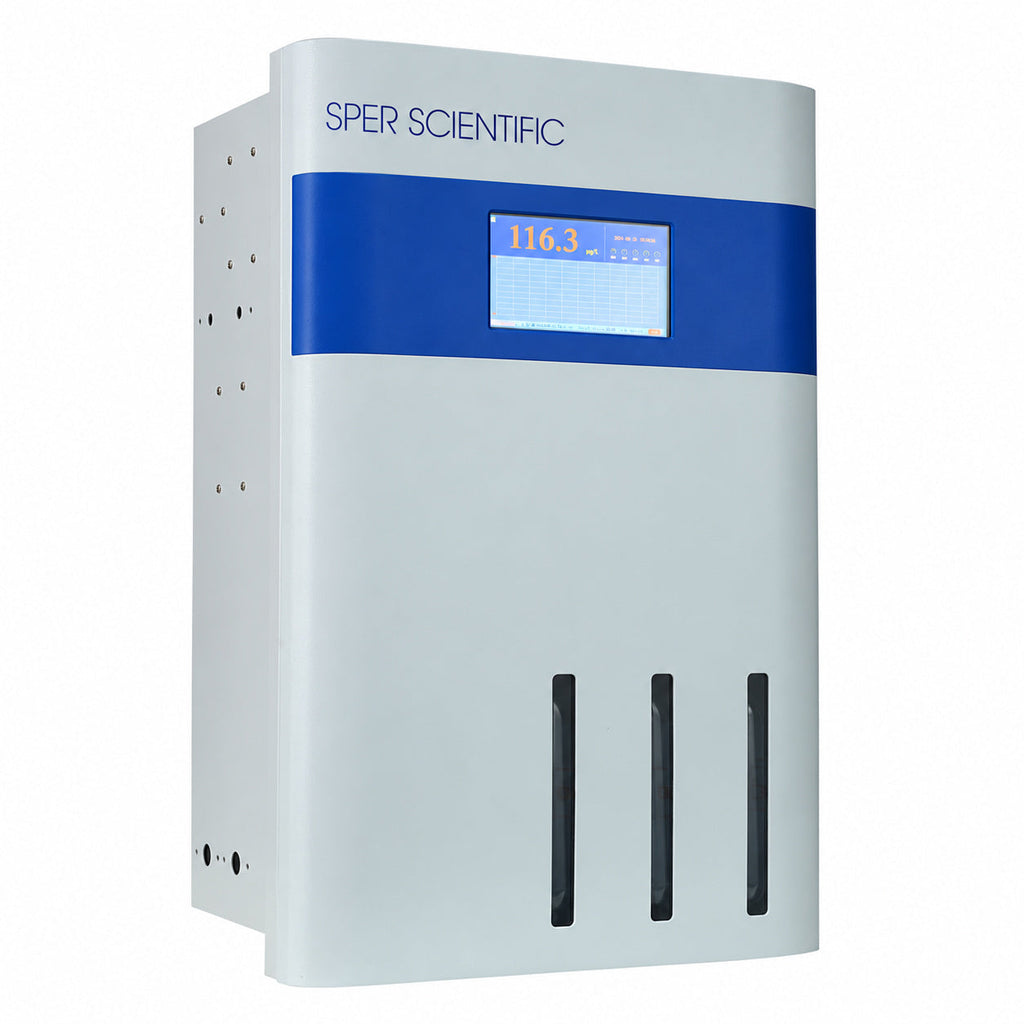

Sper Scientific 870018 online silicate analyzer, angled view

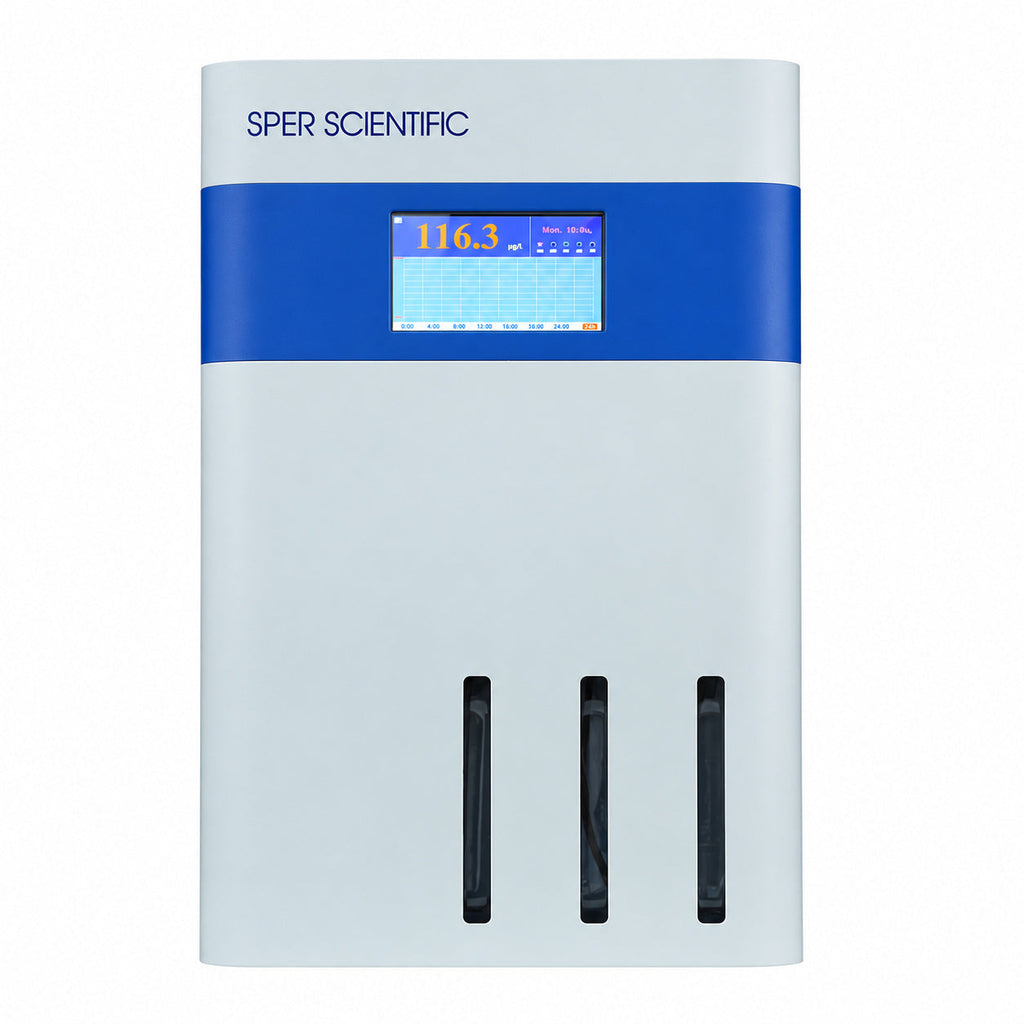

Sper Scientific 870018 online silicate analyzer, front

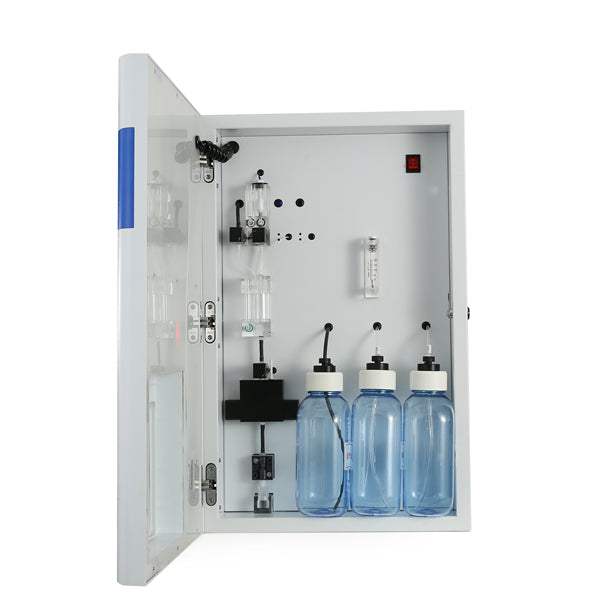

870018 online silicate analyzer interior view
Sper Scientific

870018

Online Industrial Silicate Analyzer

Share this Product

Description

The Sper Scientific Online Industrial Silicate Analyzer monitors silicate levels in process water using automated chemical reaction and optical detection.

It supports applications such as power plant feedwater, steam-cycle monitoring and industrial water treatment where low concentrations must be tracked. A color LCD displays results and historical trends, while the 4–20 mA output and RS485 communication connect the analyzer to monitoring equipment. Automatic calibration can be scheduled to suit the application. Optional multi-channel configurations allow the analyzer to measure multiple sample streams.

Features

  • Automated chemical reaction and optical measurement
  • Color display with English-language menus and trend curves
  • Historical data recording for up to 30 days
  • Automatic calibration with adjustable interval
  • One to six sample channels available by configuration
  • Audible and relay alarms
Specifications
Part number 870018
Measurement ranges 0–20, 0–100 or 0–2,000 µg/L; 0–5,000 µg/L special range available
Accuracy ±1% of full scale
Repeatability ±1% of full scale
Drift ≤±1% of full scale per 24 hours
Response 12 minutes initial; 10 minutes per channel during continuous operation
Sample conditions Flow >50 mL/s; temperature 10–45°C; pressure 10–100 kPa
Ambient conditions 5–45°C; accuracy decreases above 40°C; <85% RH
Reagent consumption Three reagents; approximately 1 L of each per month
Output 4–20 mA
Alarms Buzzer and normally open relay contacts
Communications RS485 Modbus RTU; LAN, Wi-Fi or 4G options
Power 220 VAC ±10%, 50 Hz; approximately 50 VA
Dimensions 720 × 460 × 300 mm (H × W × D)
Mounting hole dimensions 665 × 405 mm
FAQs

How often does the analyzer measure?
During continuous operation, the specified sampling period is 10 minutes per channel.

Can it monitor multiple sample streams?
Configurations with one to six channels are available.

Does it need reagents?
Yes. The analyzer uses three reagents that must be replenished.
