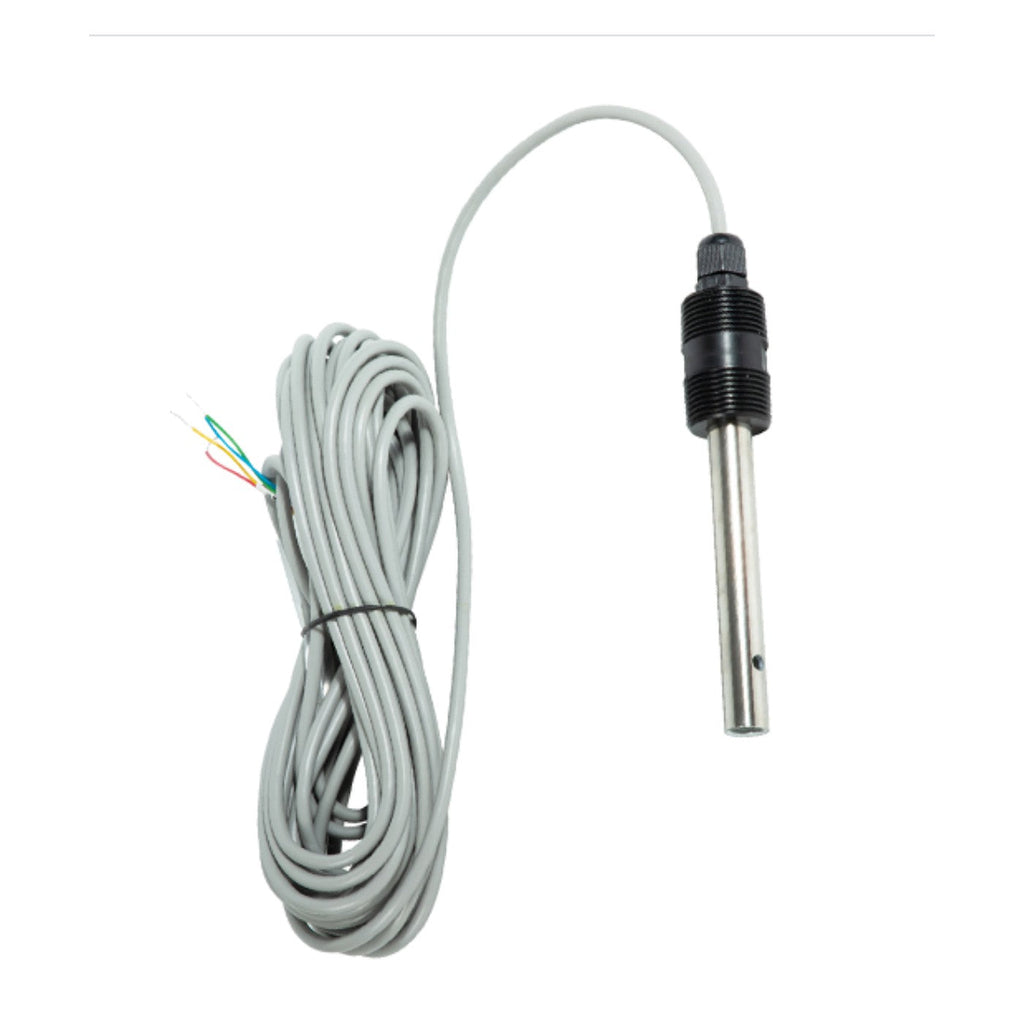

Sper Scientific 870003-ICE-01F conductivity sensor product photo 3 on white background

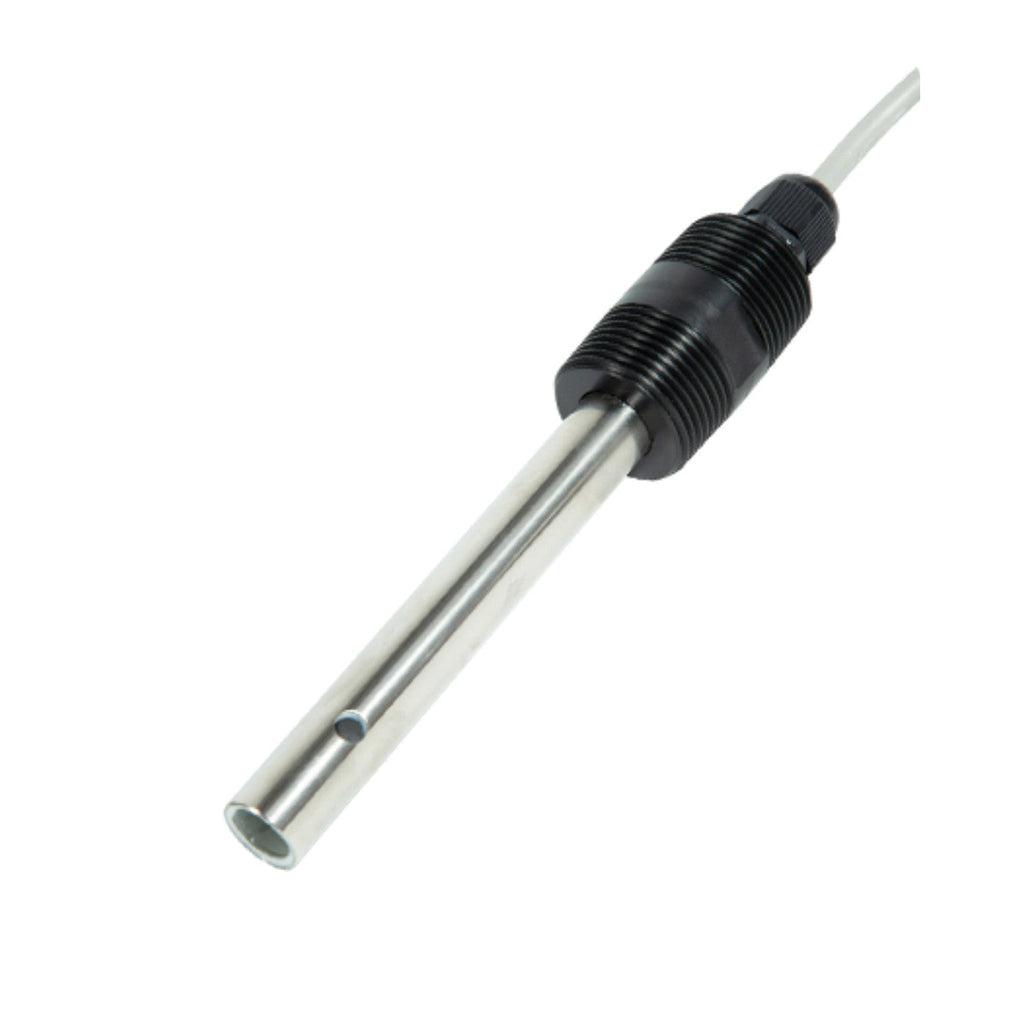

Sper Scientific 870003-ICE-01F conductivity sensor product photo 1 on white background

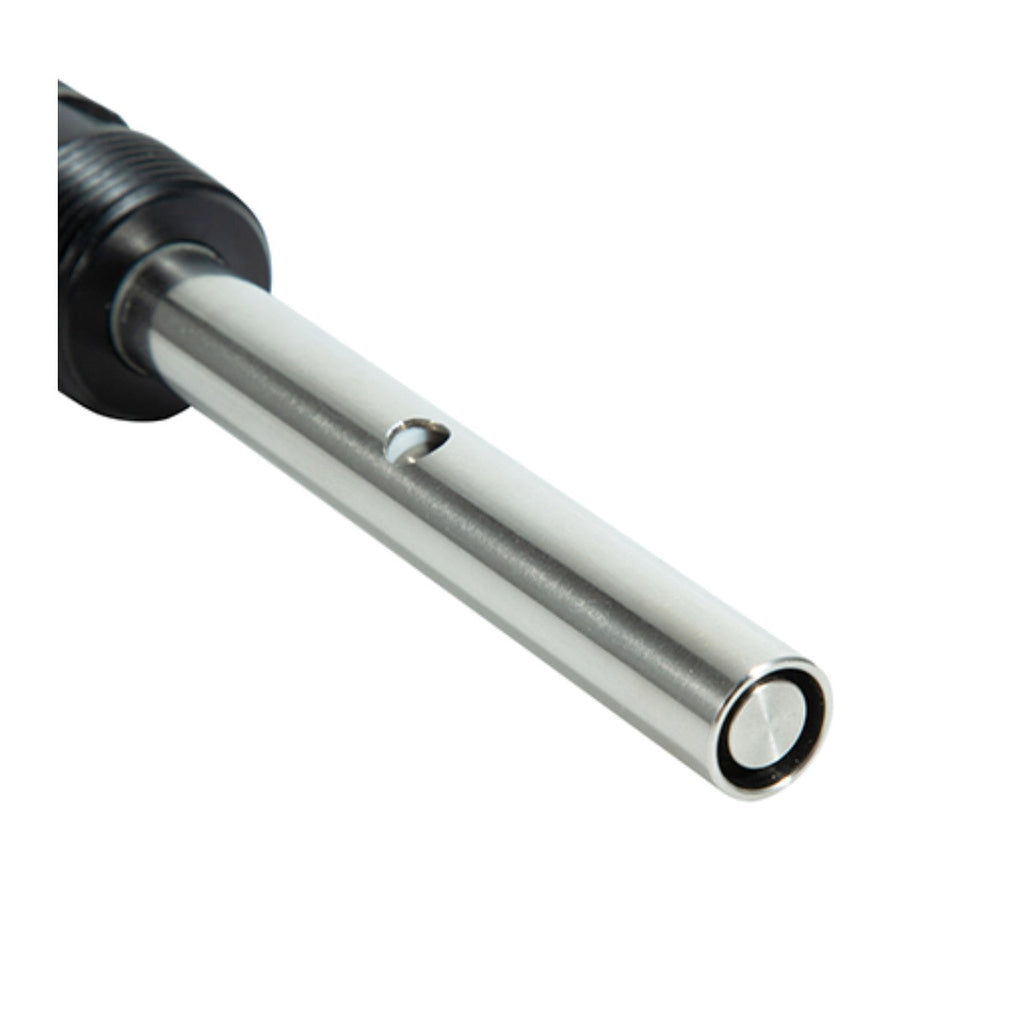

Sper Scientific 870003-ICE-01F conductivity sensor product photo 2 on white background

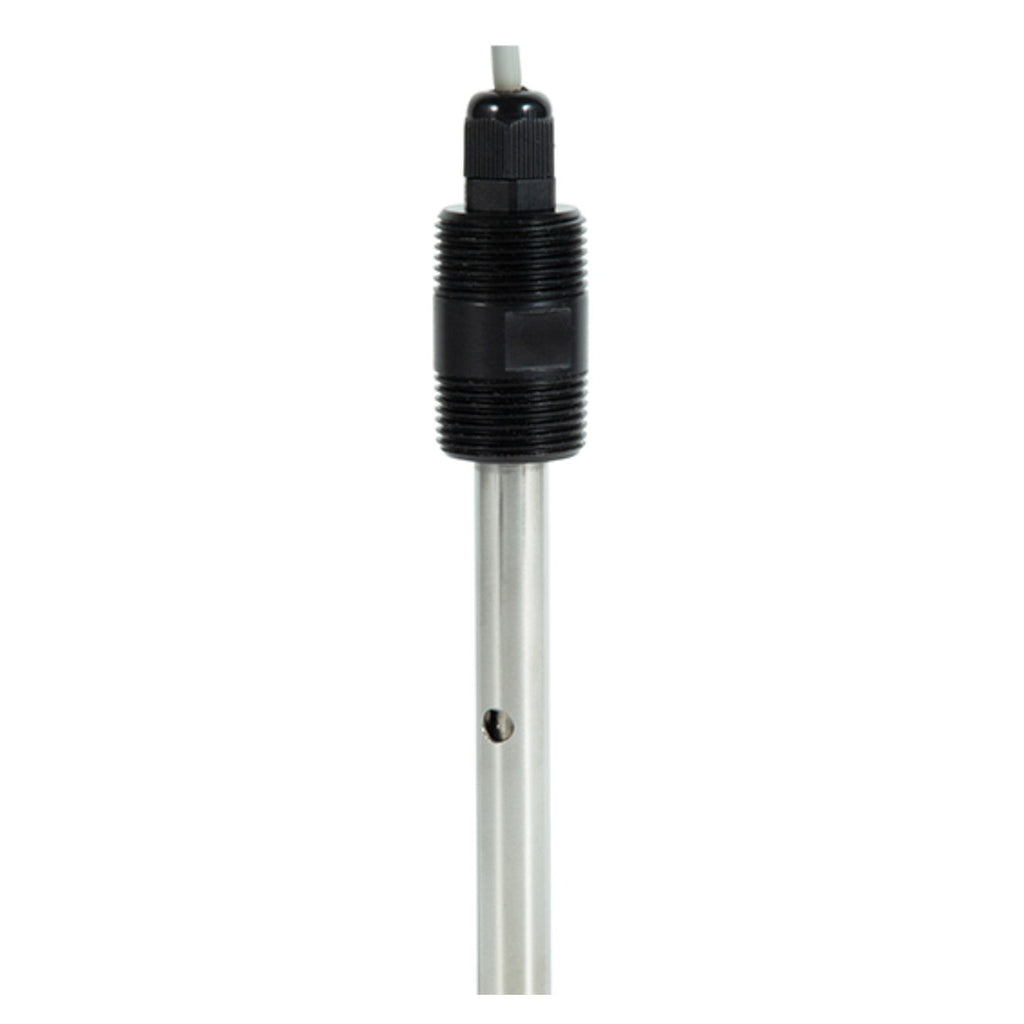

Sper Scientific 870003-ICE-01F conductivity sensor product photo 5 on white background
Sper Scientific

870003-ICE-01F-1

Online Industrial Conductivity Sensor with Dual 3/4-Inch Thread


Share this Product

Industrial Conductivity Monitoring with Dual 3/4-Inch Threaded Installation

The Sper Scientific 870003-ICE Industrial Conductivity Sensor is an analog electrode designed for measuring conductivity in pure water, reverse osmosis systems, hydroponics and industrial water treatment. Its dual 3/4-inch threaded design supports versatile process installation, while corrosion-resistant electrode materials and optional temperature compensation provide stable conductivity monitoring.

Features

  • Analog mV output for compatible conductivity controllers
  • Dual 3/4-inch threaded installation
  • Available conductivity ranges for low- and moderate-conductivity water
  • ±2% full-scale accuracy and response time under 60 seconds
  • Suitable for immersion, pipeline and flow-through installations
  • Temperature compensation element and connection options depend on configuration

Applications

Reverse osmosis and purified water systems, hydroponics, water treatment and industrial process water monitoring.

Manufacturer series 870003-ICE-0.01 / 0.1 / 1.0
Measurement ranges (configuration dependent) 0.01–20 µS/cm
0–200 µS/cm
0–2000 µS/cm
Output Analog mV
Resolution 0.1 µS/cm
Accuracy ±2% FS
Response time <60 seconds
Maximum pressure 0.6 MPa
Measurement temperature 0–60°C (non-freezing)
Sensor materials PC, 316L stainless steel, titanium alloy and platinum (configuration dependent)
Installation Dual 3/4-inch threads; immersion, pipeline or flow-through
Temperature compensation Optional NTC or Pt elements, configuration dependent
Manufacturer-listed dimensions 13 × 120 mm
Manufacturer-listed weight 0.6 kg
