MG1000 | Digital Insulation Tester Dustproof + Splashproof IP54 Design

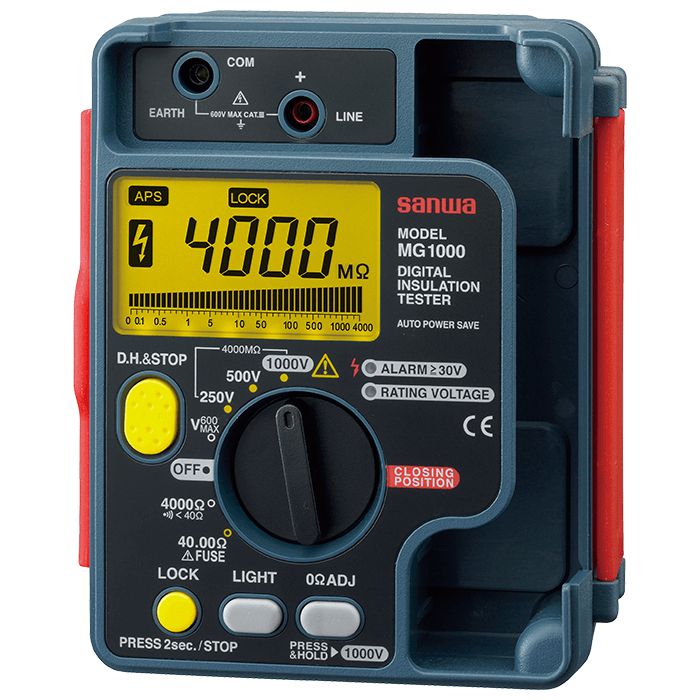

The Sanwa MG1000 is a 3 range ( 1000V/500V/250Vdigital insulation tester that features hot-line state detection, a large backlit display with bar graph and a tough, built-in carry case.

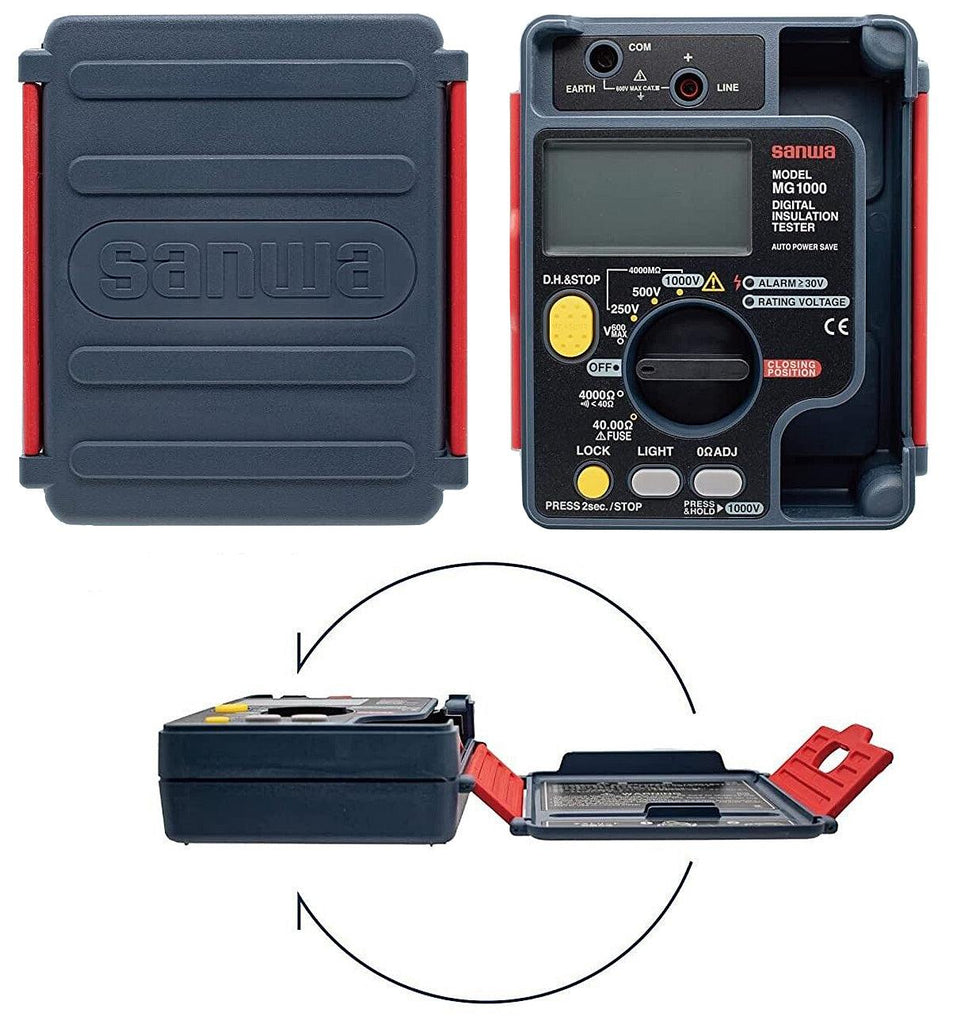

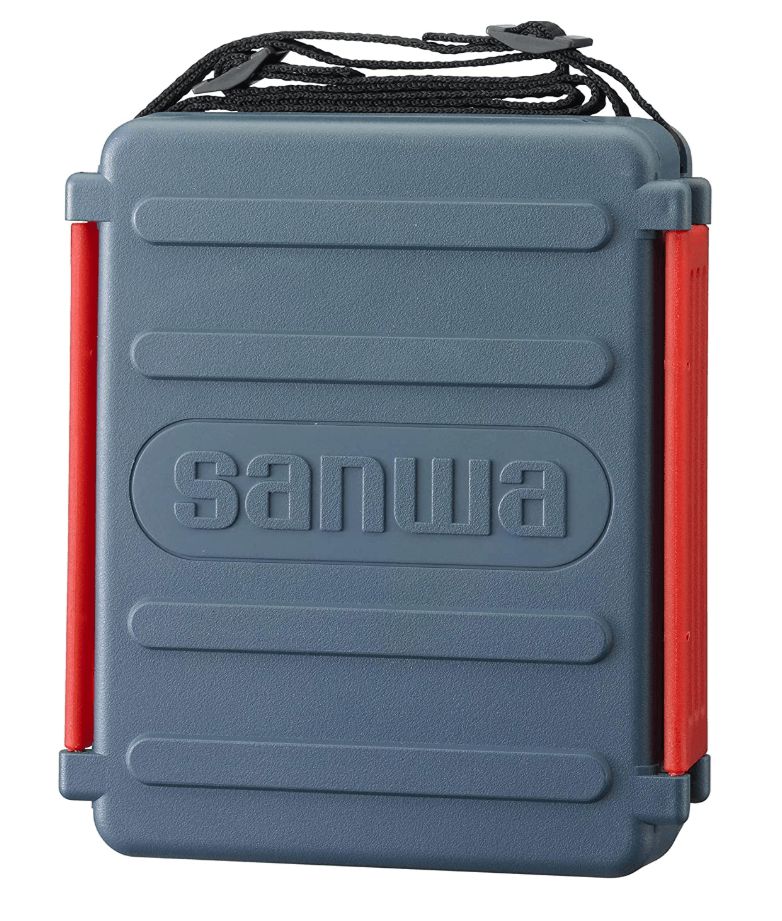

The MG1000 is a digital DC insulation resistance tester to measure the insulation resistance of power lines and equipment within 600V under CAT III. It has an insulation/resistance measurement range of 4M/40M/400M/4000MΩ, and a test voltage measurement range of 1000V/500V/250V. It has a large, 4200 count  display with a backlight and log bar graph - just like in an analog meter. The MG1000 also features a lock-down cover that functions as a dust-proof and splash-proof IP54 rated carry case.

This device can also measure AC and DC voltages with an accuracy of 3%, and a maximum voltage of 600 Volts (AC & DC). The AC frequency bandwidth range is 45 to 400 Hertz. An indicator LED lights up when the input is greater than or equal to 30 volts (AC/DC), and the buzzer turns on when the voltage exceeds 600 volts, the maximum voltage that can be displayed in 780 Volts.

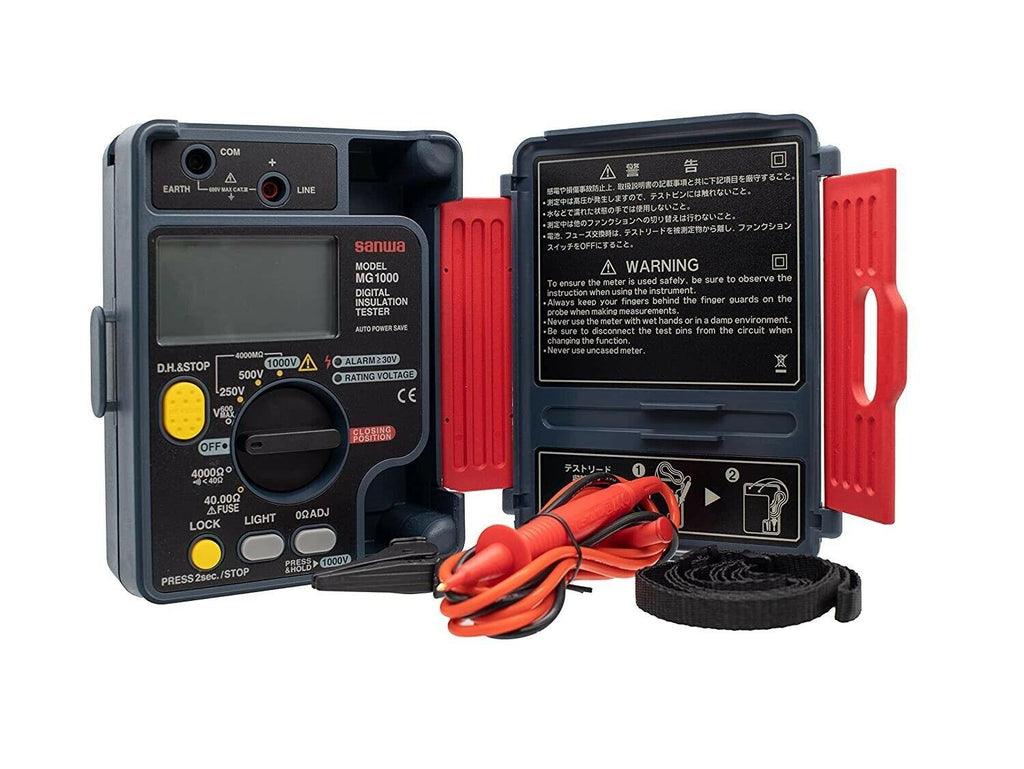

Meter includes test leads, strap and instruction manual.

  • Design compliant with IEC 61010-1
  • MΩ function with automatic live circuit detection (>30 Volts AC/DC)
  • Short circuit current up to 2mA
  • Continuity test with buzzer alarm
  • Large 4200 counts display with log bar and backlight
  • Auto Hold function
  • Auto Range
  • Auto discharge function
  • Auto power save: Enables about 10 minutes after the last operation

            Specifications

            Function Measuring Range Accuracy Resolution
            4M/40M/400M/4000MΩ ±(3%+4) 0.001MΩ
            Rated voltage 250/500/1000V
            ACV/DCV 600V(AC/DC Automatic detection) ±(3%+2) 1V
            Ω(Continuity) 4000Ω(Buzzer and ALARM indicator) ±(3%+3)
            Ω 40Ω ±(3%+10) 0.01Ω
            Rated current 1.0~1.2mA
            Short-circuit current 2mA or less
            Live circuit detection At 30V AC/DC or more, inhibits test, buzzer sounds and ALARM indicator lights up
            Battery LR6(AA alkaline battery)1.5V×6
            Size/Mass H170×W142×D57mm/Approx. 600g
            Safety standard IEC61010 CAT.Ⅲ 600V
