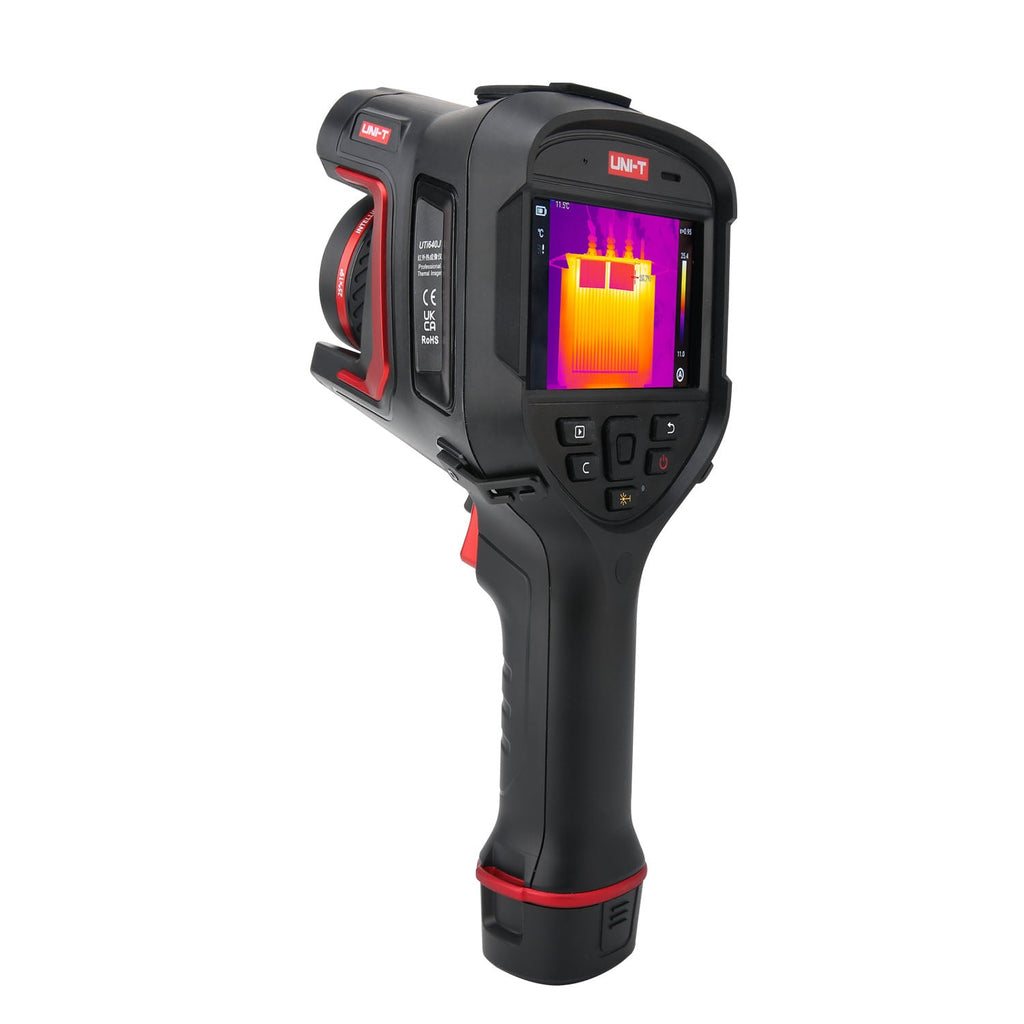

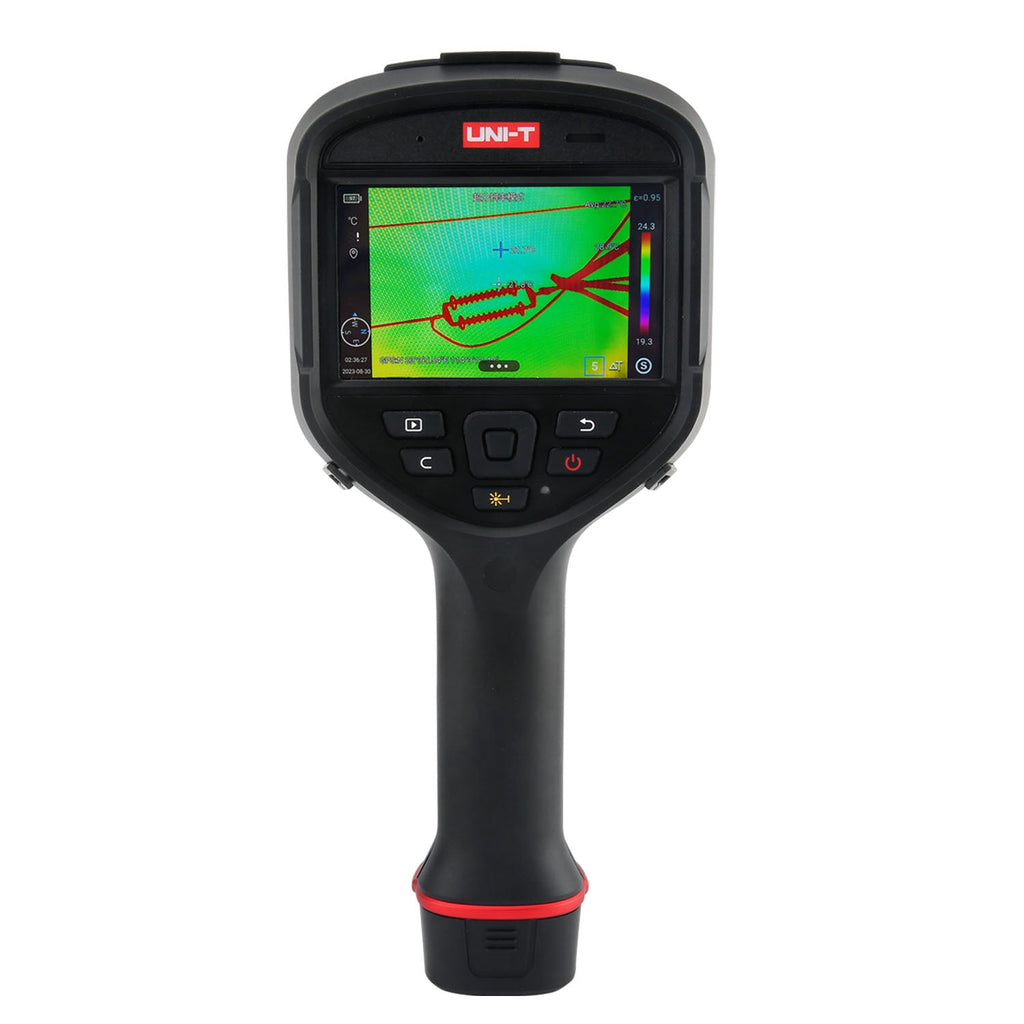

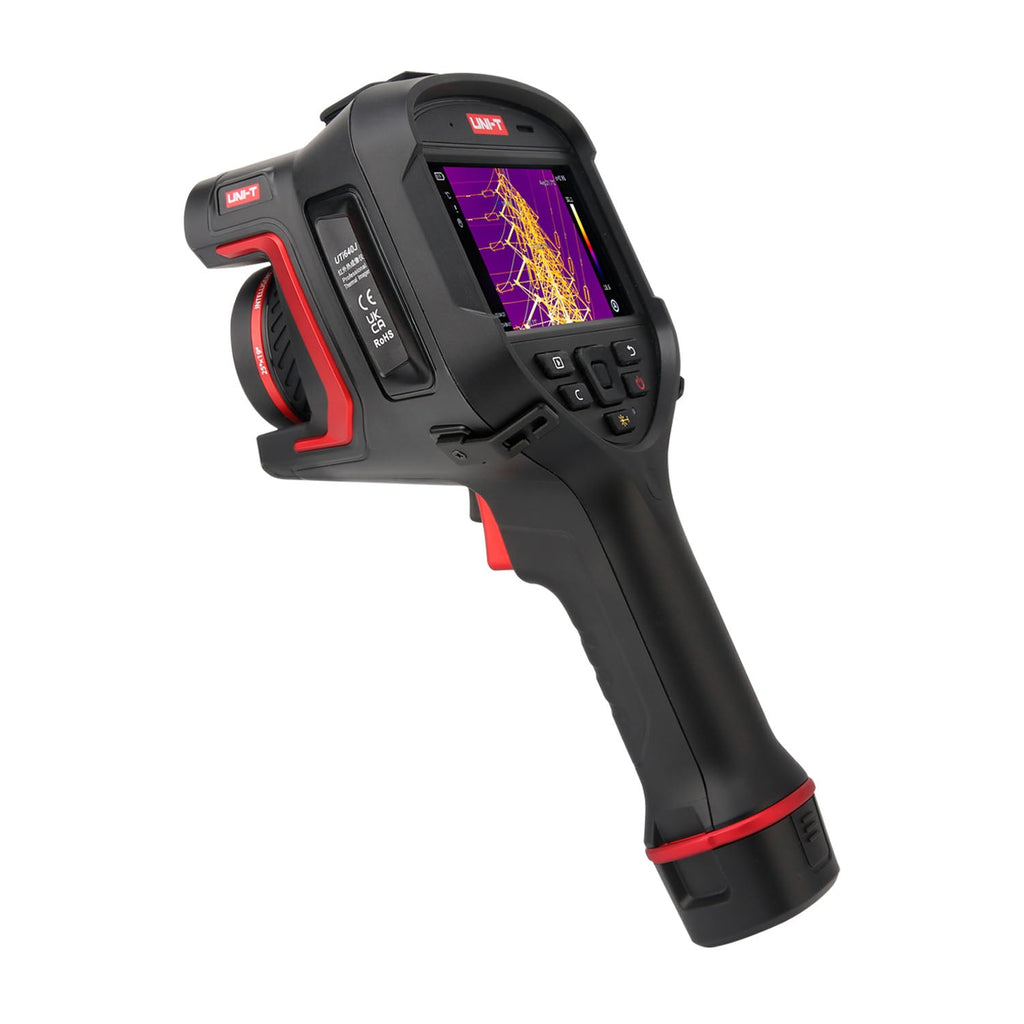

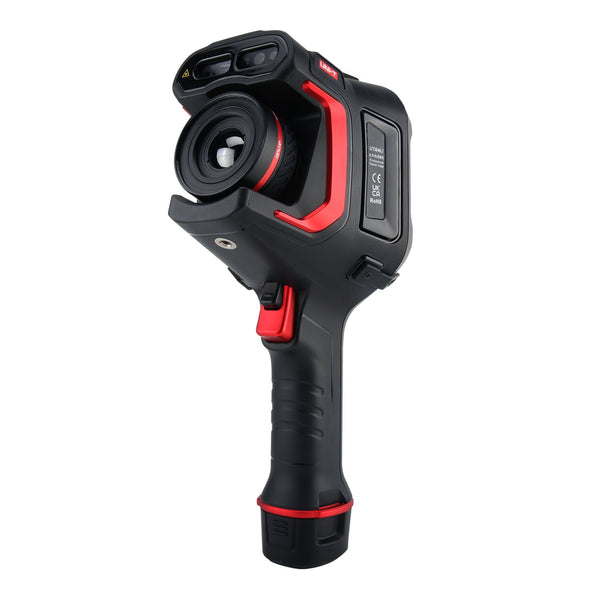

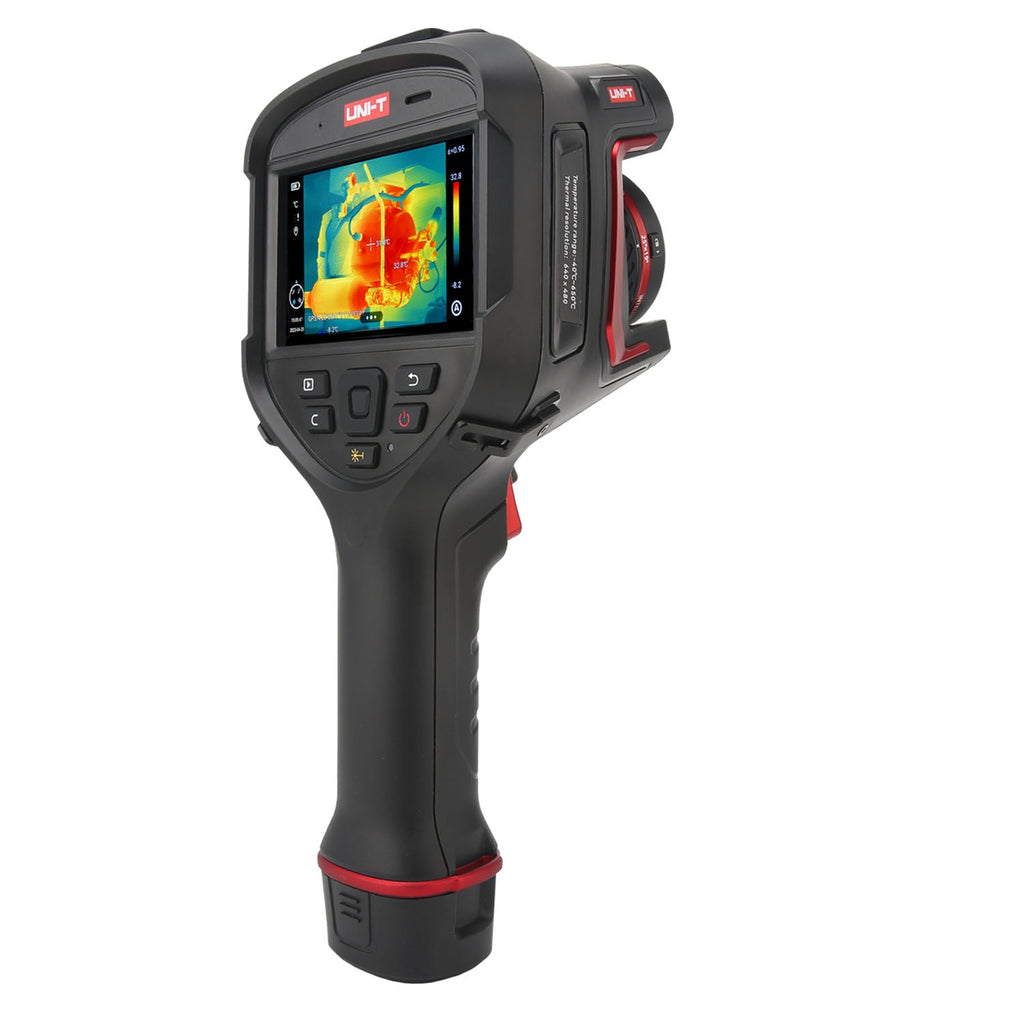

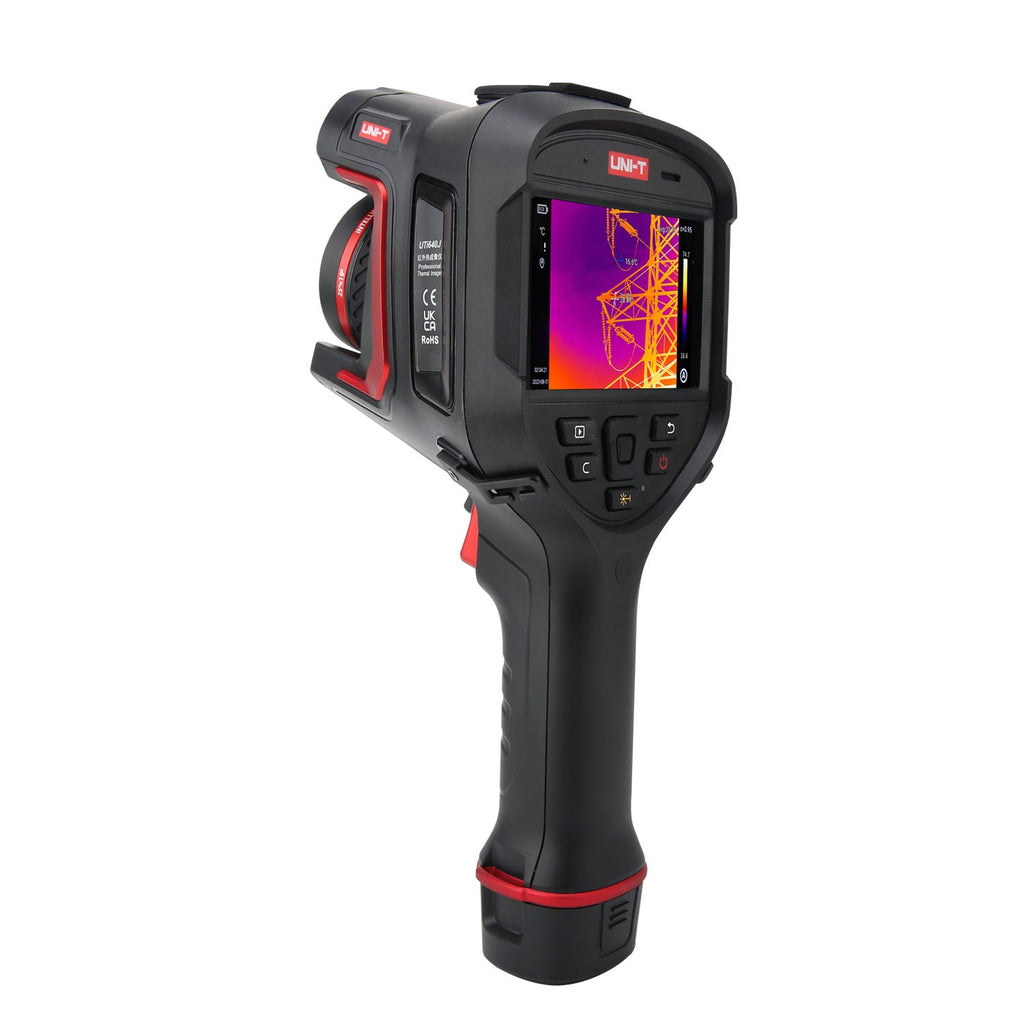

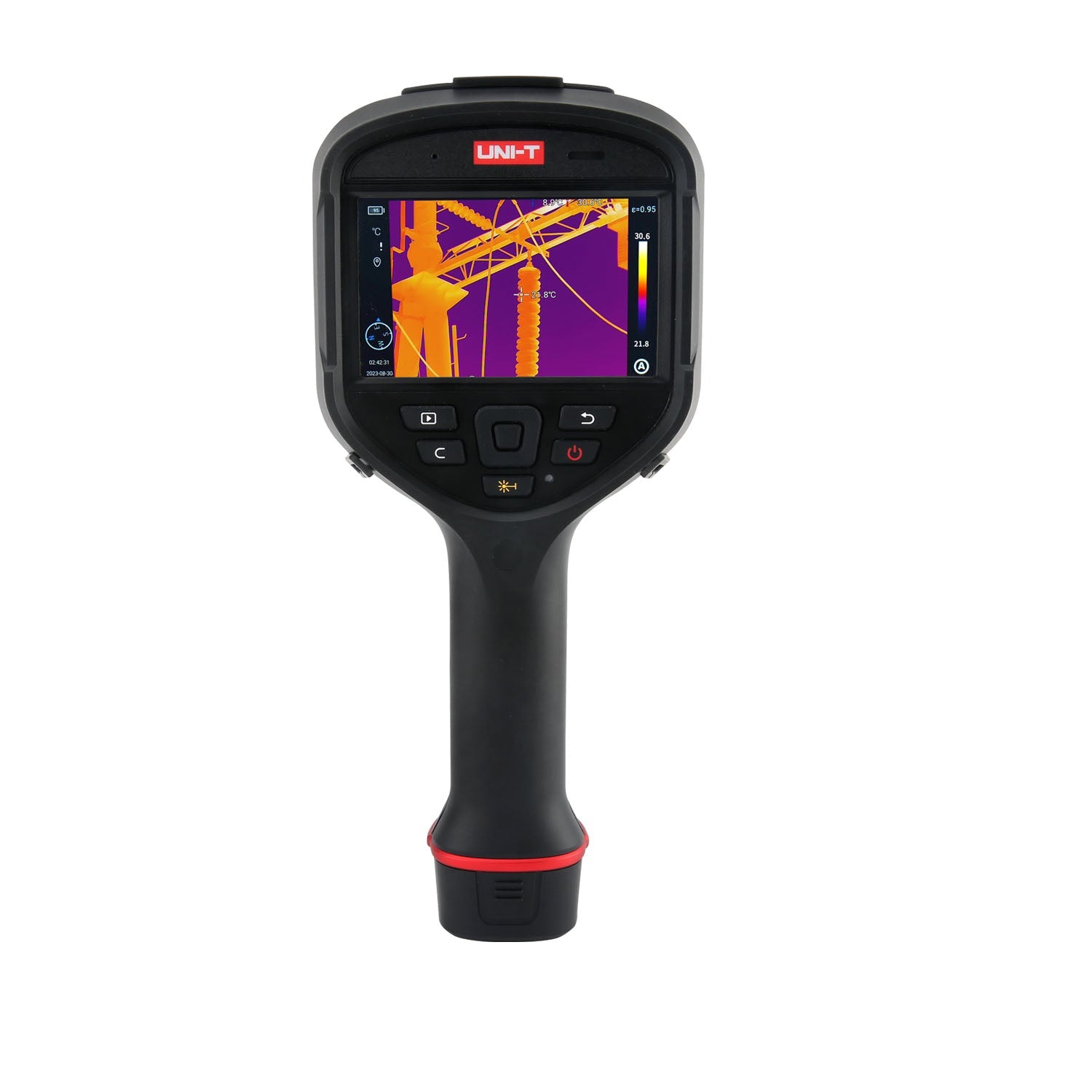

UTi640J
Professional Enhanced Thermal Imaging Camera
UNI-T UTi640J is a high-precision thermal imaging camera designed specifically for industrial applications.

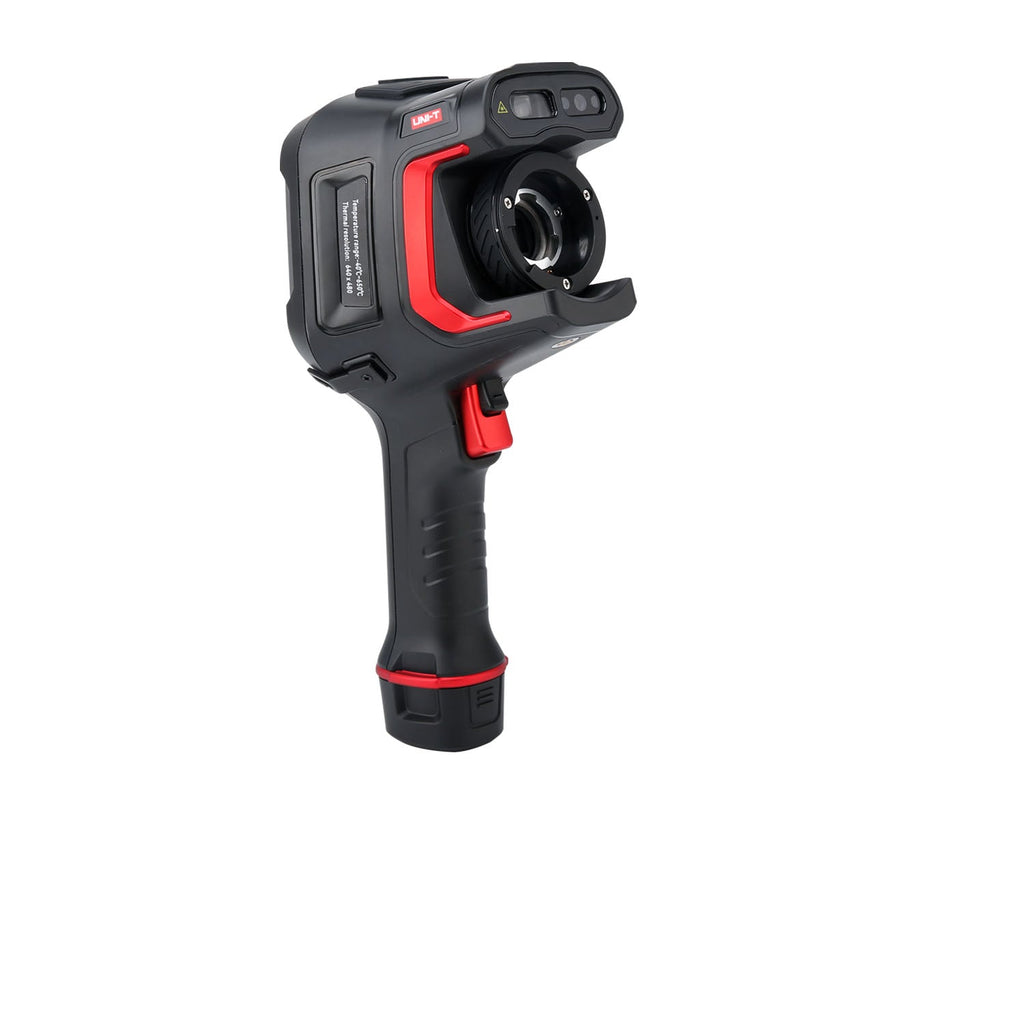

Featuring a built-in high-sensitivity infrared detector with 640×480 pixels, a 13MP digital camera, and advanced 5-focusing modes, this thermal imager enables professionals to intuitively view high-definition images and precise temperature details with its classic "hammer" design.
Professional-Grade Thermal Imaging Technology
Engineered for professionals who demand the highest level of thermal analysis, the UTi640J delivers exceptional performance with its 30Hz infrared frame rate. This advanced thermal camera provides fast and accurate access to temperature data of moving targets, making it an indispensable tool across various industrial diagnostic applications.
Key Features
- High-Resolution 640×480 Pixel Infrared Detector
- Super Resolution Upgrade to 1280×960 Pixels
- 13MP High-Definition Digital Camera
- Multiple Focusing Modes:
- Manual Focus
- Automatic Focus
- Touch Autofocus
- Continuous Autofocus
- Comprehensive Interchangeable Lens System:
- UT-Z006 Macro Lens
- UT-Z007 Wide-angle Lens
- UT-Z008 Medium Tele Lens
- UT-Z009 Tele Lens
- UT-Z010 High-Temp Lens
- 20x Digital Magnification
- Rich Color Palette Options (Customizable)
- Advanced Imaging Features:
- Level & Span Mode
- Image Outline
- Panoramic Stitching
- Dual-Light Video Recording
- Laser Range Finder
- Comprehensive Annotation Capabilities
- Wi-Fi Live Streaming
Advanced Thermal Imaging Technology
The UTi640J represents the pinnacle of thermal imaging technology, featuring a sophisticated infrared detector with exceptional capabilities. Its 30Hz frame rate and ≤40mK thermal sensitivity enable precise temperature detection across a wide range of applications. The super resolution feature dramatically enhances image clarity, upgrading the base 640×480 pixel resolution to an impressive 1280×960 pixels.
Multiple focusing modes provide unprecedented flexibility, allowing users to capture perfect thermal images in various scenarios. From manual adjustments to touch autofocus and continuous tracking, the UTi640J adapts to the most challenging diagnostic environments.
Professional Applications
Industrial Equipment Diagnostics
Maintenance professionals can leverage the UTi640J's advanced thermal imaging to detect potential equipment failures before they occur. The high-resolution imaging and multiple lens options enable comprehensive analysis of machinery performance across various industrial settings.
Electrical Systems Inspection
Electrical engineers can use the thermal imager to identify hotspots, loose connections, and potential electrical hazards. The wide temperature measurement range and high sensitivity make it ideal for detecting subtle temperature variations in electrical systems.
Precision Manufacturing
Manufacturing quality control teams can utilize the UTi640J's advanced features like panoramic stitching and detailed temperature tracking to ensure consistent production processes and identify potential manufacturing defects.
Research and Development
Researchers benefit from the camera's comprehensive annotation capabilities, multiple image modes, and extensive color palettes. The ability to capture thermal data with 13MP visual images provides unparalleled insights for scientific and technical investigations.
Interchangeable Lens System
IMPORTANT NOTE: Lenses must be factory calibrated. If purchasing additional lenses after the initial camera purchase, the device will need to be sent back to the factory for calibration.
| Lens Model | Focal Length | Field of View | Purchase Link |
|---|---|---|---|
| Standard Lens | 17.7mm | 25°×19° | Included with Camera |
| UT-Z006 Macro Lens | 16.2mm | - | Purchase Macro Lens |
| UT-Z007 Wide-angle Lens | 10.0mm | 44°×34° | Purchase Wide-angle Lens |

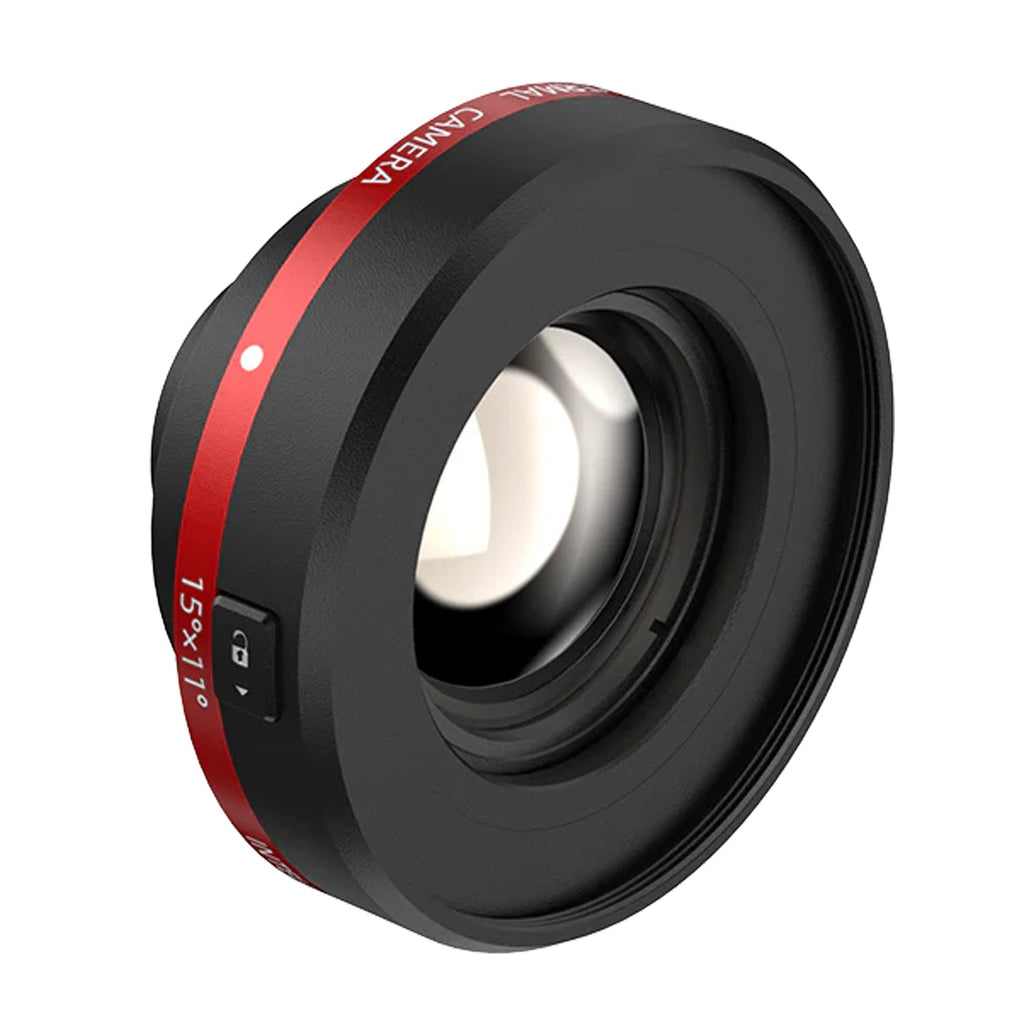

| UT-Z008 Medium Tele Lens | 29.0mm | 15°×11° | Purchase Medium Tele Lens |
| UT-Z009 Tele Lens | 62.9mm | 7°×5° | Purchase Tele Lens |
| UT-Z010 High-Temp Lens | - | 25°×19° | Purchase High-Temp Lens |
Lens Calibration Warning: Each additional lens requires factory calibration. If you purchase a lens after acquiring the camera, the device must be sent back to the factory to ensure proper calibration and optimal performance.
| Parameter | Specification |
|---|---|
| Display | 4.3" LCD Touch (800×480) |
| Infrared Resolution | 640 × 480 pixels |
| Super Resolution | 1280 × 960 pixels |
| Spectral Range | 7.5~14μm |
| Pixel Size | 12μm |
| Frame Rate | 30Hz |
| Thermal Sensitivity (NETD) | ≤40mK |
| Focus Modes | Manual / Automatic / Touch / Continuous |
| Temperature Measurement Range | -40°C to 150°C (-40°F to 302°F) 0°C to 650°C (32°F to 1202°F) 500°C to 2000°C (932°F to 3632°F) with High-Temp Lens |
| Accuracy | ±2°C or ±2% whichever is greater |
| Digital Camera Resolution | 13MP |
| Digital Zoom | 1.1x to 20x |
| Battery | 3350mAh Detachable Li-ion Battery Pack |
| Operating Time | ≥4 hours (with Wi-Fi off) |
| Storage | 64GB Internal + 64GB Micro SD Card |
| Protection Rating | IP54, 2m Drop Resistance |
