Industrial Dissolved Oxygen Meter for Bio-Process Monitoring

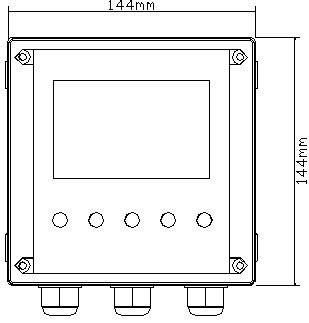

Industrial Dissolved Oxygen Meter for Bio-Process Monitoring Dimensions

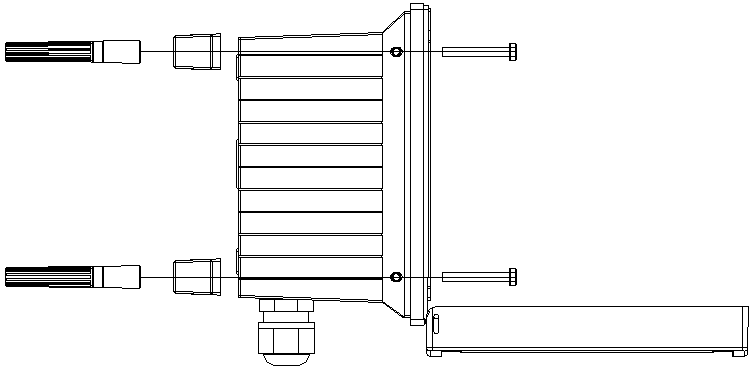

Industrial Dissolved Oxygen Meter for Bio-Process Monitoring Mounting Diagram
Sper Scientific

SSMDO-100

Industrial Dissolved Oxygen Bioprocess Monitor

Share this Product

Description

Industrial Dissolved Oxygen Monitor is ideal for effluent treatment, pure water, boiler water, surface water, electroplating, chemical processing, pharmaceuticals, food production, environmental monitoring, breweries and fermentation applications.

Features a large dot-matrix display with intuitive operation interface designed for ease of use. Built-in data storage, viewing, and export functions with configurable storage cycles. RS485 network connectivity enables remote monitoring across multiple locations. Advanced lightning protection safeguards equipment reliability in demanding environments. Firmware supports online upgrades for simplified maintenance and feature updates. Flexible mounting options accommodate panel, wall or pipe installation to fit your facility layout.

  • Large dot-matrix display with intuitive interface for straightforward operation and clear visibility.

  • Built-in data storage, viewing, and export capabilities with user-configurable storage cycles.

  • RS485 interface enables network monitoring and remote oversight across multiple locations.

  • Advanced lightning protection design ensures reliable equipment performance in industrial environments.

  • Firmware supports online upgrades for convenient maintenance and system enhancements.
Specifications
Measuring Range 0.0 to 200.0% 0.00 to 20.00 ppm; 0.0 to 200.0 ppb
Resolution 0.1 0.01/0.1
Accuracy ±0.2 ±0.02
Temperature Compensation Pt 1000/NTC22K
Temperature Range -10.0 to +130.0°C
Temperature Compensation Range -10.0 to +130.0°C
Temperature Resolution 0.1°C
Temperature Accuracy ±0.2°C
Electrode Current Range -2.0 to +400 nA
Electrode Current Accuracy ±0.005 nA
Polarization -0.675 V
Pressure Range 500 to 9999 mbar
Salinity Range 0.00 to 50.00 ppt
Ambient Temperature Range 0 to +70°C
Storage Temperature -20 to +70°C
Display Backlit dot matrix
DO Current Output 1 Isolated 4–20 mA output; maximum load 500 Ω
Temperature Current Output 2 Isolated 4–20 mA output; maximum load 500 Ω
Current Output Accuracy ±0.05 mA
RS485 Modbus RTU protocol
Baud Rate 9600/19200/38400
Maximum Relay Contact Capacity 5 A at 250 VAC; 5 A at 30 VDC
Cleaning Setting ON: 1–1000 seconds; OFF: 0.1–1000.0 hours
One Multifunction Relay Cleaning/period alarm/error alarm
Relay Delay 0–120 seconds
Data Logging Capacity 500,000
Language Selection English, traditional Chinese and simplified Chinese
Waterproof Grade IP65
Power Supply 90–260 VAC; power consumption <5 W
Installation Panel, wall or pipe installation
Weight 0.85 kg
