Industrial Conductivity / TDS / Salinity / Resistivity Bioprocess Monitor

Share this Product

Description

Real-time measurement of conductivity, total dissolved solids (TDS), salinity and resistivity for wastewater treatment, environmental monitoring, pure water systems, aquaculture and food production processes.

Built for harsh operating conditions while maintaining measurement accuracy across multiple parameters. This monitor is ideal for process control, quality assurance, and regulatory compliance in facilities requiring continuous water and fluid analysis.

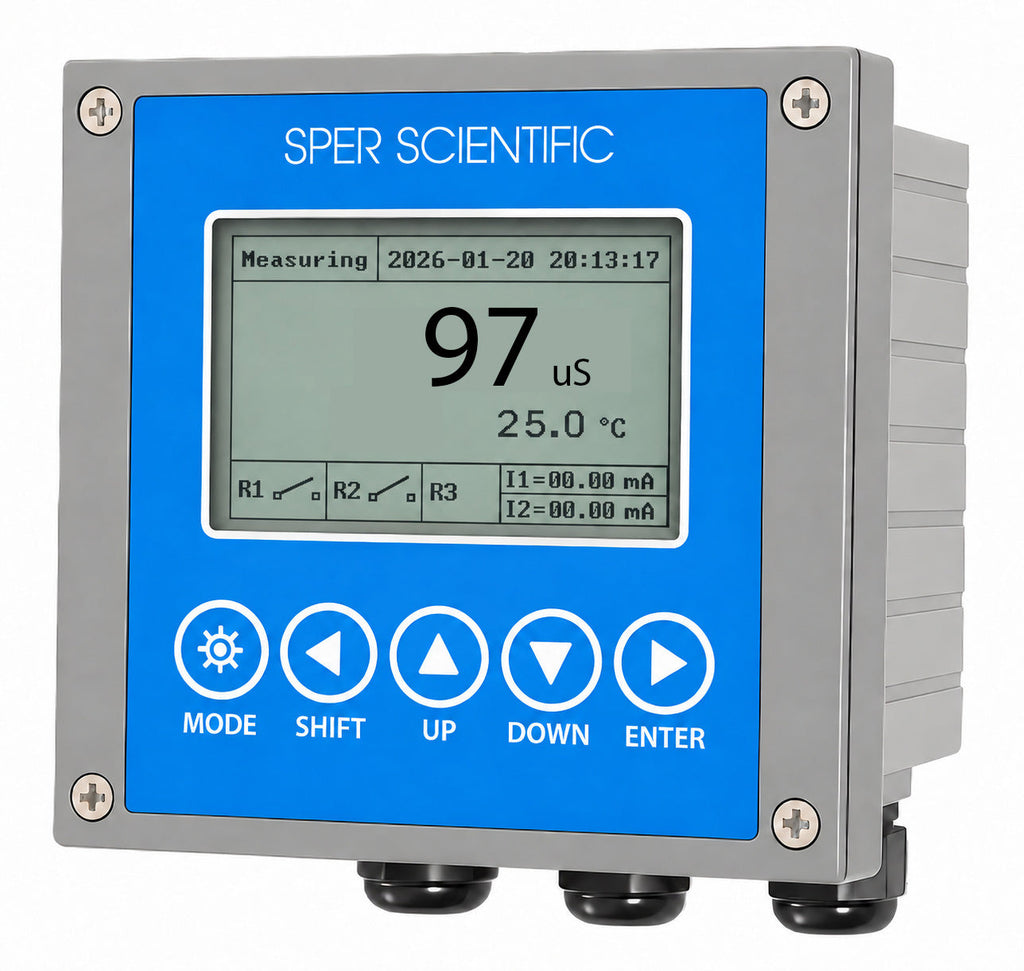

Large dot-matrix display with intuitive operation interface
Data storage, viewing, and export functionality with customizable storage cycles
RS485 network interface for remote monitoring
Lightning protection design for equipment reliability

Specifications

Downloads

Functions	EC	Resistivity	Salinity	TDS
Measuring range	0.00uS-2000mS	0.00-20.00 MΩ-CM	0.00-78.00g/Kg	0-133000ppm
Resolution	0.01/0.1/1	0.01	0.01	1
Accuracy	±1%F.S.	±1%F.S.	±1%F.S.	±1%F.S.
Temp. compensation	Pt 1000/NTC30K
Temp. range	-10.0 to +130.0℃
Temp. compensation range	-10.0 to +130.0℃
Temp. resolution	0.1℃
Temp. accuracy	±0.2℃
Cell constant	0.001 to 20.000
Ambient temperature range	0 to +70℃
Storage temp.	-20 to +70℃
Display	Back light, dot matrix
EC current output1	Isolated, 4 to 20mA output , max. load 500Ω
Temp. current output 2	Isolated, 4 to 20mA output , max. load 500Ω
Current output accuracy	±0.05 mA
RS485	Mod bus RTU protocol
Baud rate	9600/19200/38400
Maximum relay contacts capacity	5A/250VAC,5A/30VDC
Cleaning setting	ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours
One multi function relay	clean/period alarm/error alarm
Relay delay	0-120 seconds
Data logging capacity	500,000
Language selection	English/traditional Chinese/simplified Chinese
Waterproof grade	IP65
Power supply	From 90 to 260 VAC, power consumption < 5 watts
Installation	panel/wall/pipe installation
Weight	0.85Kg
