HN-200 Series Leeb Hardness Tester - Optional Probes
Share this Product
|

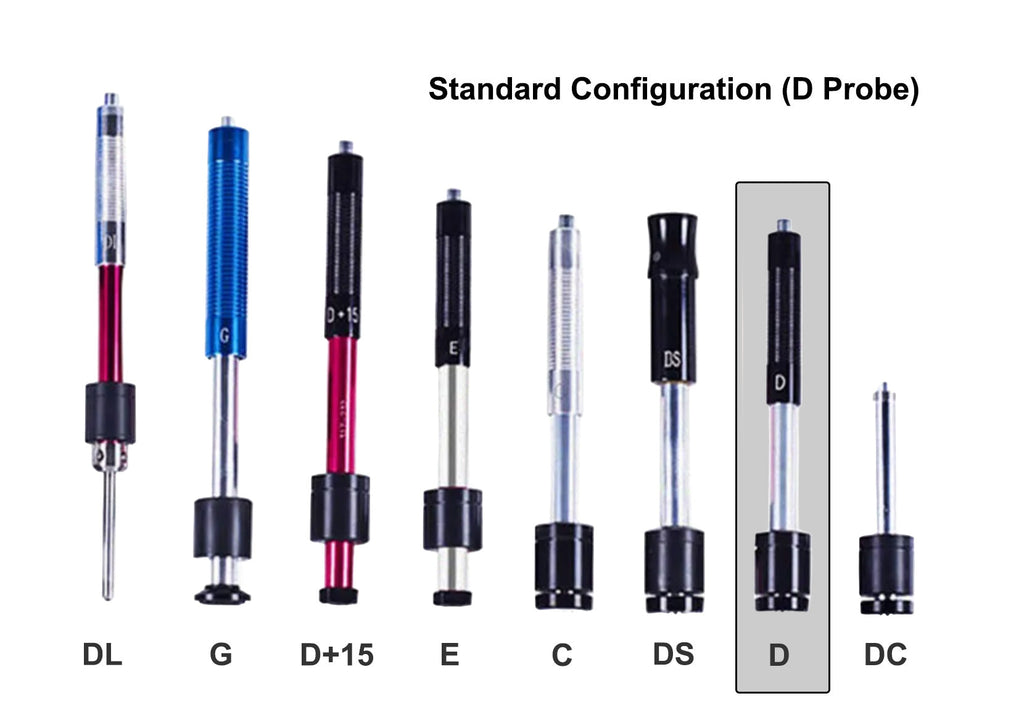

Probe Type |
Applicable Scenarios |
Indication Error and |
|

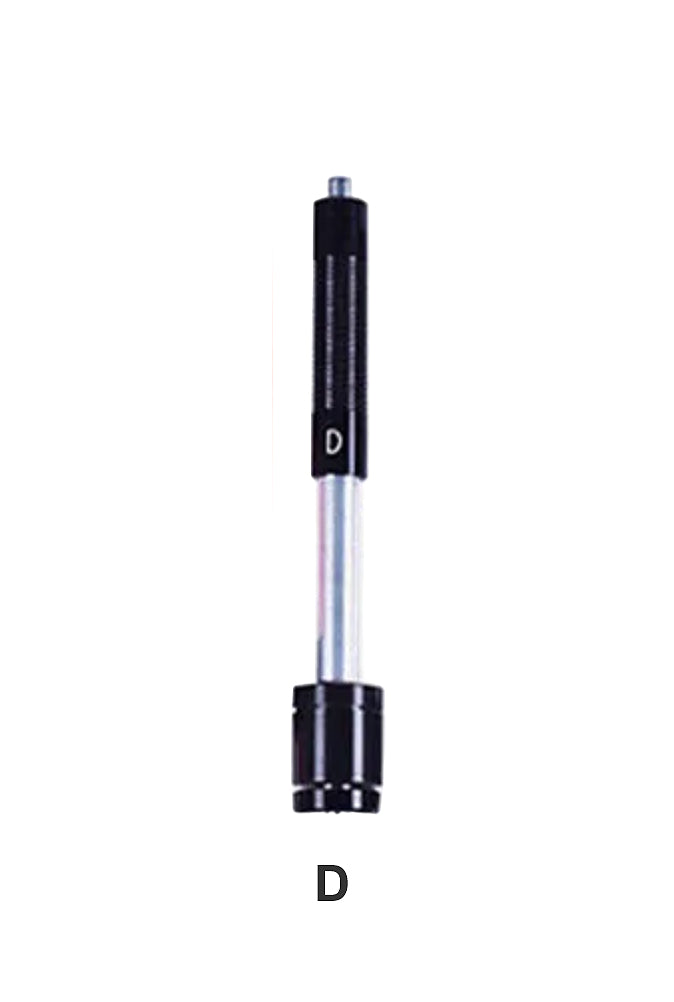

D |
Standard configuration for routine measurements. |
760±30HLD,±6HLD 530±40HLD,±10HLD |
|

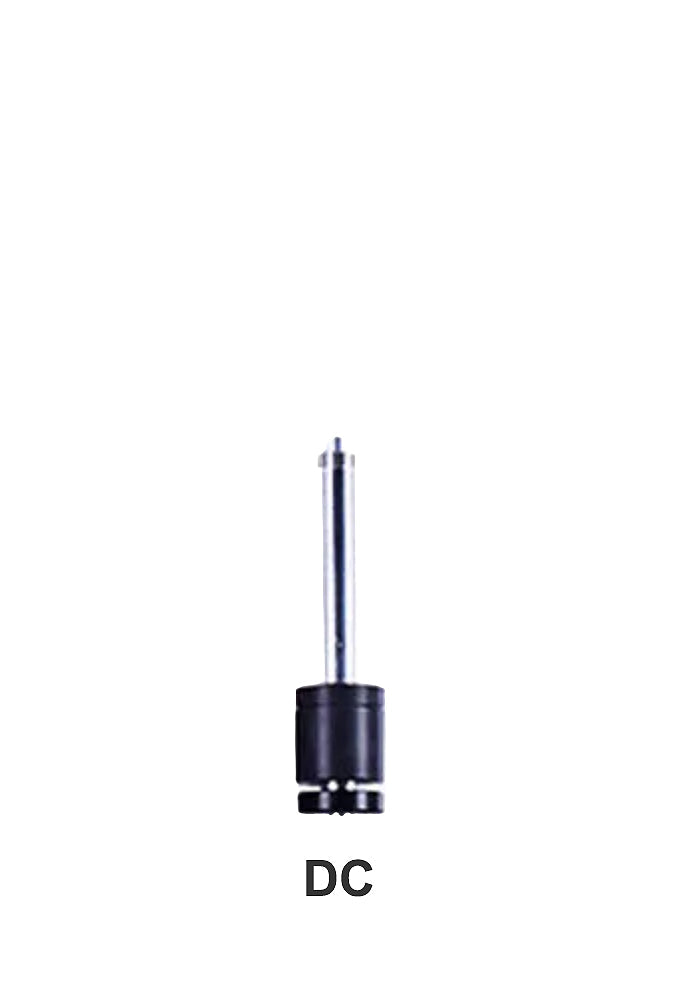

DC |
For precise measurement of the inner walls of holes/cylinders. Suitable for measuring the inner side of the pipe wall. |
760±30HLDC,±6HLDC 530±40HLDC,±10HLDC |
|

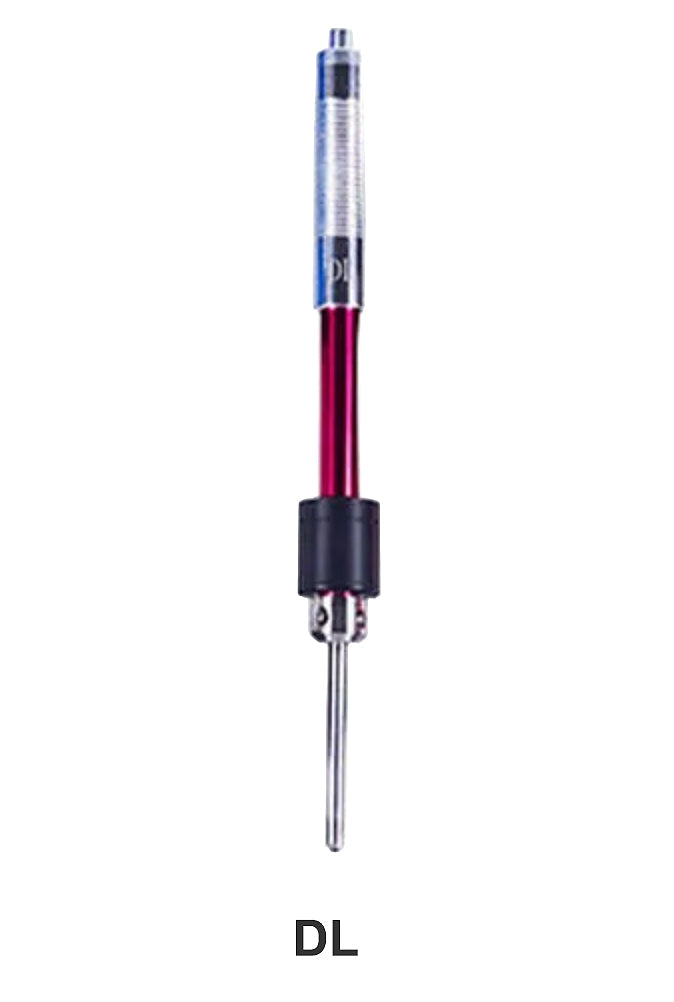

DL |
Extended nozzle for measurements in narrow slots and deep holes. Suitable for measuring slender narrow slots or holes. |
878±30HLDL,±12HLDL 736±40HLDL,±12HLDL |
|

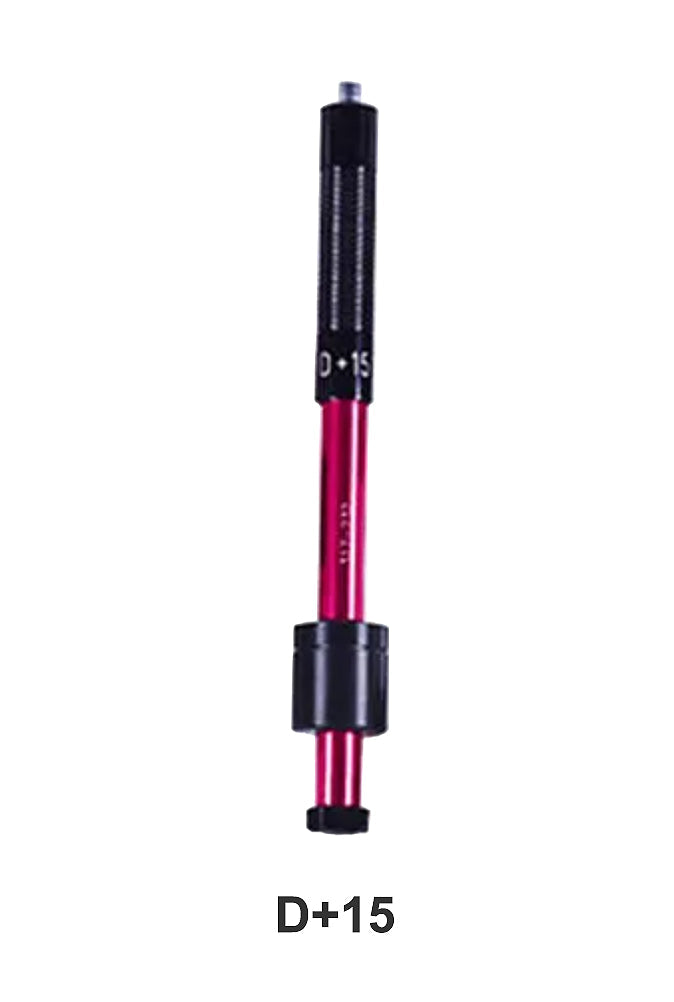

D+15 |
For measuring recessed areas, such as turbine disc bores. Suitable for surfaces with grooves or indentations. |
766±30HLD+15,±12HLD+15 544±40HLD+15,±12HLD+15 |
|

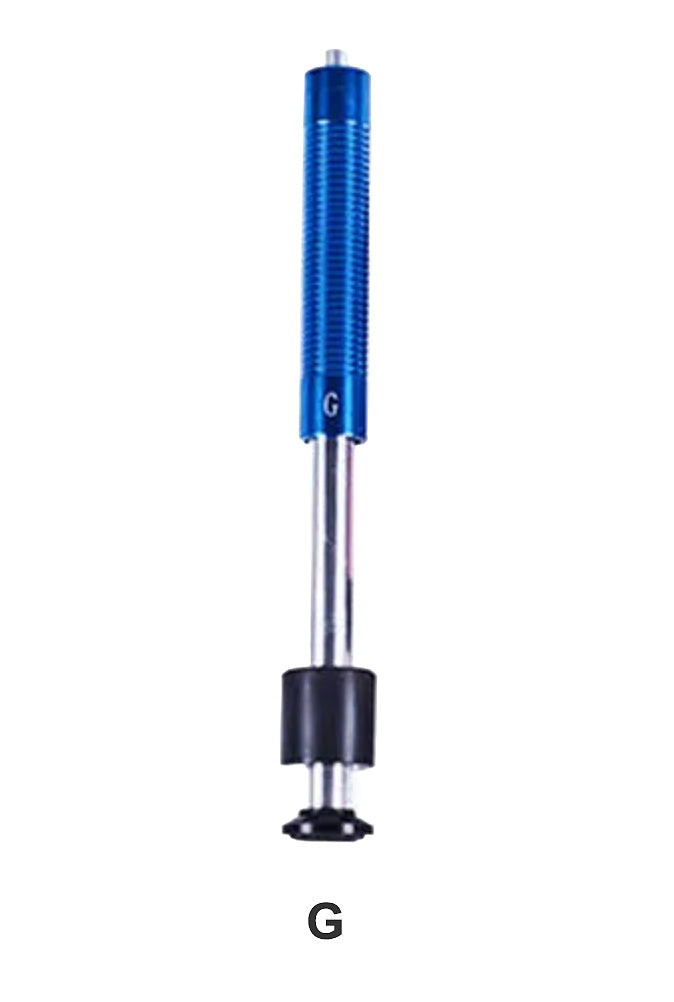

G |
For large, rough castings and forgings, rolls and ship castings. Suitable for heavy and rough surface castings and forgings |
590±40HLG，±12HLG 500±40HLG，±12HLG |
|

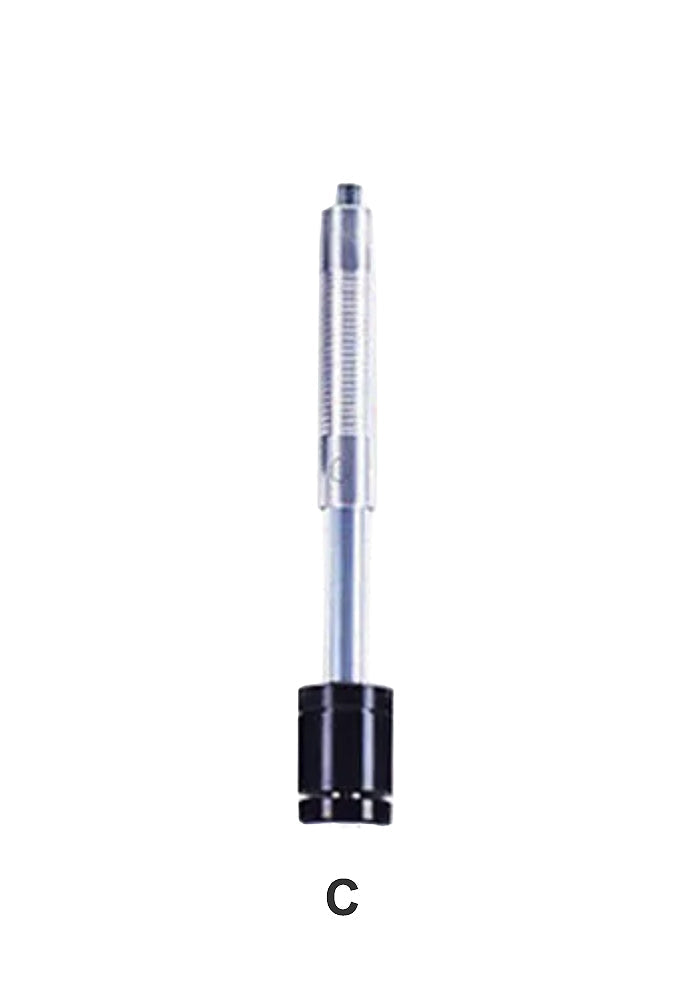

C |
For low-force, non-destructive testing of thin parts, small parts and surface-hardened layers. Suitable for small and lightweight components and surface hardening layers |
822±30HLC，±12HLC 590±40HLC，±12HLC |
