This high-temperature pH sensor supports online pH and temperature monitoring in processes that use clean-in-place and sterilize-in-place cycles.

Designed for fermentation, biotechnology, pharmaceutical manufacturing and food processing, the sensor measures 0–14 pH and operates at temperatures up to 130 °C. A double-junction electrode design supports industrial measurement through the temperature changes associated with cleaning and sterilization.

The VP connection works with compatible VP6 cabling, while the PG13.5 process thread supports installation with a suitable holder or sheath. Choose a T or Y configuration in 120, 150, 225 or 325 mm electrode lengths to match your process installation.

Features

• Online pH and temperature monitoring for high-temperature processes
• Suitable for applications using CIP and SIP procedures
• VP electrical connection and PG13.5 process thread
• 12 mm electrode diameter
• Four electrode lengths and two configuration choices
• Compatible with suitable 316L stainless steel sheaths

Please contact us for the product datasheet and installation guidance.

Options

Select the T or Y configuration and required electrode length. Contact us for help matching the reference system and temperature compensation element to your analyzer and process.

Accessories

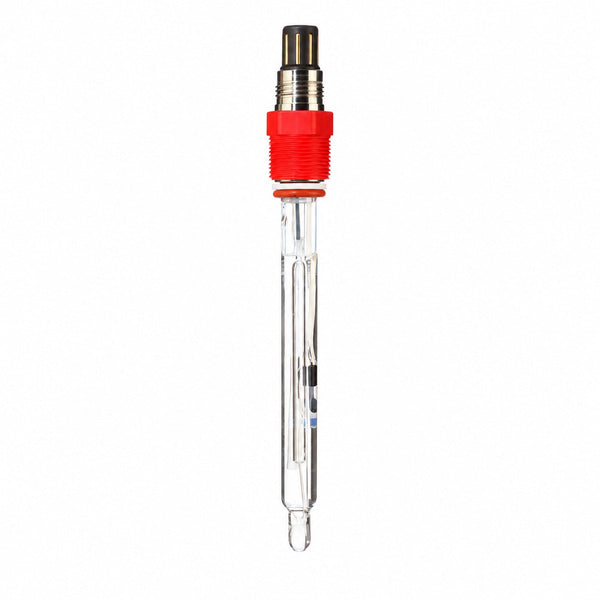

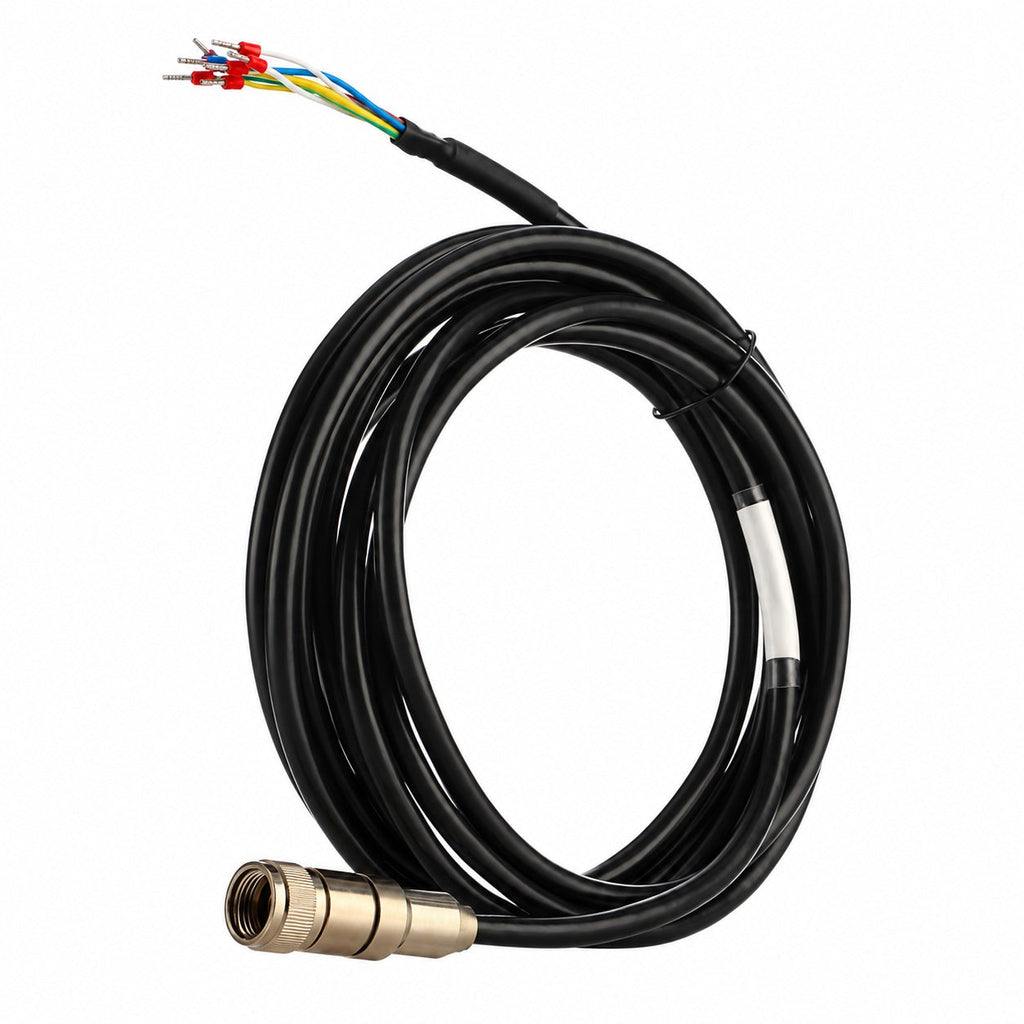

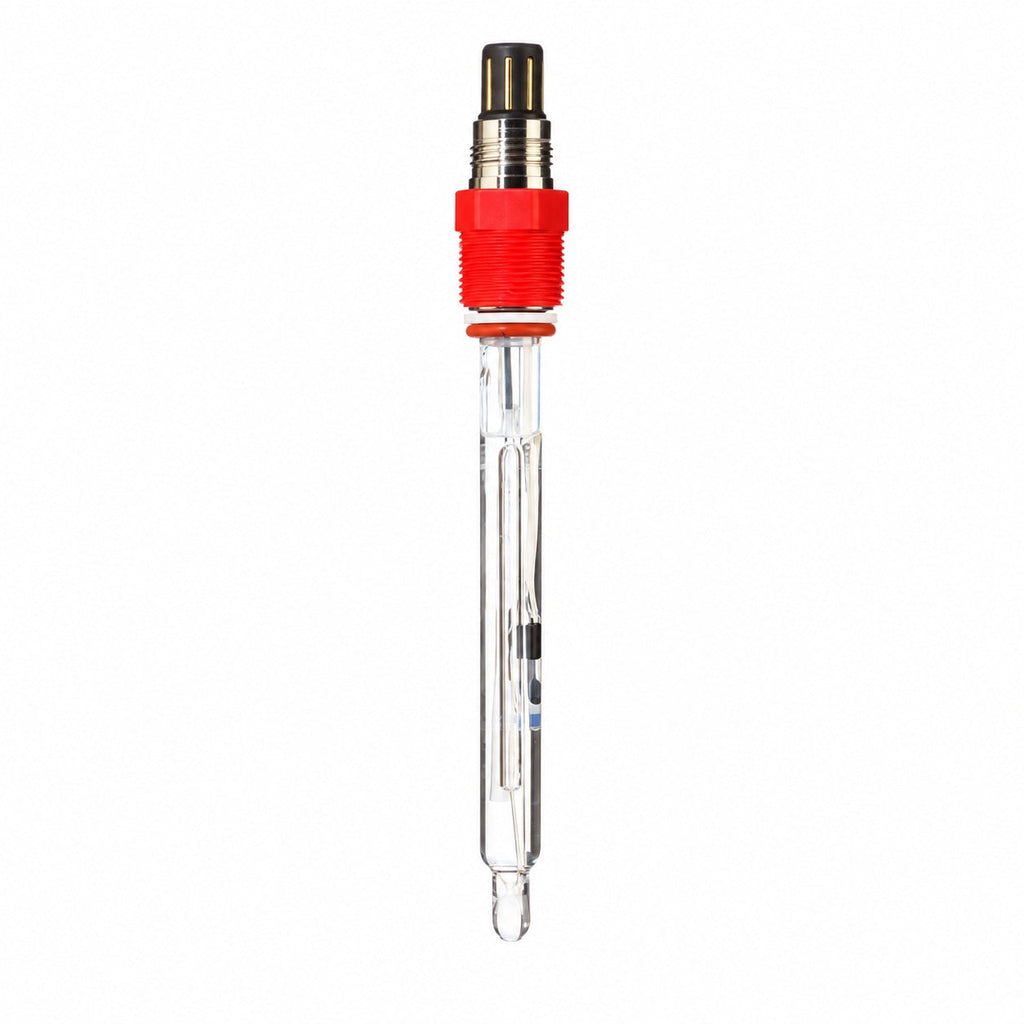

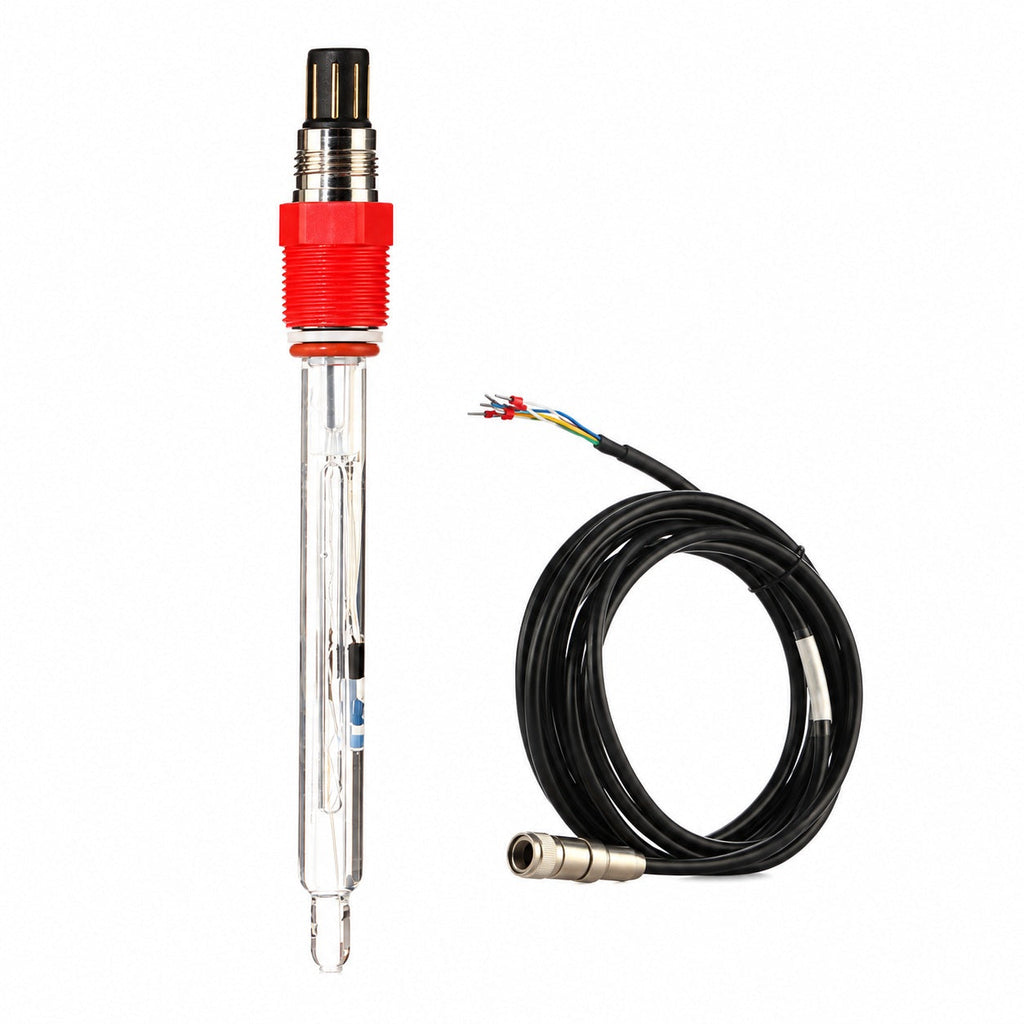

VP6-compatible cabling and suitable 316L stainless steel sheaths support analyzer and process connections. Photos show a representative electrode length and compatible cable. Confirm cable and mounting hardware requirements with your order.

What is the maximum operating temperature?
The specified operating range is 0–130 °C.

Which connector does this listing use?
All eight variants use a VP electrical connection.

Which electrode lengths are available?
Choose 120, 150, 225 or 325 mm in either T or Y configuration.

Where can this sensor be used?
Typical applications include fermentation vessels, bioreactors, pharmaceutical production and food or beverage processing.
