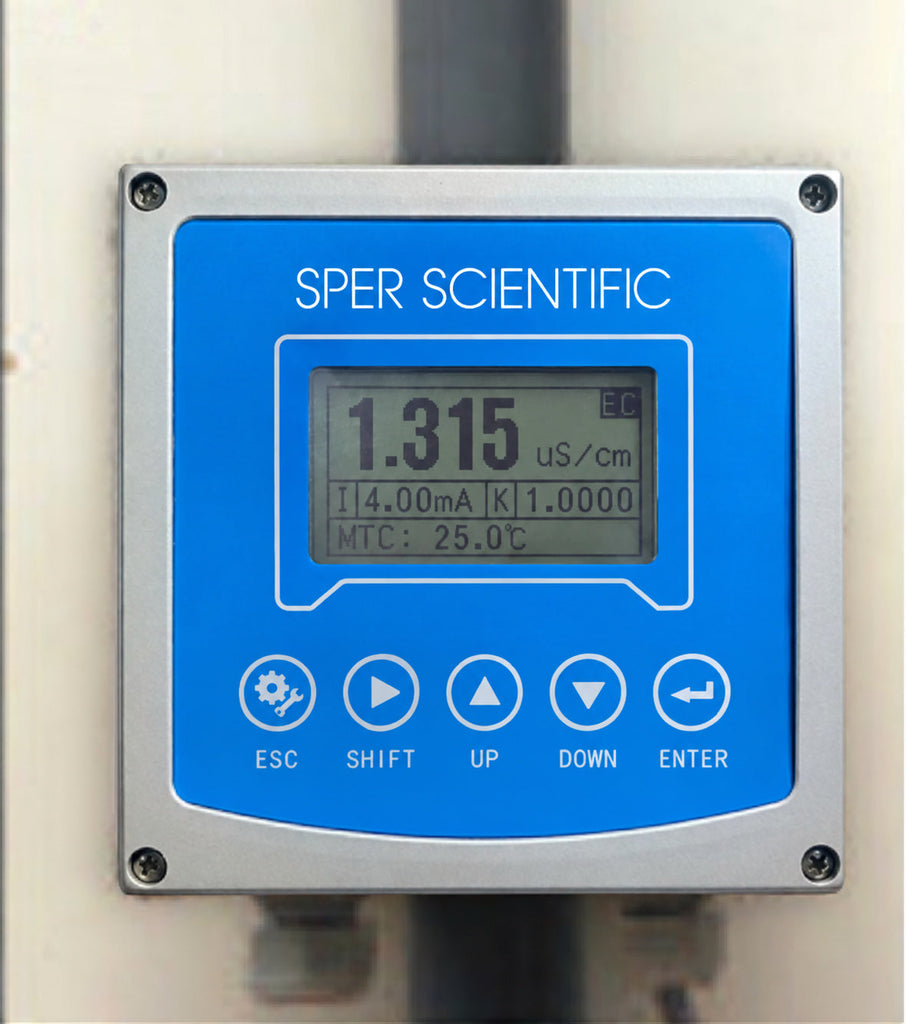

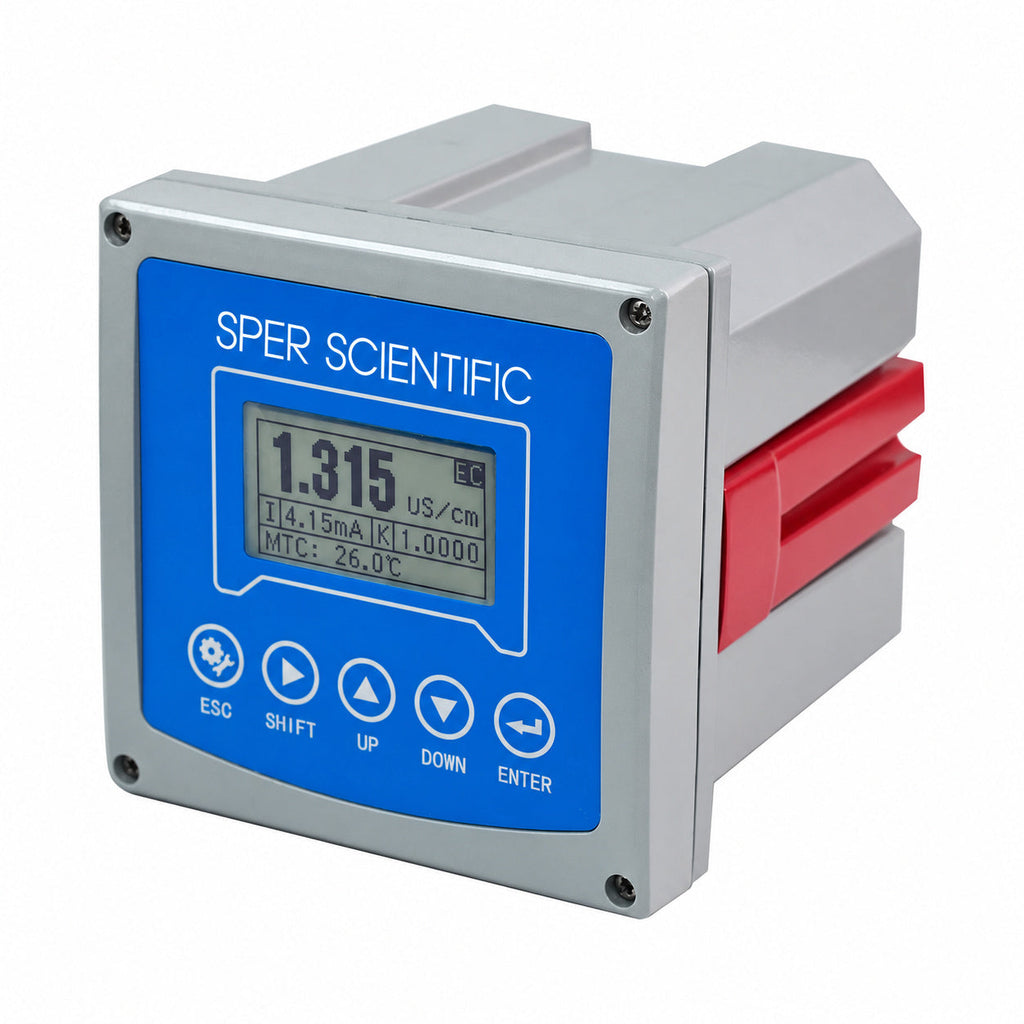

The Sper Scientific 870003E Two-Wire Explosion-Proof Online Conductivity Analyzer supports continuous conductivity, salinity, TDS, resistivity and temperature monitoring with a compatible analog sensor.
The Sper Scientific 870003E 2-Wire Explosion-Proof Online Electrical Conductivity Analyzer provides continuous monitoring of conductivity, salinity, total dissolved solids (TDS), resistivity and temperature in water and process solutions.
Used with a compatible analog conductivity sensor, it is suitable for wastewater treatment, power generation, chemical processing, pharmaceutical manufacturing, food processing and drinking water applications. A two-wire 4–20 mA output connects the analyzer to process monitoring equipment, while low power consumption supports continuous operation in industrial installations.
Construction
The analyzer features a die-cast aluminum housing with an IP65 rating for protection against dust and water. Its construction supports use in demanding industrial environments.
Features
- Continuous monitoring of conductivity, salinity, TDS, resistivity and temperature
- Compatible with analog conductivity sensors
- Two-wire 4–20 mA output
- Low power consumption
- Die-cast aluminum housing with IP65 protection
-
Explosion-proof design with manufacturer-listed Ex ia IIC T6 Ga marking
Specifications
| Part number |
870003E |
| Conductivity, K = 0.01 |
0.01–20 µS/cm |
| Conductivity, K = 0.1 |
0.1–200 µS/cm |
| Conductivity, K = 1.0 |
1–2,000 µS/cm |
| Conductivity, K = 10.0 |
10–20,000 µS/cm |
| Salinity |
0.00–80.00 ppt |
| TDS |
0–130,000 mg/L (ppm) |
| Resistivity |
0–20 MΩ·cm |
| Temperature inputs / ranges |
Pt100, Pt1000 or NTC10k: −40 to +200°C; NTC2.252k: −30 to +150°C |
| Accuracy |
±0.5% F.S.; temperature ±0.3°C |
| Output |
One two-wire 4–20 mA output |
| Output error |
≤±0.3% F.S. or ±0.05 mA, whichever is greater |
| Power |
18–30 VDC; 0.66 W |
| Housing |
Die-cast aluminum; IP65 |
| Dimensions / weight |
144 × 144 × 147 mm; 1.35 kg |
| Operating environment |
−20 to +60°C; ≤95% RH, noncondensing |
| Storage temperature |
−40 to +70°C |
