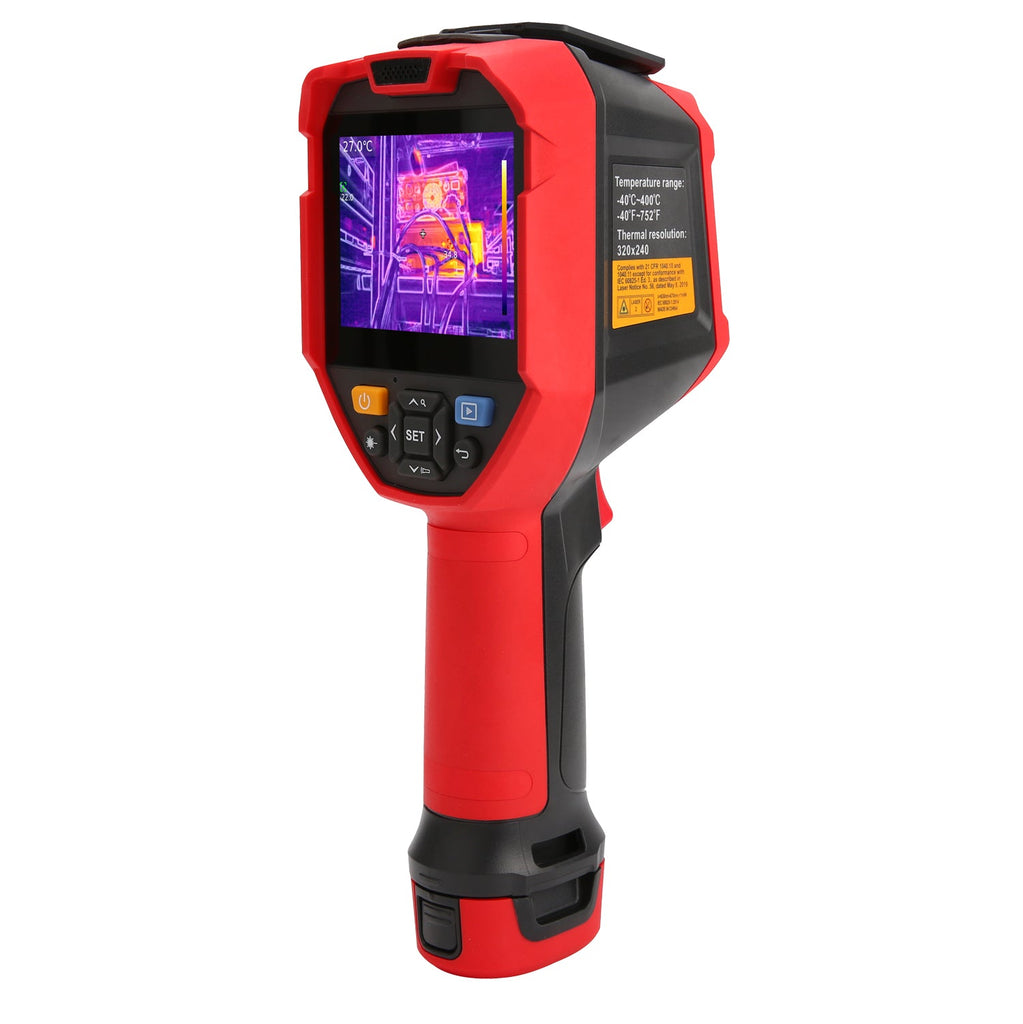

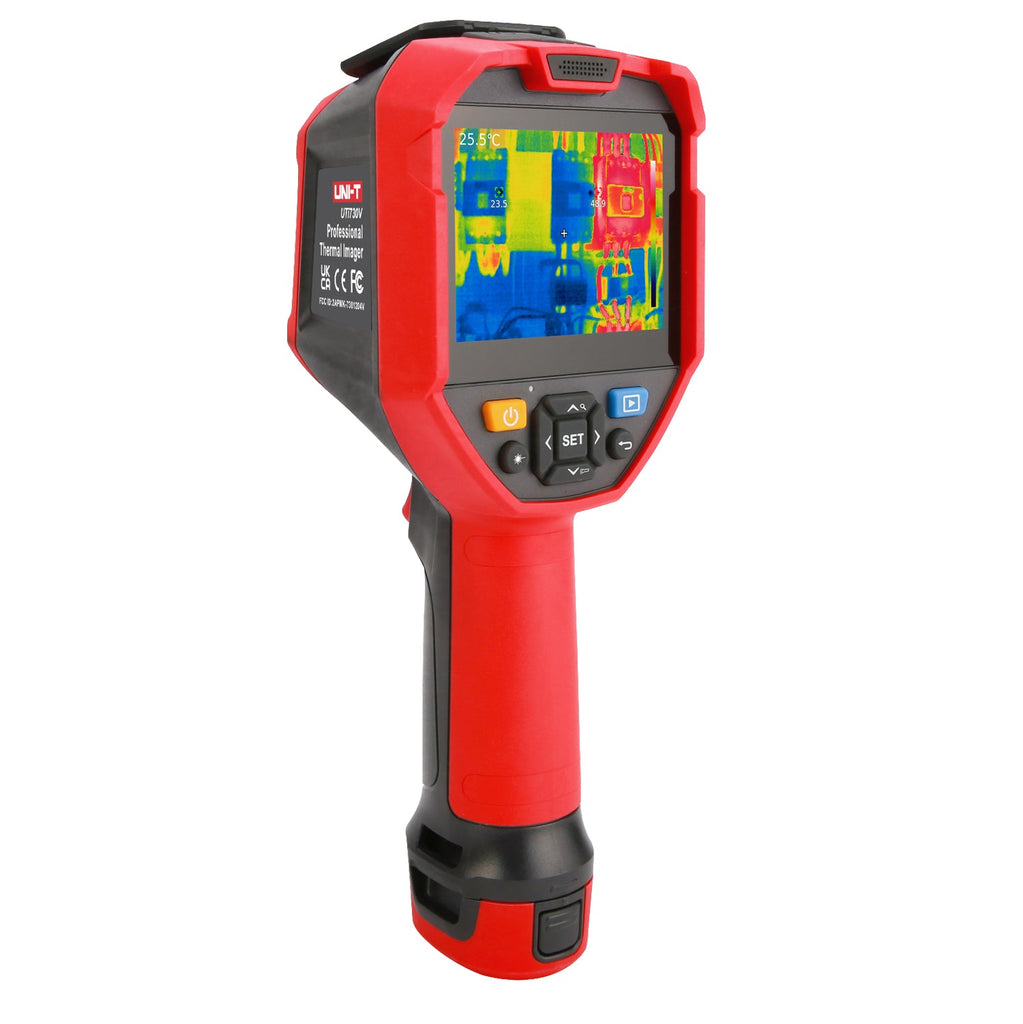

A professional-grade enhanced thermal imaging camera designed for reliable non-destructive inspection across industrial, electrical, mechanical and building applications.

Featuring a high-definition 320×240 infrared resolution, intuitive 3.5" touchscreen interface, and comprehensive analysis capabilities, this advanced thermal camera delivers exceptional performance for maintenance professionals who require accurate temperature visualization and detailed thermal analysis in demanding environments.

• High Resolution Thermal Imaging: 320×240 IR resolution (76,800 pixels) for detailed thermal visualization
• Superior Thermal Sensitivity: ≤65mK @ 30°C for detection of subtle temperature variations
• Wide Temperature Range: -40°C to 400°C with ±2°C or ±2% accuracy
• Focus-Free System: Automatic focus for quick and clear imaging without manual adjustment
• Large Touchscreen Display: 3.5" IPS touch screen (640×480) for intuitive operation
• Integrated Visual Camera: 5MP digital camera for clear visual documentation
• Multiple Viewing Modes: Thermal, visual, picture-in-picture, and T-Mix fusion display options
• Comprehensive Analysis Tools: 5 spot measurements, line profiling, and multiple area analysis tools
• Laser Distance Measurement: Integrated laser for accurate distance measurements up to 30m
• Wi-Fi Connectivity: Live streaming capability for real-time sharing and remote analysis
• Rugged Design: IP54 rated with 2-meter drop protection for durability in industrial environments
• Long Battery Life: 5200mAh detachable Li-ion battery for 4+ hours of continuous operation

Professional Applications

Electrical Inspection

Quickly identify overheating connections, load imbalances, and potential failure points in electrical panels and distribution systems. The UTi730V's high sensitivity makes it ideal for detecting hot spots in electrical components before they cause failures or safety hazards, while the built-in laser distance measurement allows for safe inspection from a distance.

Industrial Maintenance

Monitor mechanical equipment for signs of excessive friction, misalignment, or imminent failure. The camera's high resolution and multiple measurement tools enable precise identification of temperature anomalies in motors, pumps, bearings, and other critical equipment, supporting effective preventive maintenance programs and reducing costly downtime.

Building Diagnostics

Efficiently detect energy loss, moisture intrusion, and structural issues in buildings. The UTi730V reveals insulation deficiencies, thermal bridges, air leakage paths, and hidden moisture damage with exceptional clarity, making it an invaluable tool for energy audits, building envelope assessments, and HVAC system evaluations.

Power Distribution Cabinets

Inspect power distribution equipment safely and identify potential issues before failure occurs. Traditional inspection methods can be complex and potentially damaging, but the UTi730V allows for non-contact thermal analysis that quickly locates abnormalities and enables preventive maintenance to ensure continuous operation and safety.

Pipeline Inspection

Detect leakage and insulation issues in pipeline systems without invasive procedures. The camera's thermal imaging capabilities reveal temperature variations that indicate leaks or insulation failures, allowing for timely identification and repair before significant damage occurs to personnel, equipment, or the environment.

Why Choose the UNI-T UTi730V?

Superior Image Quality

The UTi730V features a high-resolution 320×240 infrared detector that produces detailed thermal images for confident problem identification. This enhanced resolution reveals subtle temperature patterns that would be missed with lower-resolution cameras, enabling more accurate diagnostics and more effective maintenance decisions.

Innovative T-Mix Fusion Technology

The auto-adaptive dual-wave image fusion algorithm delivers superior clarity by intelligently combining thermal and visual images. This technology automatically adapts to different shooting distances with one-click operation, showing critical details from the visual image overlaid on the thermal image for enhanced interpretation and analysis.

Comprehensive Measurement Tools

Beyond basic temperature readings, the UTi730V offers multiple analysis tools including 5-point measurements, line profiling, area analysis, isotherm detection, and high/low temperature tracking. These advanced features provide the detailed insights needed for thorough thermal analysis and professional diagnosis across applications.

Integrated Laser Distance Measurement

The built-in laser distance measurement function allows for safe inspection from up to 30 meters away, making it ideal for examining hazardous or difficult-to-reach areas. This feature enhances safety while ensuring accurate distance information for proper thermal readings and documentation.

Complete Documentation System

Capture and document findings with multiple options including still images, video recording, voice annotations, and Wi-Fi live streaming. The UTi730V's PC and mobile app connectivity enables comprehensive analysis, reporting, and data management, supporting professional documentation and trend monitoring for predictive maintenance.

Intelligent Alarm System

The triple-mode alarm system (LCD animation, LED flashlight, and audible buzzer) provides immediate notification when temperatures exceed preset thresholds. This feature is especially valuable for safety-critical inspections and automated monitoring, ensuring timely awareness of potential issues.

Package Contents

• UTi730V Thermal Imaging Camera
• Detachable 5200mAh Li-ion Battery Pack (2×)
• Type-C USB Cable
• 32GB Micro SD Card
• Quick Start Guide
• Documents Download Operation Guide
• Hard Carrying Case

Customer Testimonials

"The UTi730V has transformed our preventive maintenance program. The image quality is exceptional for a camera in this price range, and the touch screen interface makes it incredibly easy to use even in challenging environments. The laser distance measurement is a game-changer for safely inspecting high-voltage equipment." - Robert M., Electrical Maintenance Supervisor

"As a building inspector, I need reliable equipment that delivers consistent results. The UTi730V provides the detail and sensitivity I need to identify subtle thermal issues in building envelopes. The T-Mix fusion feature is particularly helpful when explaining findings to clients, as it clearly shows both thermal patterns and visual details in one image." - Sarah K., Building Performance Consultant
