DCM301 | AC Clamp Meter with Multimeter Functionality

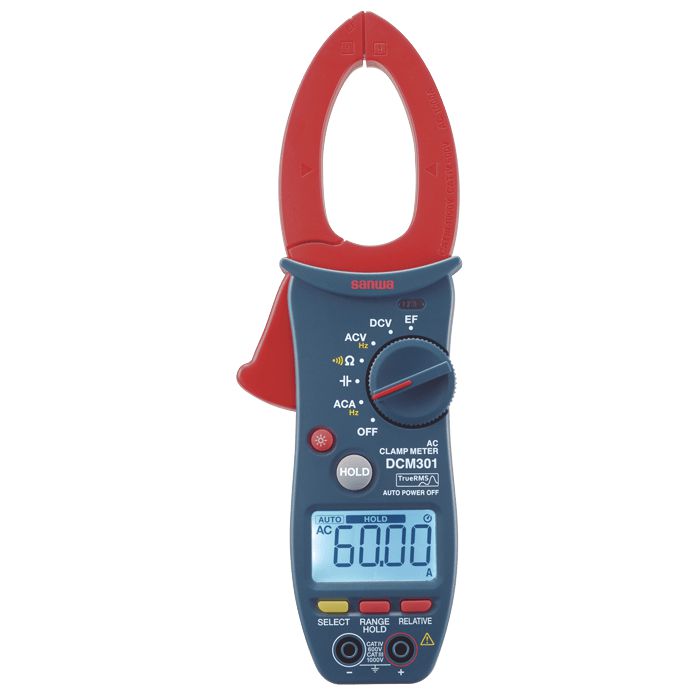

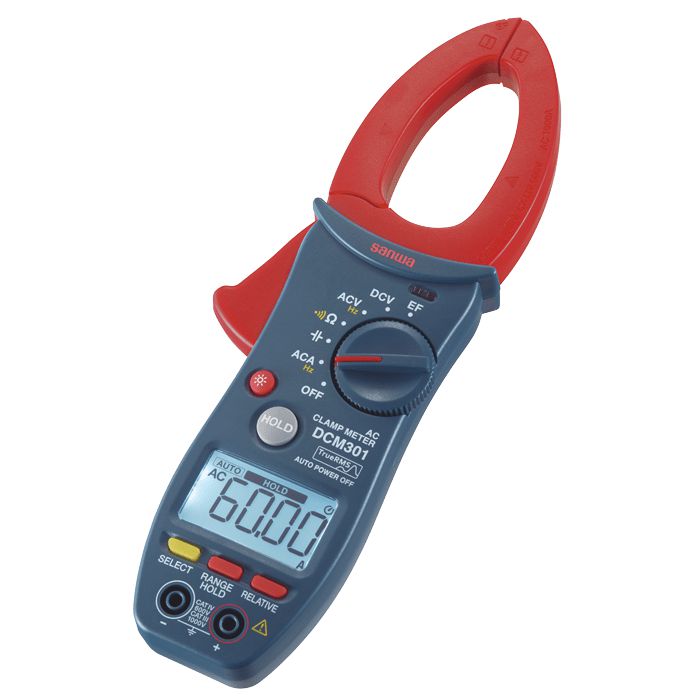

Introducing the Sanwa DCM301 Clamp Meter, a versatile and indispensable tool for professionals and DIY enthusiasts alike.

This compact and feature-rich device is designed to accurately measure electrical currents without the need for direct contact with live wires, ensuring both safety and convenience. Equipped with advanced True RMS technology, the DCM301 delivers precise readings even in noisy electrical environments, making it ideal for troubleshooting electrical systems in residential, commercial, and industrial settings.

With its easy-to-read, backlit LCD display and intuitive interface, the Sanwa DCM301 Clamp Meter allows users to measure AC/DC current, voltage, resistance, and continuity. Its innovative clamp design enables quick and hassle-free measurements, while the hold function freezes the displayed value for quick reference. The meter also boasts a built-in non-contact voltage detector, providing an added layer of safety by alerting users to the presence of voltage before making measurements. Compact, reliable, and packed with essential features, the Sanwa DCM301 Clamp Meter is the go-to choice for accurate and efficient electrical measurements in any application.

Meter includes one set of test leads, carrying case and instruction manual.

  • The CT shape makes it easier to clamp cable in crowded spaces.
  • An electric field (EF) function is incorporated in the tip of the CT to enable detection of about AC 90V or more.
  • Clamp opening size: 34mm
  • Large, easy-to -press HOLD button.
  • Equipped with LED light to illuminate the measurement target.
  • Continuity check buzzer
  • Auto power off (30min)
  • Low batter power indication

    Specifications



    Function Measuring Range Accuracy Resolution
    ACA 60.00/600.0/1000A ±(2.5%+5) 0.01A
    ACV 6.000/60.00/600.0/1000V ±(1.5%+3) 0.001V
    DCV 6.000/60.00/600.0/1000V ±(1%+3) 0.001V
    Resistance 6.000k/60.00k/600.0k/6.000M/60.00MΩ ±(2%+5) 0.001kΩ
    Frequency ACV 10Hz-10kHz, ACA 10Hz-2kHz ±(1%+5) 0.1Hz
    Capacitance 60.00n/600.0n/6.000µ/60.00µ/600.0µ/6.000m/60.00mF ±(4%+3) 0.01nF
    Continuity Buzzer sounds below 30Ω Open voltage: approx. 1V or less
    Detection of Electricity Buzzer sounds, "-" is shown on LCD, and LED flickers
    Detects ACV and EF of approx. 90V or more (50/60Hz)
    Sampling rate Approx. 3 times/sec.
    Bandwidth ACA 45-400Hz ACV 45Hz-1kHz
    Display 6000/9999(Hz function)

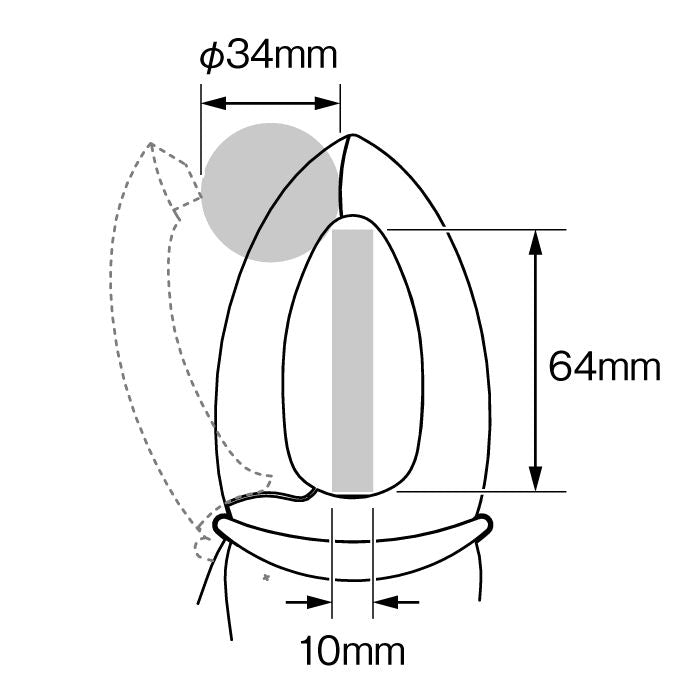

    Clamp diameter/Conductor size Φ34mm/10×64mm
    Battery LR03×3
    Battery life Approx. 200 hrs.
    Size/Mass H252×W85×D40mm/Approx. 360g
    Safety standards IEC61010 CAT.â…£600V/CAT.â…¢1000V
