DCL31DR | Mini AC/DC Clamp Meter with True RMS and Peak Hold

Share this Product

Description

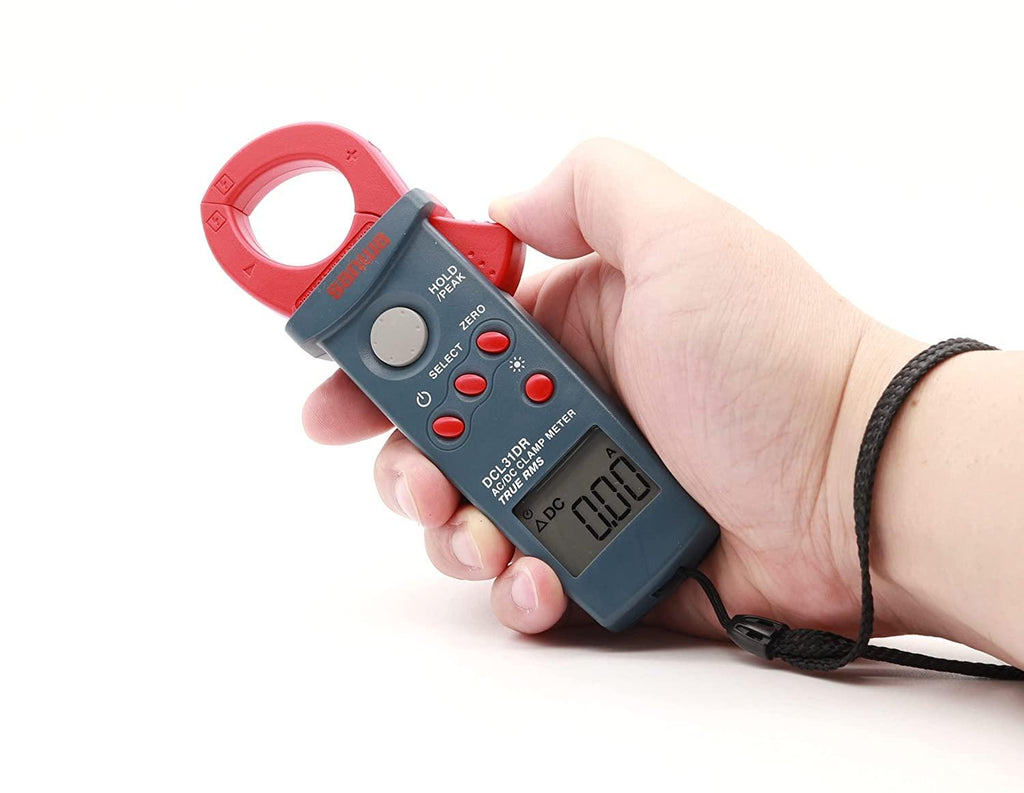

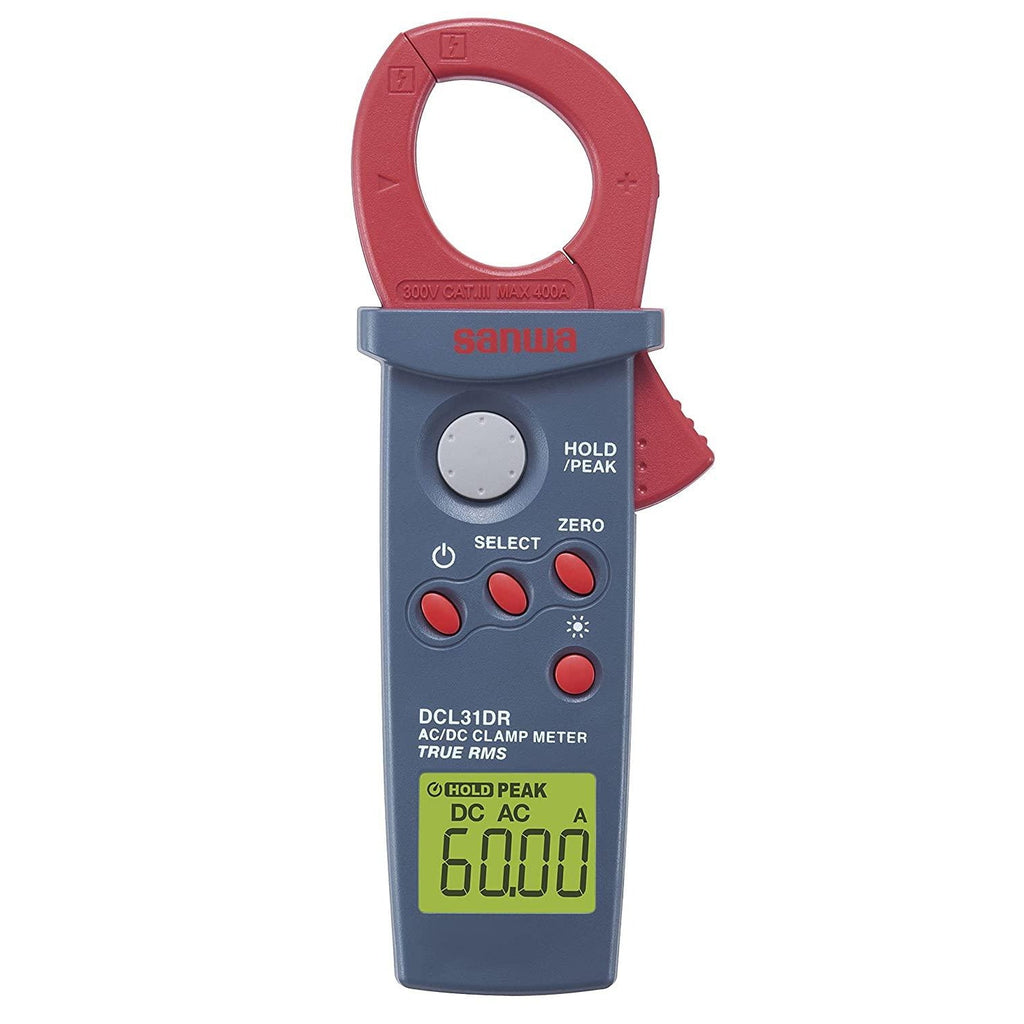

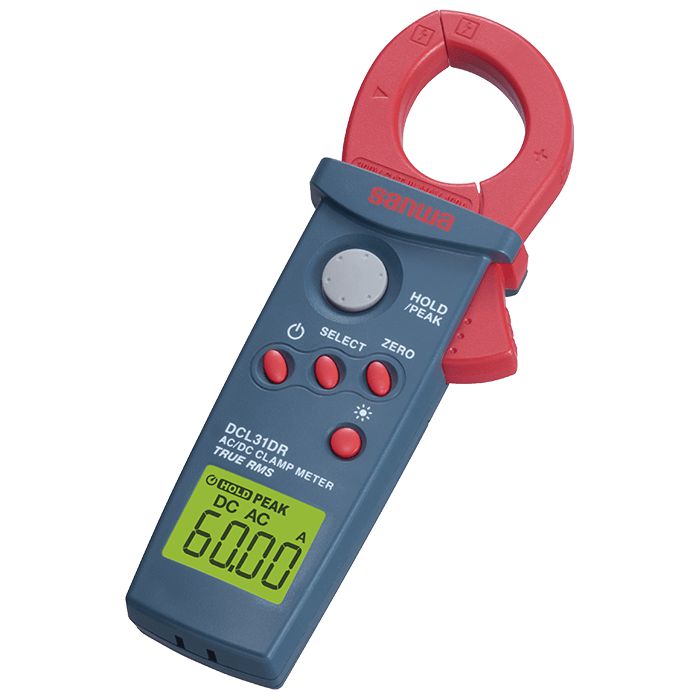

The Sanwa DCL31DR is a compact DC/AC digital clamp meter with an RMS response feature.

The DCL31DR can measure a current of up to 400 Amperes in both AC and DC modes with an accuracy of 3% when in AC mode. The DCL31DR offers many features such as a 6000-count large LCD display with a backlight, a Data Hold function for pausing the measurement on screen, a Peak Hold function for detecting the peak value of AC current to pausing it, and a Zero setting feature that allows users to remove DC offsets before measuring DC currents.

This device allows you to measure the current range specified in IEC61010-1 CAT.

Specifications

Function	Range	Accuracy	Resolution
DCA	60/400A	±(2.0%+5)	0.01A
ACA	60/400A	±(2.0%+5)	0.01A

Sampling rate	2 times/sec.
Bandwidth	45-400Hz
Display	6000

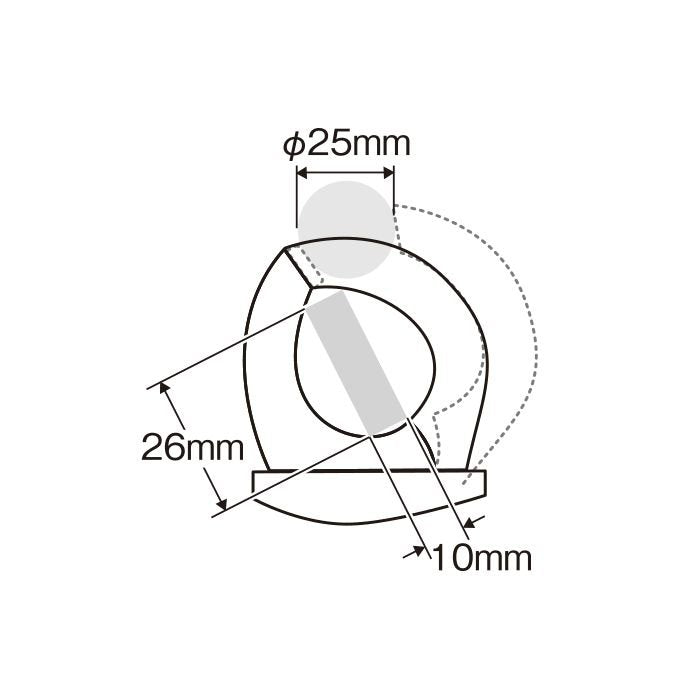

Clamp diameter/Conductor size	25mm/10x26mm
Battery	LR03x2
Battery life	Approx. 35 hrs.
Size/Mass	H145xW54xD31mm / Approx. 120g
Safety standards	IEC61010 CAT.III 300V
	*In the peak hold mode, the measuring range is fixed at 400A.
